MSI MS-99A1 - COM Port Power Jumper: JCOMP1, JCOMP2, JCOMP3; BIOS Select Jumper: JBIOS1; LVDS Power Jumper: JVDD1; Inverter Power Jumper: JINV1

2-15
Hardware Setup MS-99A1

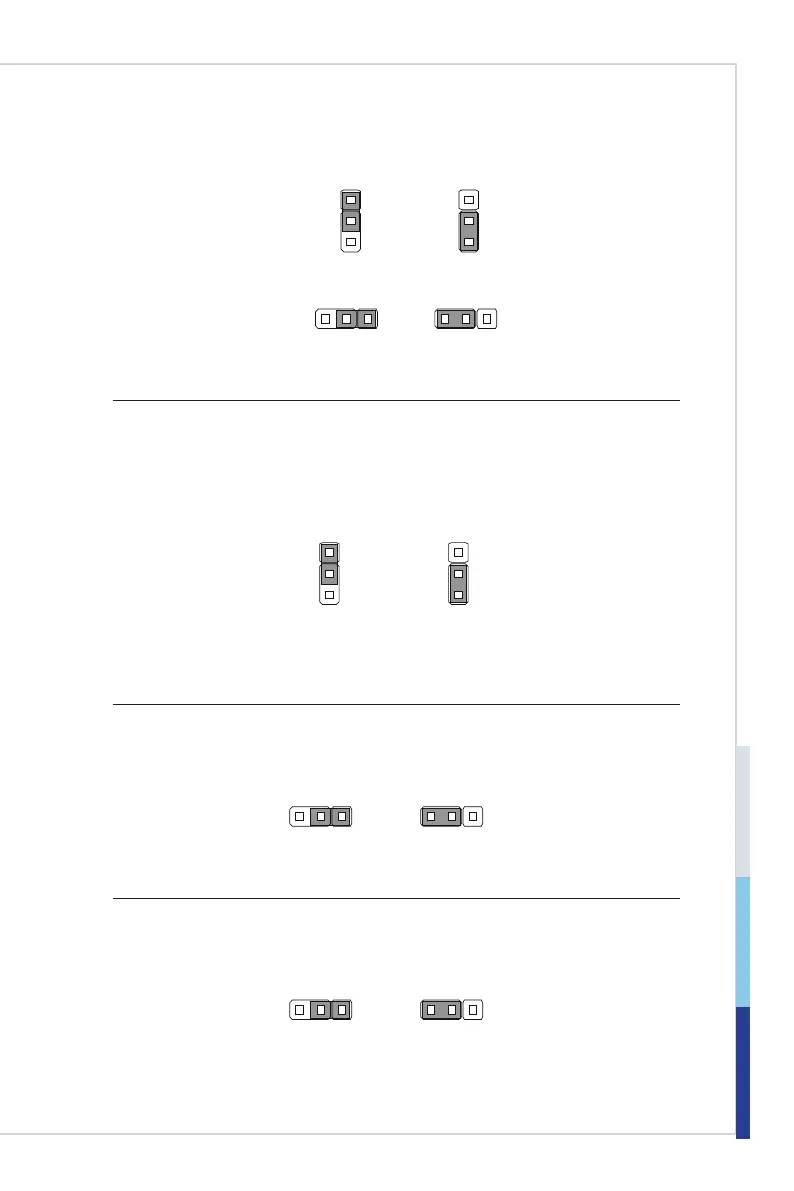

COM Port Power Jumper: JCOMP1, JCOMP2, JCOMP3
These jumpers specify the operation voltage of the onboard serial ports.
1
5V (Default)
1
+12V
+12V
1
5V (Default)
1
BIOS Select Jumper: JBIOS1
This jumper is used to enable/disable the BIOS ash. When you intend to update
the BIOS code, short connect pin#2-3 rst. Under normal operation, we suggest
that you enable the BIOS ash protection by short connecting pin#1-2 to protect
the system BIOS from virus infection.
1 1
Enable
Carrier Board
BIOS
Enable
Module Board
BIOS (Default)
LVDS Power Jumper: JVDD1
Use this jumper to specify the operation voltage of the LVDS interface at panel.
3V (Default) 5V
11
Inverter Power Jumper: JINV1
Use this jumper to specify the operation voltage of the inverter module.
5V (Default) +12V
11
