3-12
MS-7145 M-ATX Mainboard

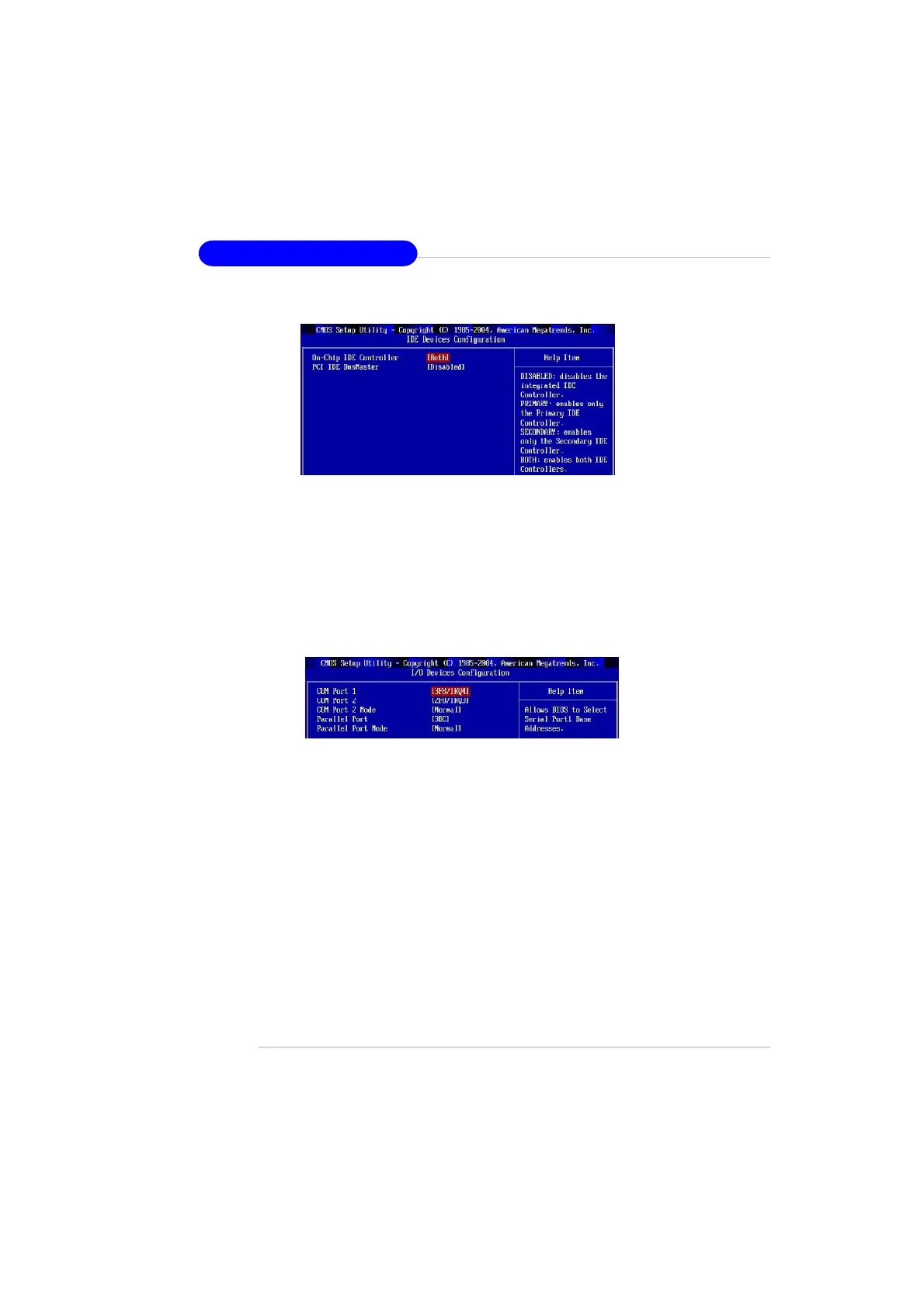

On-Chip IDE Controller
This field allows you to enable or disable on-chip IDE Controller. Settings options:
[Disabled], [Primary], [Secondary], [Both].
PCI IDE BusMaster
Set this option to [Enabled] to specify that the IDE controller on the PCI local bus
has bus mastering capability. Settings options: [Disabled], [Enabled].
I/O Devices Configuration
Press <Enter> to enter the sub-menu and the following screen appears:
COM Port 1/ Port2
Select an address and corresponding interrupt for these two serial ports. The
settings are: [3F8/IRQ4], [2E8/IRQ3], [3E8/IRQ4], [2F8/IRQ3], [Disabled], [Auto].
COM Port 2 Mode
This setting allows you to specify the operation mode for serial port 2. Setting
options:
[Noamal] RS-232C Serial Port
[IrDA] IrDA-compliant Serial Infrared Port
[ASKIR] Amplitude Shift Keyed Infrared Port
Parallel Port
This field specifies the base I/O port address of the onboard parallel port. Select-
ing [Auto] allows AMIBIOS to automatically determine the correct base I/O port
address. Settings: [378], [278], [3BC] and [Disabled].
