MS-7145 M-ATX Mainboard
1 Line Out (Center and
Subwoofer channel)
2 *Line Out (Rear channels)
3 *Line Out (Front channels)
* Both Line In and MIC function
are converted to Line Out func-
tion when 4-Channel Mode for
6-Speaker Output is selected.
n 6-Channel Mode for 6-Speaker Output

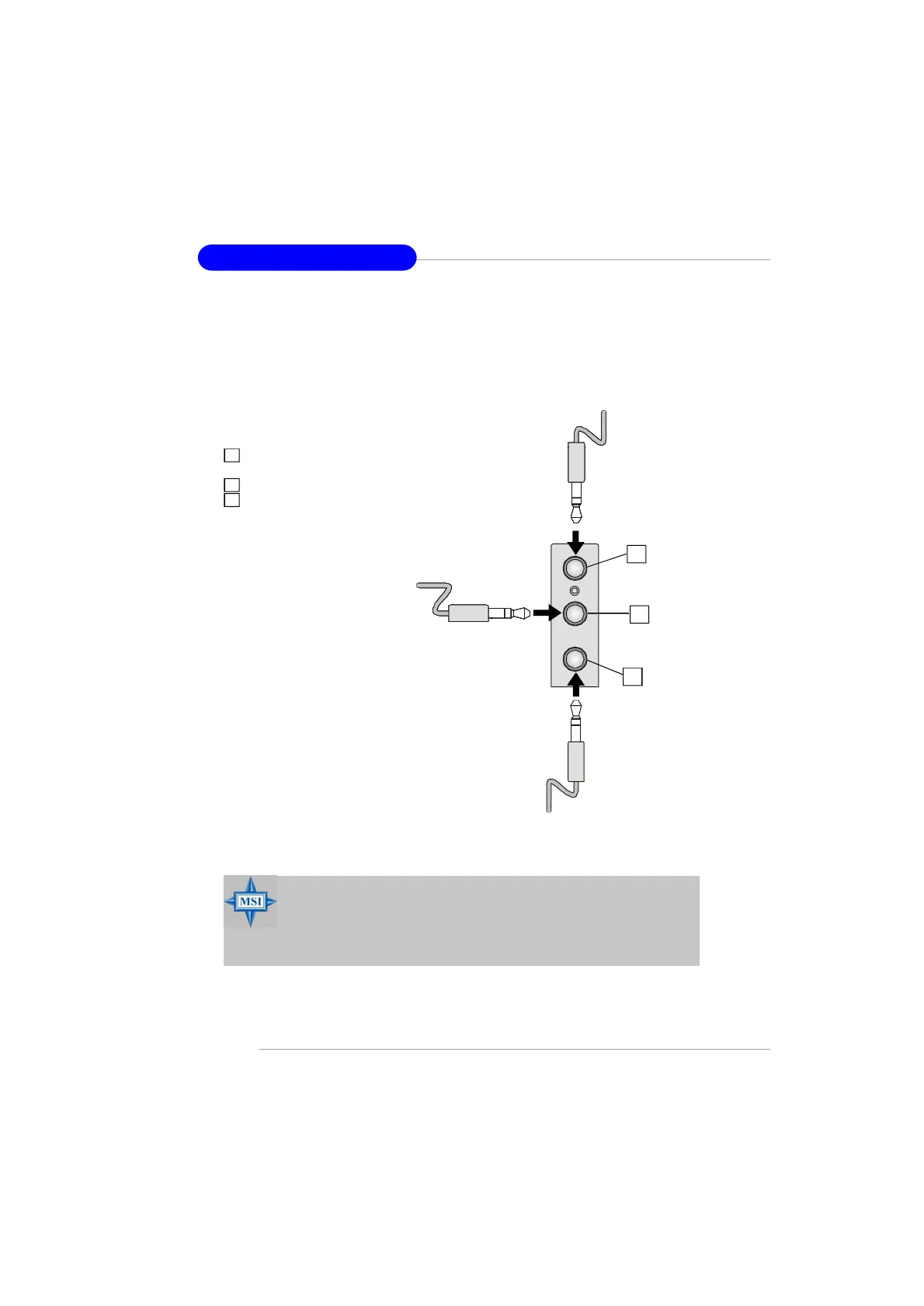

Refer to the following diagram and caption for the function of each jack on the back
panel when 6-Channel Mode is selected.
Back Panel
3
1
2
MSI Reminds You...
If the Center and Subwoofer speaker exchange their audio channels
when you play video or music on the computer, a converter may be
required to exchange center and subwoofer audio signals. You can
purchase the converter from a speaker store.
