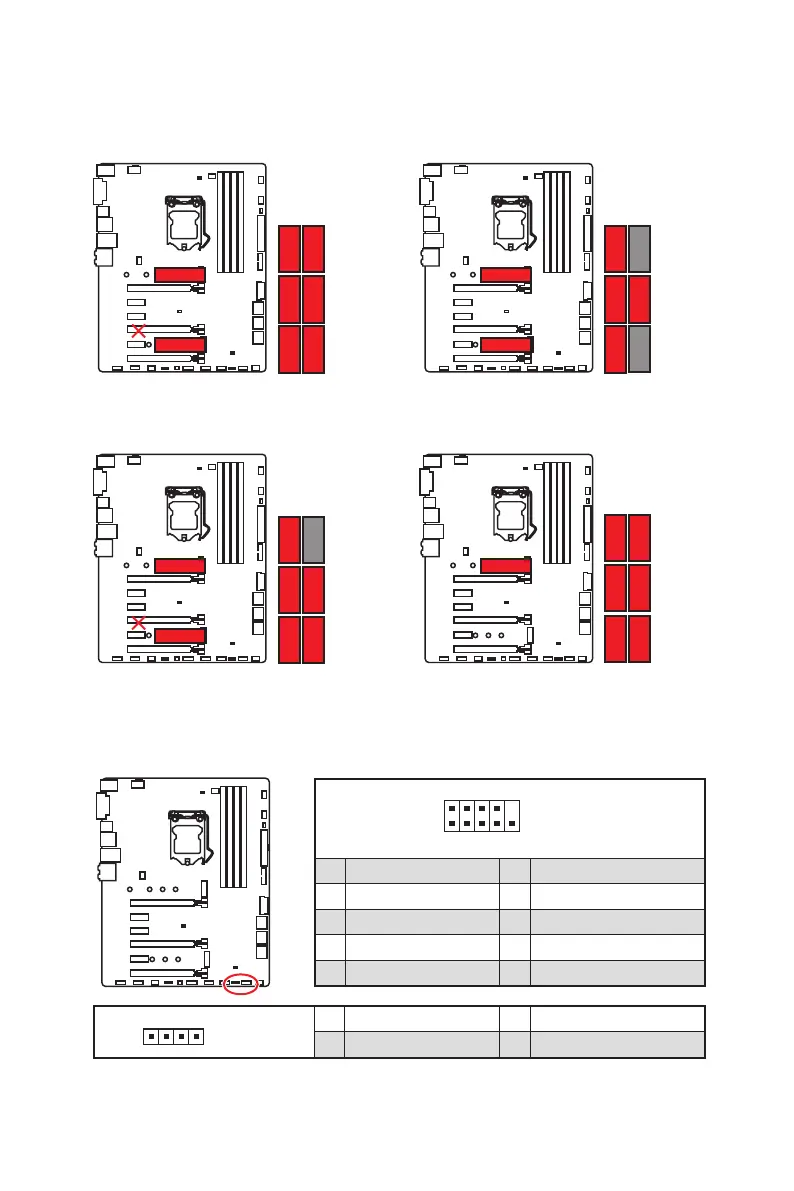

Übersicht der Komponenten

JFP1, JFP2: Frontpanel-Anschlüsse

Diese Anschlüsse verbinden die Schalter und LEDs des Frontpanels.

2 10

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

JFP2

1 Speaker - 2 Buzzer +

3 Buzzer - 4 Speaker +

M.2 Steckplätze mit Beispielen zu den verschiedenen

Kombinationsmöglichkeiten

PCIe SATA

SATA PCIe

PCIe

SATA

PCIe

SATA4SATA6

SATA4

SATA2

SATA1

SATA3SATA5

SATA6

SATA3SATA5

SATA3

2xM.2 PCIe SSDs + 6xSATA HDDs

1xM.2 PCIe SSD + 6xSATA HDDs

2xM.2 SATA SSDs + 4xSATA HDDs

1xM.2 SATA SSD + 1xM.2 PCIe SSD +

5xSATA HDDs
