MSI Z370 TOMAHAWK User Manual

8

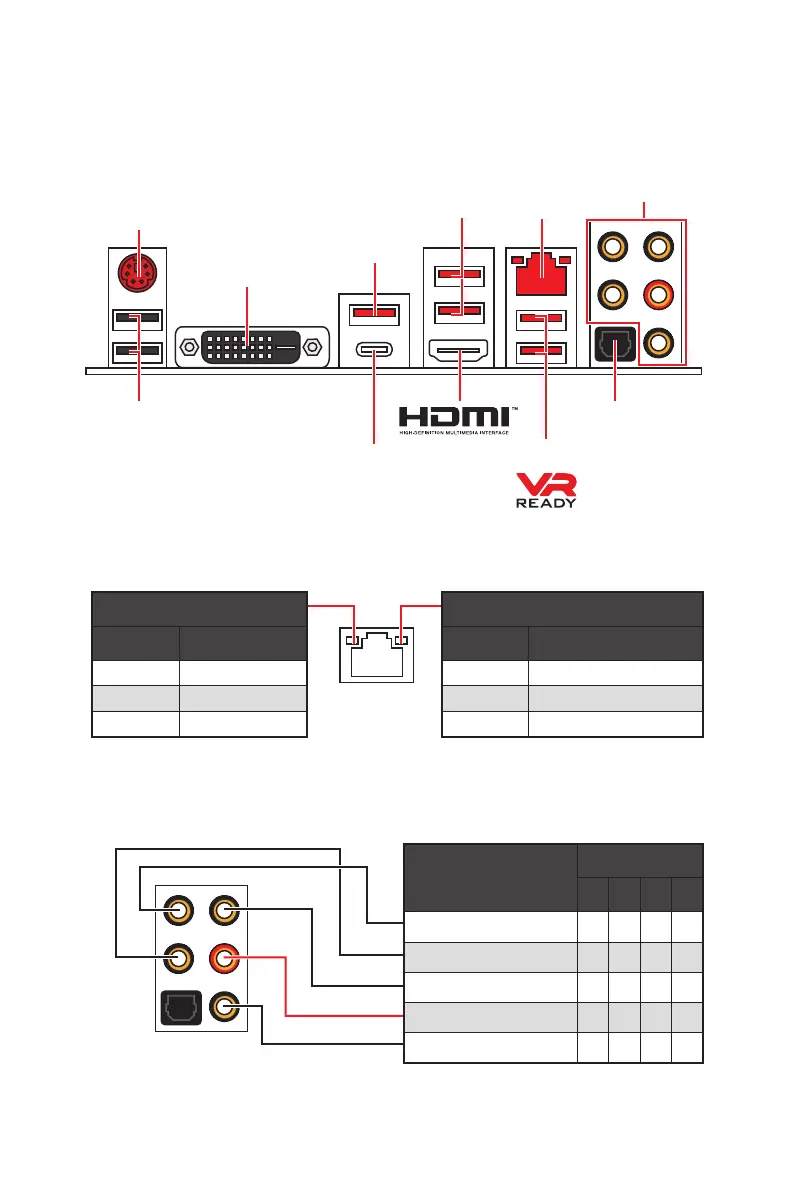

Rear I/O Panel
Rear I/O Panel
PS/2
LAN
USB 2.0
Audio Ports
Optical S/PDIF-Out
DVI-D
USB 3.1 Gen1
USB 3.1 Gen2
USB 3.1 Gen1
USB 3.1 Gen2
Type-C
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out ● ●
Rear Speaker Out ● ● ●
Line-In/ Side Speaker Out ●
Line-Out/ Front Speaker Out ● ● ● ●
Mic In
(●: connected, Blank: empty)

MSI Z370 TOMAHAWK Specifications

General

Chipset	Intel Z370
CPU Socket	LGA 1151
Form Factor	ATX
Expansion Slots	2 x PCIe 3.0 x16, 4 x PCIe 3.0 x1
LAN	Intel I219-V Gigabit LAN
RAID Support	RAID 0, 1, 5, 10
Memory Support	DDR4
Storage Interface	6 x SATA 6Gb/s, 1 x M.2
USB Ports	8 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC892
