Quick Start

RESET SW

POWER SW

POWER LED+

POWER LED-

HDD LED

RESET SW

JFP1

HDD LED

HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

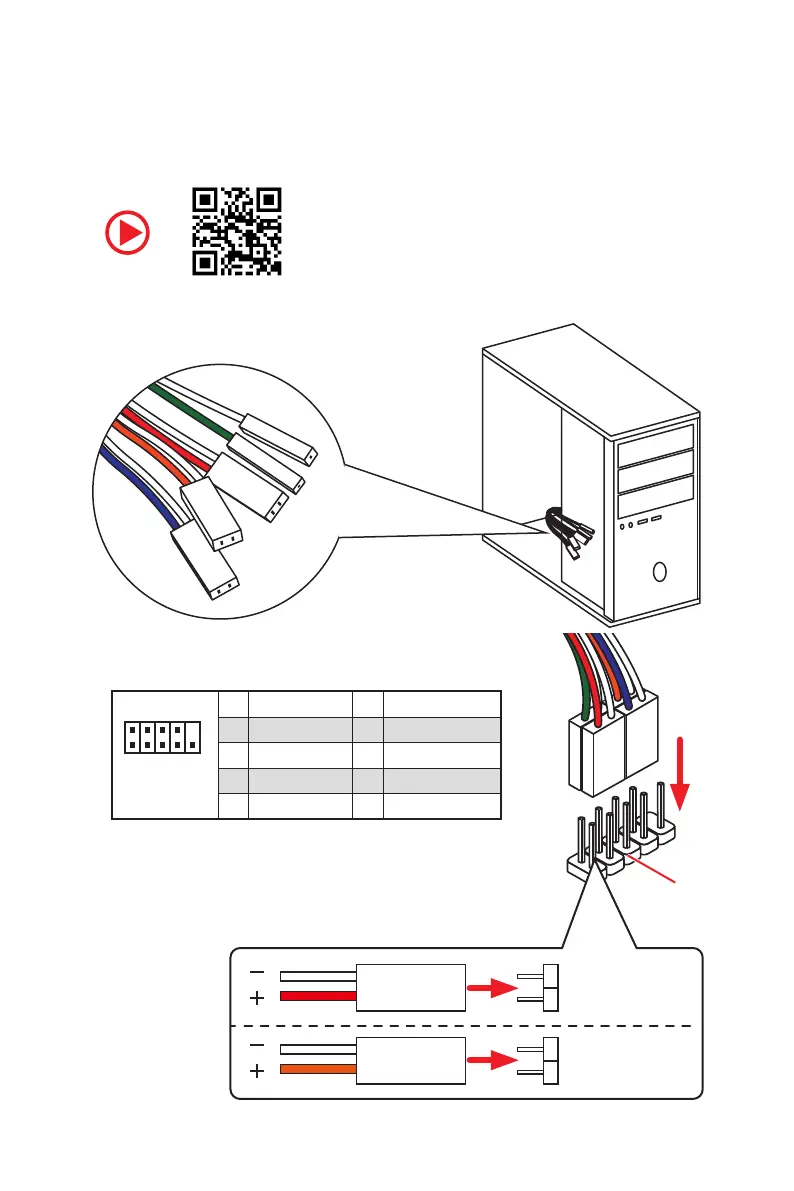

Connecting the Front Panel Header/ Anschließen der

Frontpanel-Stiftleiste/ Connecter un connecteur du panneau

avant/ Подключение разъемов передней панели

http://youtu.be/DPELIdVNZUI

2 10

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin
