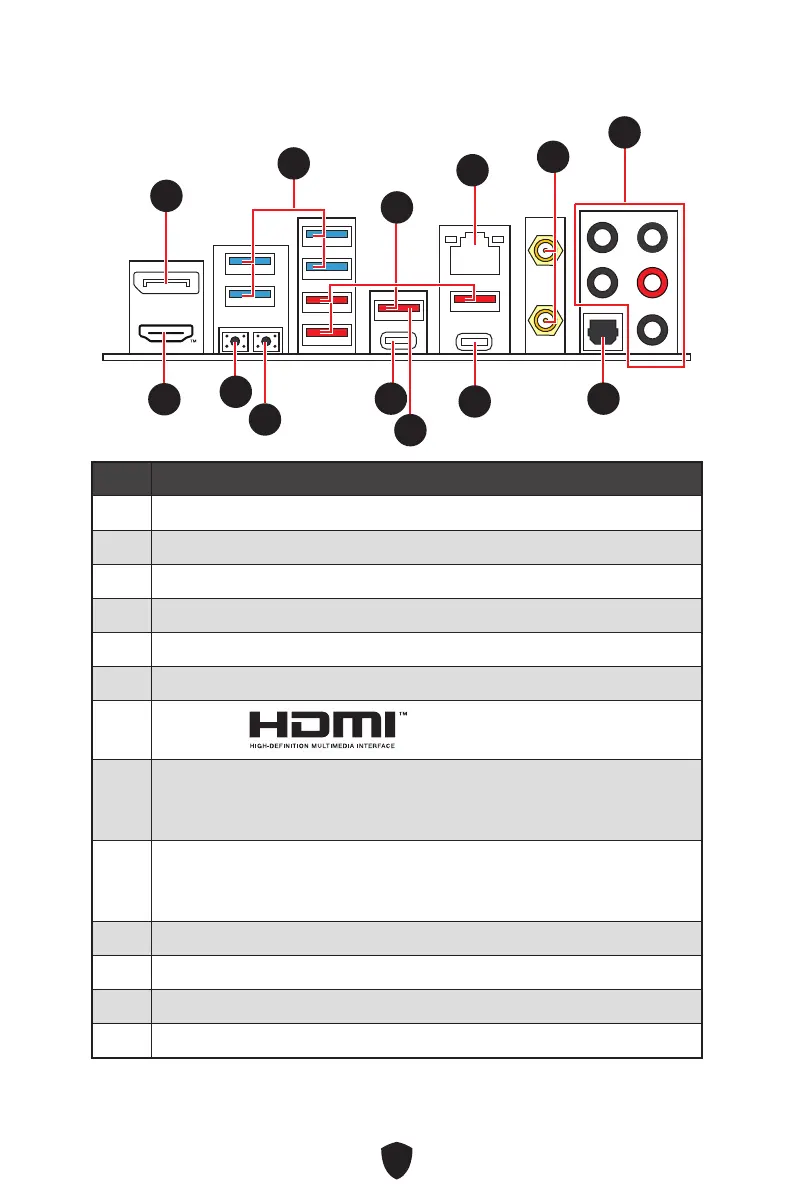

Back Panel Connectors
Item Description
1 DisplayPort
2 USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523)
3 USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
4 2.5 Gbps LAN (RJ45) port
5 Wi-Fi antenna connectors
6 Audio jacks
7
HDMI™ port
8
Clear CMOS button
 Power off your computer. Press and hold the Clear CMOS button for
about 5-10 seconds to reset BIOS to default values.
9
Flash BIOS button
 Please refer to page 58 for details about updating BIOS with Flash BIOS
button.
10 USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
11 Flash BIOS port
12 USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
13 Optical S/PDIF Out connector
11
22
44
77
88
99
1010
1212
1313
1111
66
33
55

MSI Z790 EDGE WIFI Specifications

General

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Support	DDR5
Maximum Memory	128GB
Memory Slots	4 x DIMM
Form Factor	ATX
Wi-Fi	Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Ethernet	2.5G LAN
Audio	Realtek ALC4080 Codec
Storage Interfaces	6 x SATA 6Gb/s
USB 3.2 Gen 2x2 Ports	1 x Type-C
USB 3.2 Gen 1 Ports	4 x Type-A
