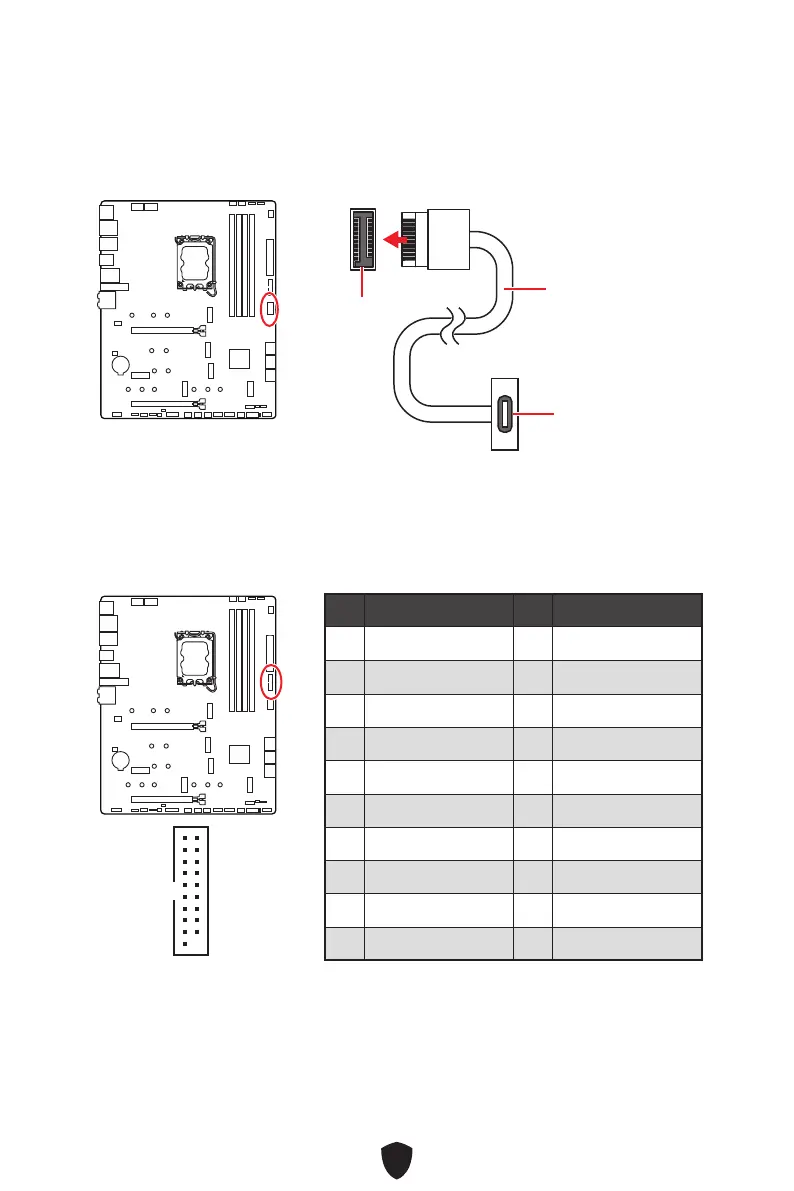

JUSB4: USB 3.2 Gen 2 Type-C
󼗶󻡦󽄚󺼂
󼳖󺼗󼼢
󼕦󼳖󺼗󼼢󻝮󻺞󼒛󽍊󼏞󼗶󻡦󽄚󺼂󼕊󼳖󺼗󼼢󻝮󼏢󺪢󽍒󼀊
󼕺󼂧󻂺󻃖󼕦󼳖󺼗󼼢󻂆󽉲󽋶󻛚󽋶󻙎󼖃󻇋󽍊󻆶󻙏󻌆󼖂󼕪󻈊󼎺󼔮󻡢󼳲󼕦󻰆󼏢󺪢󼃎
󼘇󽑇󽍎󻨛󽎗󼔮󻙎󼏢󺪢󽍊󼃎󺰢󻨆󻕿󻂺󻃖
JUSB4
󼳲󼕦󻰆
󼗶󻡦
󽄚󺼂󼏂󽇞󽂪
󽌲 󼃒󽐪󼕦󻝶 󽌲 󼃒󽐪󼕦󻝶
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1
10 11
20
