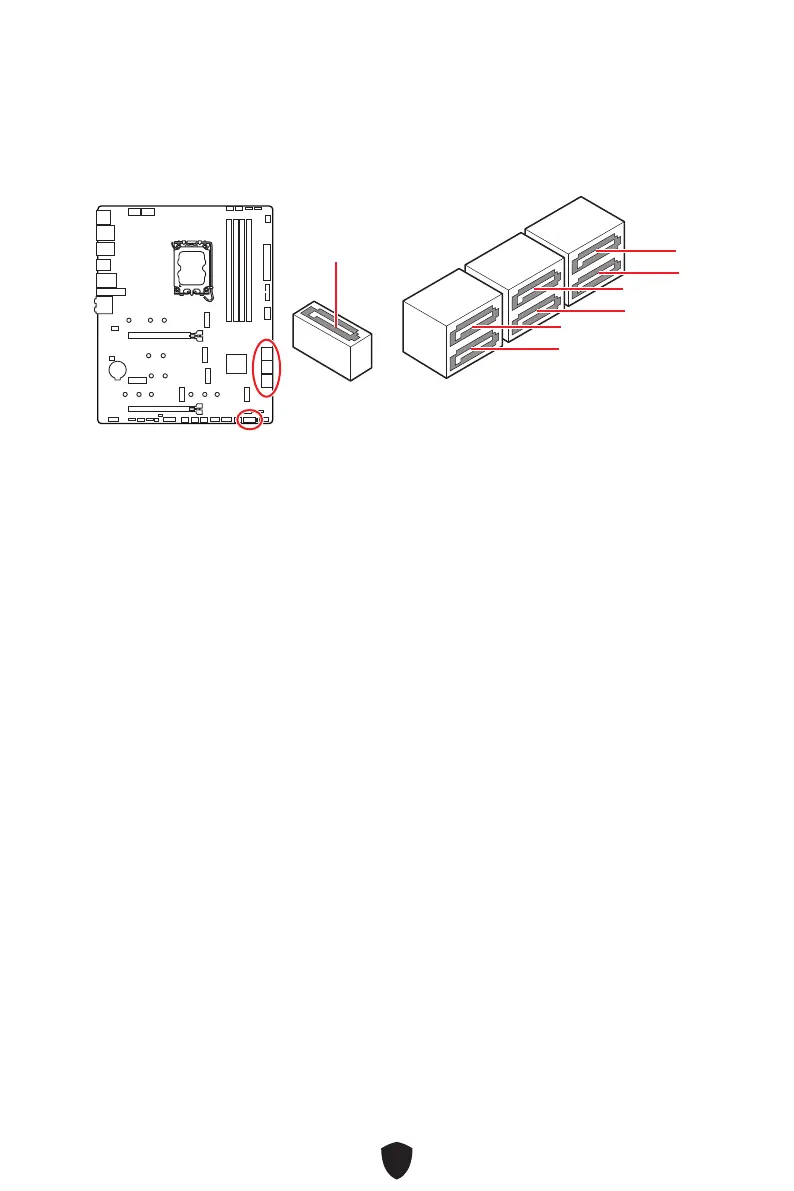

SATA_1, SATA_5~6, SATA_7~8 & SATA_A1~A2: SATA
6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA_A1
SATA_7
SATA_5
SATA_1
SATA_A2
SATA_8
SATA_6
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
