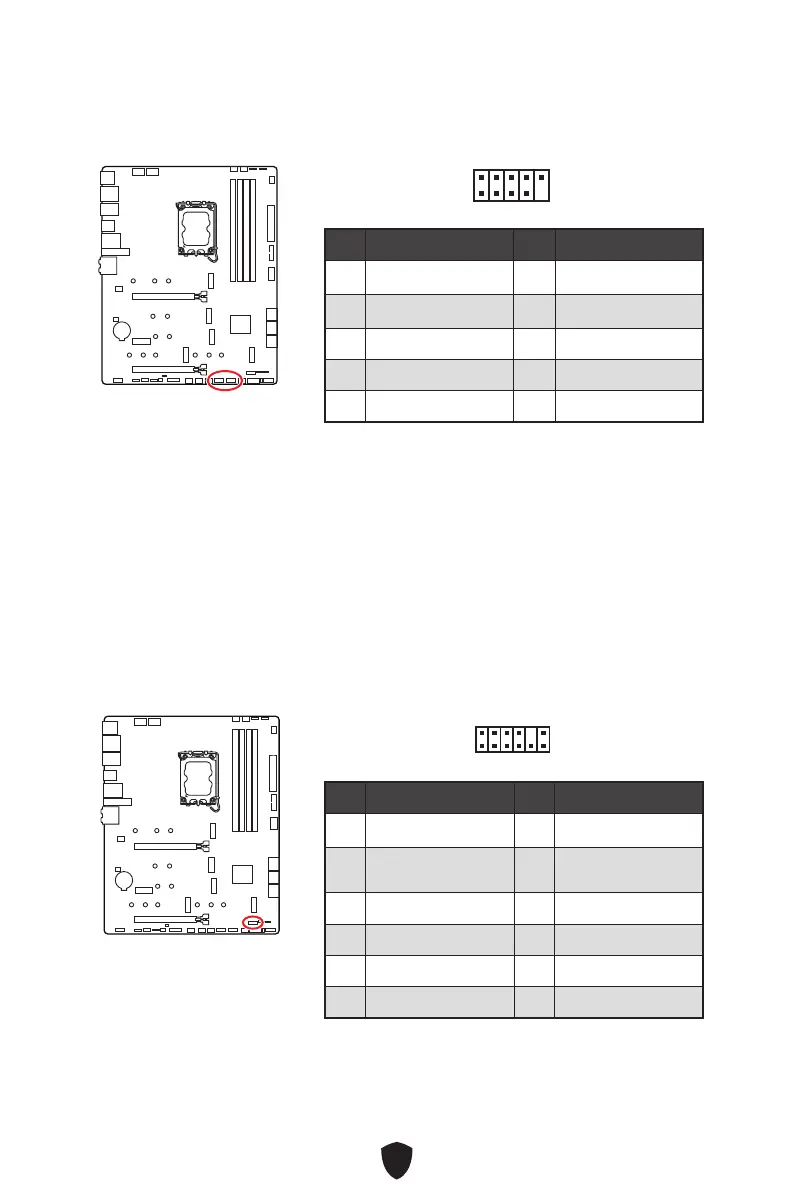

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

2 10

 󱥯󲁢󲁿  󱥯󲁢󲁿

1 SPI Power 2 SPI Chip Select

Master In Slave Out

(SPI Data)

Master Out Slave In

(SPI Data)

5 Reserved 6 SPI Clock

7 Ground 8 SPI Reset

9 Reserved 10 No Pin

11 Reserved 12 Interrupt Request

2 12
