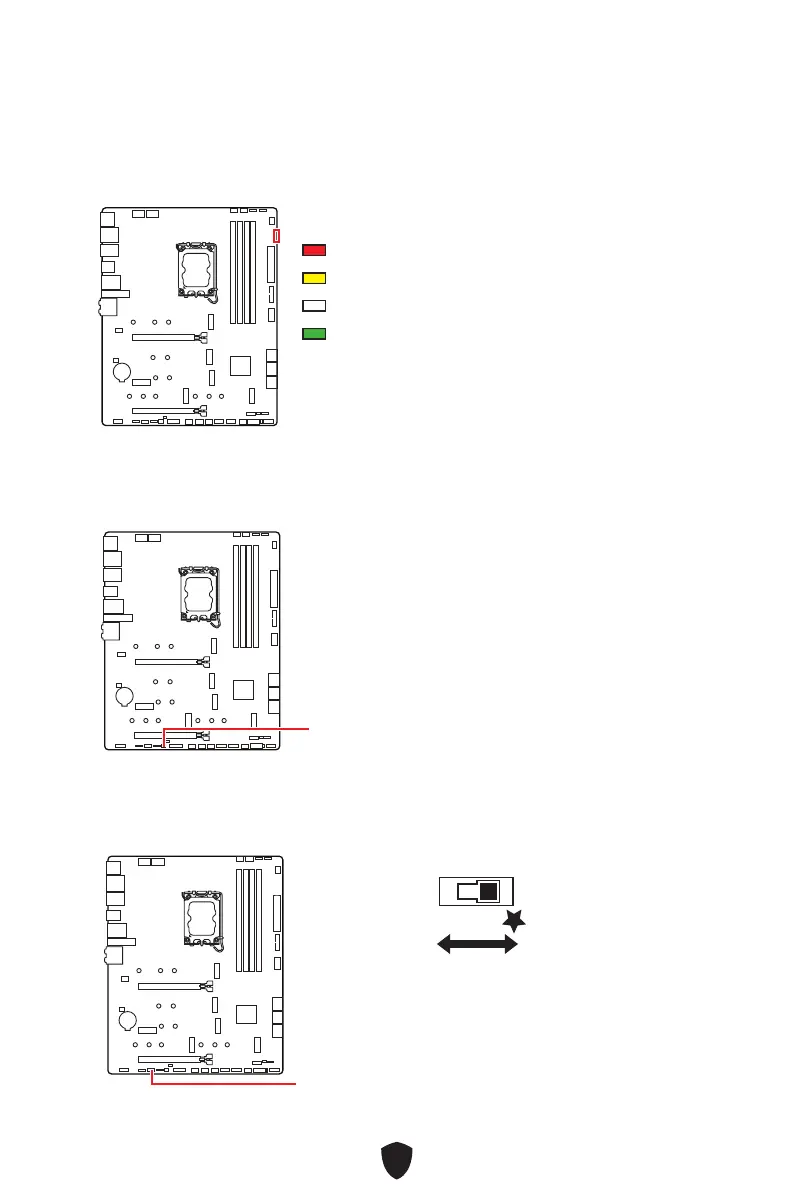

EZ Debug LED

These LEDs indicate the debug status of the motherboard.

Onboard LEDs

JPWRLED1: LED Power Input

This connector is used by retailers to demonstrate onboard LED lights.

JPWRLED1 - LED power input

LED_SW1: EZ LED Control

This switch is used to switch on/ off all the LEDs of motherboard.

LED_SW1

LED_OFF

LED_ON

(Default)

CPU - indicates CPU is not detected or fail.

DRAM - indicates DRAM is not detected or fail.

VGA - indicates GPU is not detected or fail.

BOOT - indicates the booting device is not detected or fail.
