32

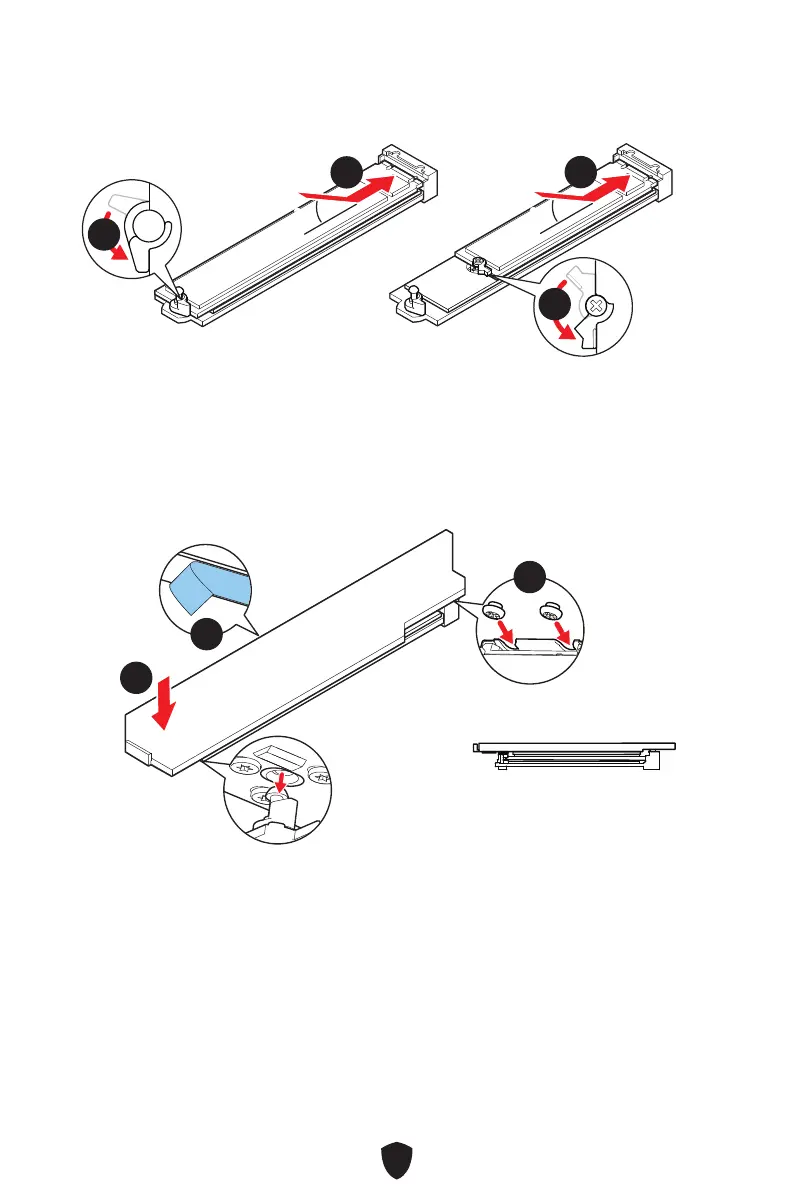

5. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
6. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
22110 SSD
2260/2280 SSD
55
55
44
44
7. Remove the protective films from the thermal pads under Screwless M.2 Shield
Frozr heatsink.
8. Align the tenons under Screwless M.2 Shield Frozr heatsink with the notches, and
then put the heatsink back in place.
9. Press the end side of the Screwless M.2 Shield Frozr heatsink down to lock it
completely.
88
77
99
