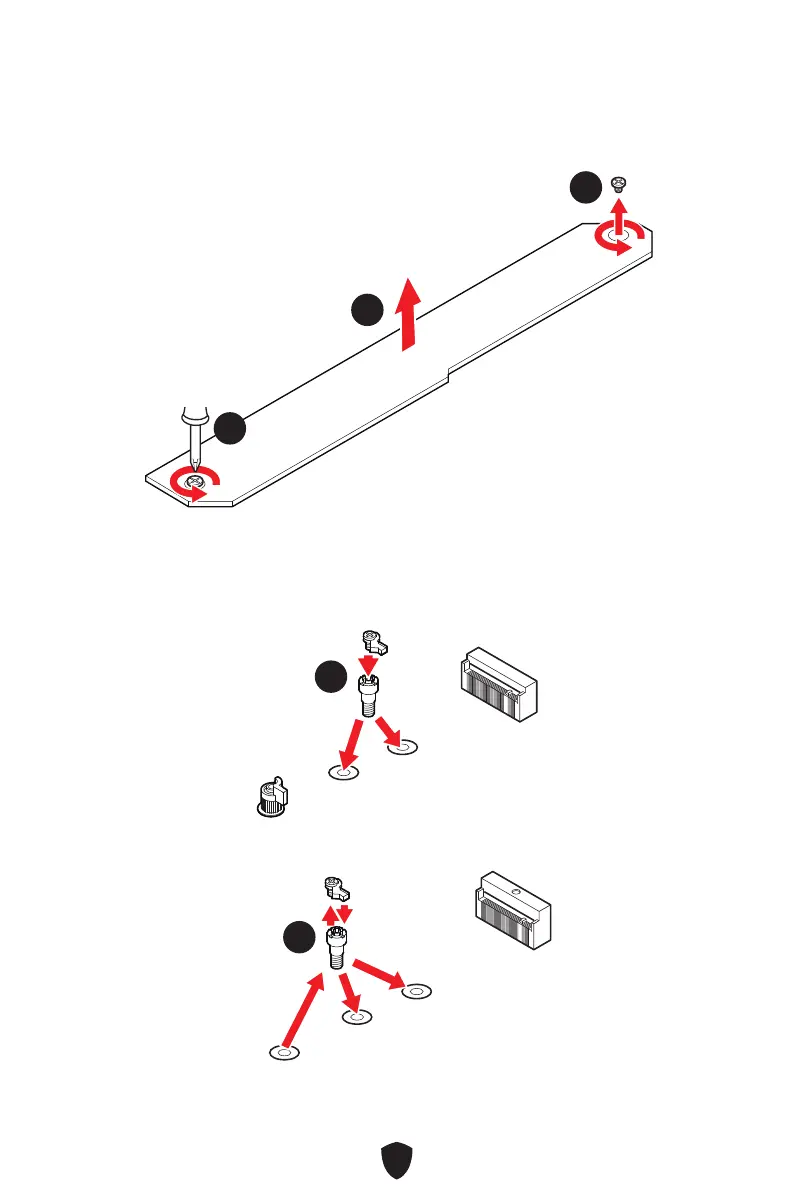

Installing M.2 module into M2_3 & M2_4 slots
1. Loosen the screws of M.2 Shield Frozr heatsink.
2. Lift up the M.2 Shield Frozr heatsink and remove it.
11
11
22
3. If you want to install 2242 or 2260 M.2 SSD, please install the supplied EZ M.2 Clip
kit in the 2240 or 2260 screw hole. Skip this step, if you install 2280 SSD.
 M2_3 slot
33
2260
2242
 M2_4 slot
2260
2242
33

MSI Z790 EDGE WIFI Specifications

General

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Support	DDR5
Maximum Memory	128GB
Memory Slots	4 x DIMM
Form Factor	ATX
Wi-Fi	Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Ethernet	2.5G LAN
Audio	Realtek ALC4080 Codec
Storage Interfaces	6 x SATA 6Gb/s
USB 3.2 Gen 2x2 Ports	1 x Type-C
USB 3.2 Gen 1 Ports	4 x Type-A
