MSI Z790 EDGE WIFI User Manual

i

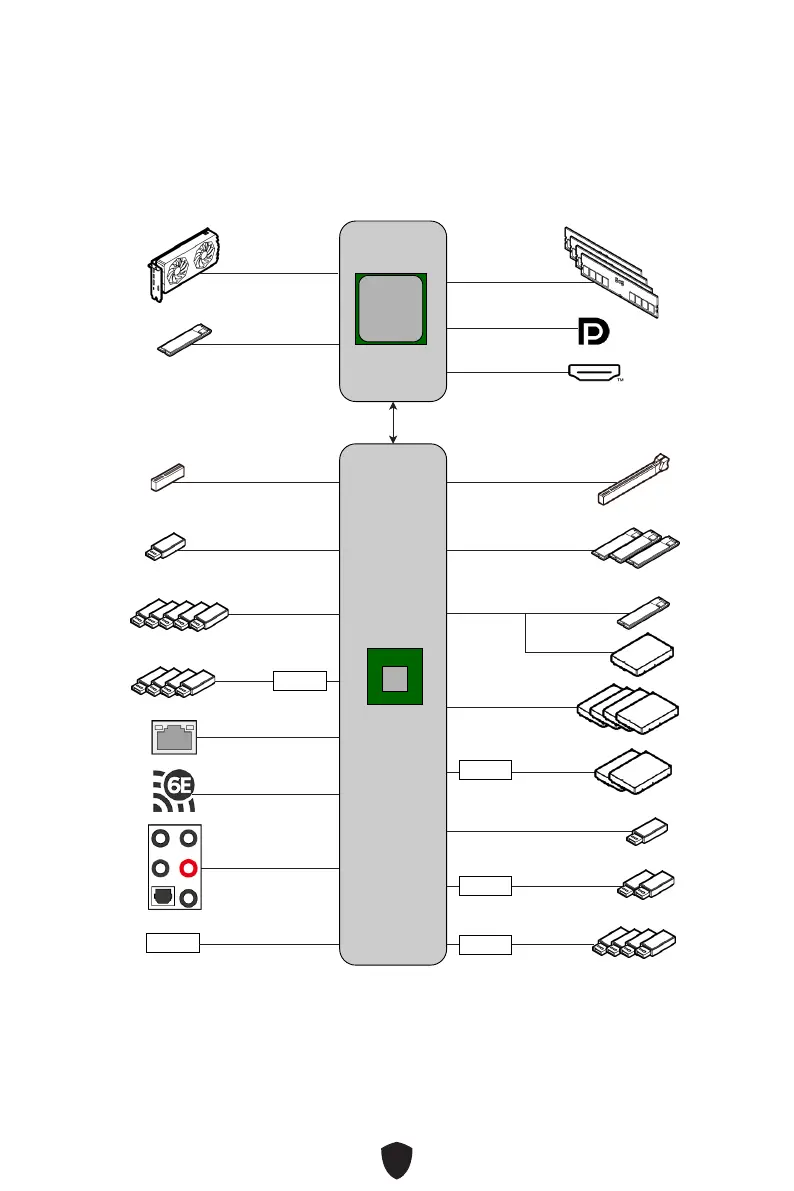

Block Diagram
MPG Z790 EDGE WIFI
PCI_E1
PCIe 5.0x16
DDR5
DIMM A1/A2
DIMM B1/B2
M.2_1
GEN 4x4
(PCIe Only)
M.2_2/ M.2_4/ M.2_5
GEN4 x4 (PCIe Only)
USB3.2 Gen2 10Gbps
(4Type-A + 1Type-C)
Intel 2.5Gbps
SATA_5_6_7_8
SATA_A1_A2
ASM1061
WiFi 6E
PCH
HD Audio
ALC4080
CPU
DMI x8
M.2_3
GEN4 x4 (PCIe + SATA)
USB3.2 Gen1 5Gbps
(Front Type-A)
GL3523
USB3.2 Gen1 5Gbps
(Type-A)
USB3.2 Gen2 10Gbps
(Front Type-C)
GL850
USB2.0
(Front Type-A)
USB3.2 Gen2x2 20Gbps
(Type-C)
PCI_E2
PCIe 3.0x 1
PCI_E3
PCIe 4.0x 4
SPI
SATA_1
GL3523
HDMI™ 2.1
(4K@60Hz)
DP 1.4
(8K@60Hz)

MSI Z790 EDGE WIFI Specifications

General

Chipset	Intel Z790
CPU Socket	LGA 1700
Memory Support	DDR5
Maximum Memory	128GB
Memory Slots	4 x DIMM
Form Factor	ATX
Wi-Fi	Wi-Fi 6E
Bluetooth	Bluetooth 5.3
Ethernet	2.5G LAN
Audio	Realtek ALC4080 Codec
Storage Interfaces	6 x SATA 6Gb/s
USB 3.2 Gen 2x2 Ports	1 x Type-C
USB 3.2 Gen 1 Ports	4 x Type-A
