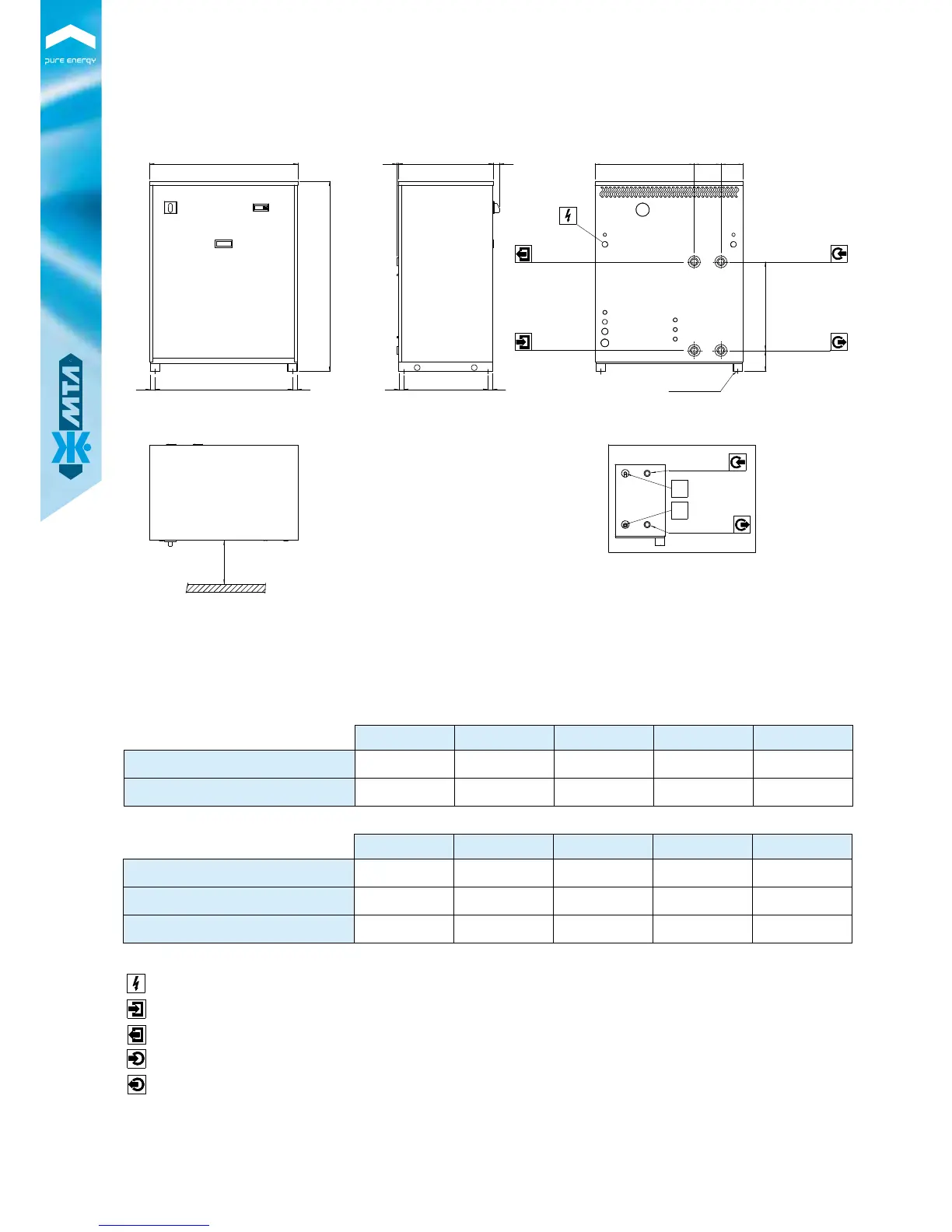

MTA HOCT 400 - OCT - HOCT - MEOCT 050 - 070 - 100 - 130 - 150 Dimensions

50
OCT - HOCT - MEOCT 050 - 070 - 100 - 130 - 150
OCT - HOCT 050 OCT - HOCT 070 OCT - HOCT 100 OCT - HOCT 130 OCT - HOCT 150
Attacchi acqua condensatore
Condenser water connections
Ø IN, Ø OUT G 1 1/4" B (ext.) G 1 1/4" B (ext.) G 1 1/2" B (ext.) G 1 1/2" B (ext.) G 1 1/2" B (ext.)
Attacchi acqua evaporatore
Evaporator water connections
Ø IN, Ø OUT G 1 1/4" B (ext.) G 1 1/4" B (ext.) G 1 1/2" B (ext.) G 1 1/2" B (ext.) G 1 1/2" B (ext.)
MEOCT 050 MEOCT 070 MEOCT 100 MEOCT 130 MEOCT 150
Ingresso refrigerante
(A)
Refrigerant inlet
Ø IN 12 ODF 16 ODF 16 ODF 16 ODF 18 ODF
Uscita refrigerante
(B)
Refrigerant outlet
Ø OUT 16 ODF 18 ODF 18 ODF 22 ODF 22 ODF
Attacchi acqua evaporatore
Evaporator water connections
Ø IN, Ø OUT G 1 1/4" B (ext.) G 1 1/4" B (ext.) G 1 1/2" B (ext.) G 1 1/2" B (ext.) G 1 1/2" B (ext.)
: Ingresso refrigerante (versione motoevaporante) - Refrigerant inlet (condenerless version)
: Alimentazione elettrica - Electrical power supply
: Ingresso acqua condensatore - Condenser water inlet
: Uscita acqua condensatore - Condenser water outlet
A
B
: Uscita refrigerante (versione motoevaporante) - Refrigerant outlet (condenerless version)
: Ingresso acqua evaporatore - Evaporator water inlet
: Uscita acqua evaporatore - Evaporator water outlet
*
: Fori - Holes
OCEAN WHFK
780
521
140
119
32
500
25
Ø IN G 1 1/4” B
Ø OUT G 1 1/4” B
Ø OUT G 1 1/4” B
Ø IN G 1 1/4” B
n° 2+2 Ø 11*
25
722
25
25
443
25
Ø IN G 1 1/4” B
Ø OUT G 1 1/4” B
B
A
800 min.
466
110
1000
Versione motoevaporante
Evaporating version
