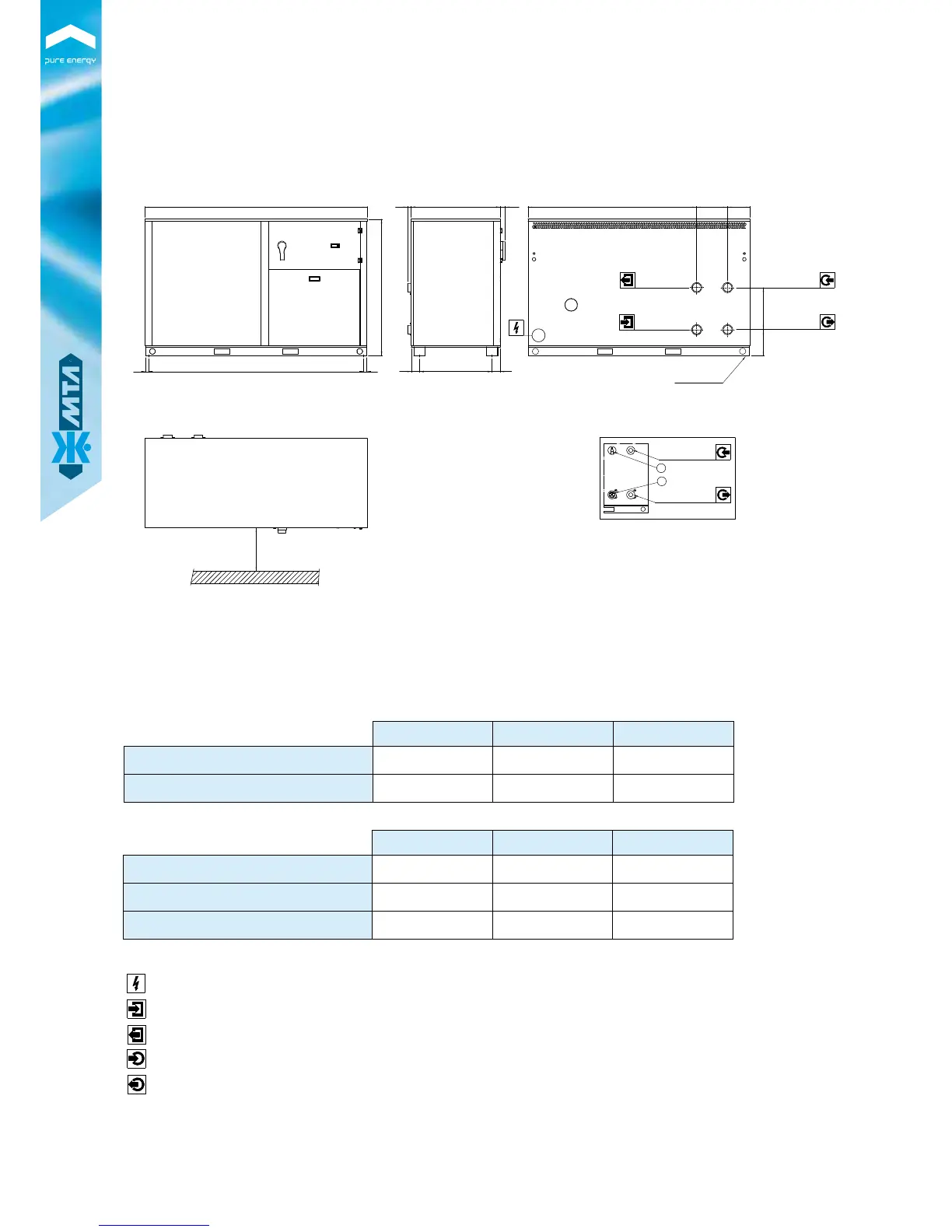

MTA HOCT 400 - Installation Guide; Unit Placement Requirements; Hydraulic System Connections

54
OCT - HOCT - MEOCT 400 - 500 - 600
OCT - HOCT 400 OCT - HOCT 500 OCT - HOCT 600
Attacchi acqua condensatore
Condenser water connections
Ø IN, Ø OUT G 2 1/2" B (ext.) G 2 1/2" B (ext.) G 2 1/2" B (ext.)
Attacchi acqua evaporatore
Evaporator water connections
Ø IN, Ø OUT G 2 1/2" B (ext.) G 2 1/2" B (ext.) G 2 1/2" B (ext.)
MEOCT 400 MEOCT 500 MEOCT 600
Ingresso refrigerante
(A)
Refrigerant inlet
Ø IN 28 ODF 28 ODF 28 ODF
Uscita refrigerante
(B)
Refrigerant outlet
Ø OUT 35 ODF 35 ODF 35 ODF
Attacchi acqua evaporatore
Evaporator water connections
Ø IN, Ø OUT G 2 1/2" B (ext.) G 2 1/2" B (ext.) G 2 1/2" B (ext.)
: Ingresso refrigerante (versione motoevaporante) - Refrigerant inlet (evaporating version)
: Alimentazione elettrica - Electrical power supply
: Ingresso acqua condensatore - Condenser water inlet
: Uscita acqua condensatore - Condenser water outlet
A
B
: Uscita refrigerante (versione motoevaporante) - Refrigerant outlet (evaporating version)
: Ingresso acqua evaporatore - Evaporator water inlet
: Uscita acqua evaporatore - Evaporator water outlet
*
: Fori - Holes
OCEAN WHFK
Ø IN G 2 1/2” BN
Ø OUT G 2 1/2” B
B
A
Ø IN G 2 1/2” B
Ø OUT G 2 1/2” B
Ø OUT G 2 1/2” B
Ø IN G 2 1/2” B
n° 2+2 Ø 11*
1950
1480
270
200
50
785
30
25
1890
25
70
637
70
370
230
1200
1500 min.
Versione motoevaporante
Evaporating version
