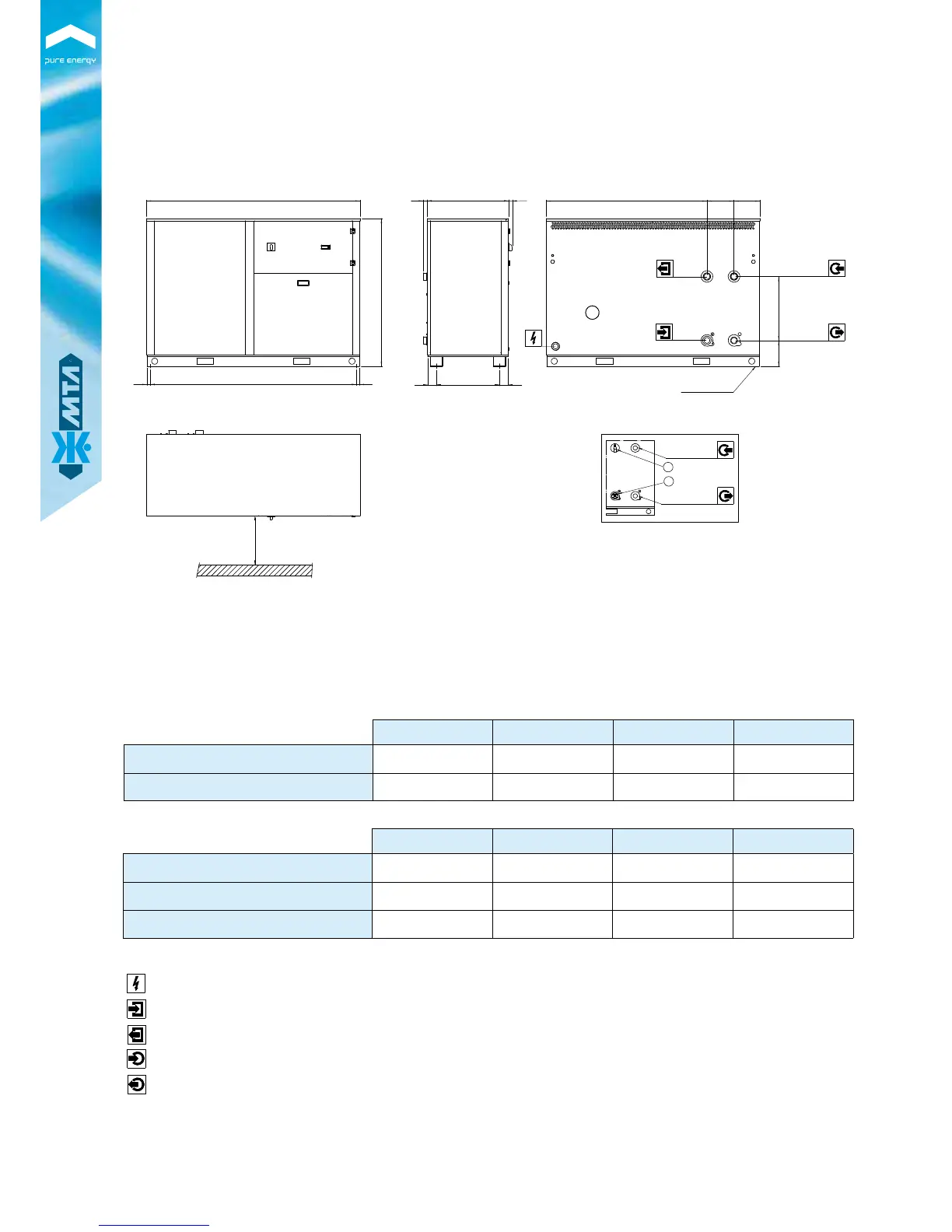

MTA HOCT 400 - OCT - HOCT - MEOCT 200 - 230 - 280 - 350 Dimensions

OCT - HOCT - MEOCT 200 - 230 - 280 - 350
OCT - HOCT 200 OCT - HOCT 230 OCT - HOCT 280 OCT - HOCT 350
Attacchi acqua condensatore
Condenser water connections
Ø IN, Ø OUT G 2" B (ext.) G 2" B (ext.) G 2 1/2" B (ext.) G 2 1/2" B (ext.)
Attacchi acqua evaporatore
Evaporator water connections
Ø IN, Ø OUT G 2" B (ext.) G 2" B (ext.) G 2 1/2" B (ext.) G 2 1/2" B (ext.)
MEOCT 200 MEOCT 230 MEOCT 280 MEOCT 350
Ingresso refrigerante
(A)
Refrigerant inlet
Ø IN 22 ODF 22 ODF 22 ODF 22 ODF
Uscita refrigerante
(B)
Refrigerant outlet
Ø OUT 28 ODF 28 ODF 28 ODF 35 ODF
Attacchi acqua evaporatore
Evaporator water connections
Ø IN, Ø OUT G 2" B (ext.) G 2" B (ext.) G 2 1/2" B (ext.) G 2 1/2" B (ext.)
: Ingresso refrigerante (versione motoevaporante) - Refrigerant inlet (condenerless version)
: Alimentazione elettrica - Electrical power supply
: Ingresso acqua condensatore - Condenser water inlet
: Uscita acqua condensatore - Condenser water outlet
A
B
: Uscita refrigerante (versione motoevaporante) - Refrigerant outlet (condenerless version)
: Ingresso acqua evaporatore - Evaporator water inlet
: Uscita acqua evaporatore - Evaporator water outlet
*
: Fori - Holes
OCEAN WHFK
52
Ø IN G 2” B
Ø OUT G 2” B
B
A
n° 2+2 Ø 11*
Ø IN
Ø OUT
Ø OUT G 2” B
Ø IN G 2” B
1735
1305
220
210
31
660
45
519
209
25
1675
25
70
512
70
1500 min.
1200
Versione motoevaporante
Evaporating version
