MTD 145-660A - Page 21

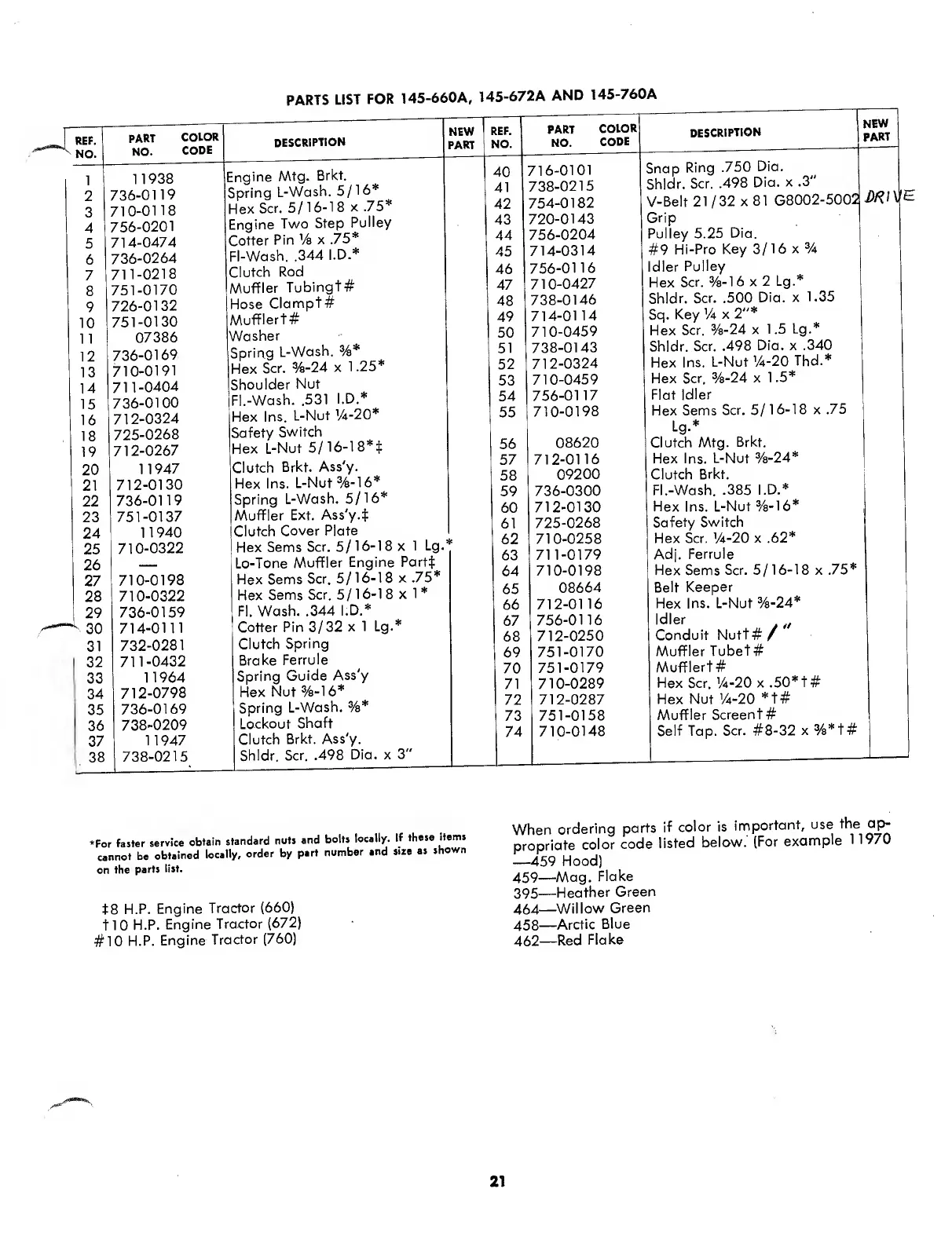

PARTS LIST FOR 145-660A, 145-672A AND 145-760A
F REF.
x NO.
PART COLOR
NO. CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART COLOR
NO. CODE
--’i
DESCRIPTION
NEW
PART
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
- 1 30
31
32
33
34
35
36
37
38
11938 I
736-0119
710-0118
756-0201
714-0474
736-0264
711-0218
751-0170
726-0132
751-0130
07386
736-0169
710- 0191
711- 0404
736-0100
712- 0324
725-0268
712-0267
11947
712-0130
736-0119
751-0137
11940
710-0322
710-0198
710- 0322
736-0159
714-0111
732-0281
711- 0432
11964
712- 0798
736-0169
738-0209
11947
738-0215
Engine Mtg. Brkt.
Spring L-Wash. 5/16*
Hex Scr. 5/16-1 8 x .75*
Engine Two Step Pulley
Cotter Pin Ve x .75*
Fl-Wash. .344 I.D.*
Clutch Rod
Muffler Tubingt#
Hose Clampt#
Mufiflert #
Washer
Spring L-Wash. %*
Hex Scr. %-24 x 1.25*
Shoulder Nut
FI.-Wash. .531 I.D.*
Hex Ins. L-Nut '4-20*
Safety Switch
Hex L-Nut 5/16-18*:):
Clutch Brkt. Ass'y.
Hex Ins. L-Nut %-16*
Spring L-Wash. 5/16*
Muffler Ext. Ass'y .$
Clutch Cover Plate
Hex Sems Scr. 5/ 16-1 8 x 1 Lg. :
Lo-Tone Muffler Engine Part):
Hex Sems Scr. 5/16-18 x .75*
Hex Sems Scr. 5/16-18x1*
FI. Wash. .344 I.D.*
Cotter Pin 3/32 x 1 Lg.*
Clutch Spring
Brake Ferrule
Spring Guide Ass'y
Hex Nut %-l 6*
Spring L-Wash. %*
Lockout Shaft
Clutch Brkt. Ass'y.
Shldr. Scr. .498 Dia. x 3"
*
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
716-0101
738-0215
754-0182
720-0143
756-0204
714-0314
756-0116
710-0427
738-0146
714-0114
710-0459
738-0143
712-0324
710-0459
756-0117
710-0198
08620
712-0116
09200
736-0300
712-0130
725-0268
710- 0258
711- 0179
710-0198
08664
712- 0116
756-0116
712-0250
751-0170
751-0179
710-0289
712-0287
751-0158
710-0148
Snap Ring .750 Dia.
Shldr. Scr. .498 Dia. x .3"
V-Belt 21 / 32 x 81 G8002-5002
Grip
Pulley 5.25 Dia.
#9 Hi-Pro Key 3/16 x %
Idler Pulley
Hex Scr. 3 /s-16 x 2 Lg.*
Shldr. Scr. .500 Dia. x 1.35
Sq. Key Va x 2"*
Hex Scr. %-24 x 1.5 Lg.*
Shldr. Scr. .498 Dia. x .340
Hex Ins. L-Nut 14-20 Thd.*
Hex Scr. %-24 x 1.5*
Flat Idler
Hex Sems Scr. 5/16-18 x .75
Lg.*
Clutch Mtg. Brkt.
Hex Ins. L-Nut %-24*
Clutch Brkt.
FI.-Wash. .385 I.D.*
Hex Ins. L-Nut %-16*
Safety Switch
Hex Scr. ’4-20 x .62*
Adj. Ferrule
Hex Sems Scr. 5/16-18 x .75*
Belt Keeper
Hex Ins. L-Nut %-24*
Idler
Conduit Nutt#/
Muffler Tubet#
Mufflert #
Hex Scr. 14-20 x .50* t#
Hex Nut ’4-20 *t#
Muffler Screent#
Self Tap. Scr. #8-32 x %*t#
mn’z
♦ For faster service obtain standard nuts and bolts locally. If these items
cannot be obtained locally, order by part number and size as shown
on the parts list.
t8 H.P. Engine Tractor (660)
tlO H.P. Engine Tractor (672)
#10 H.P. Engine Tractor (760)
When ordering parts if color is important, use the ap¬
propriate color code listed below. (For example 11970
—459 Hood)
459—Mag. Flake
395—Heather Green
464—Willow Green
458—Arctic Blue
462—Red Flake
21
