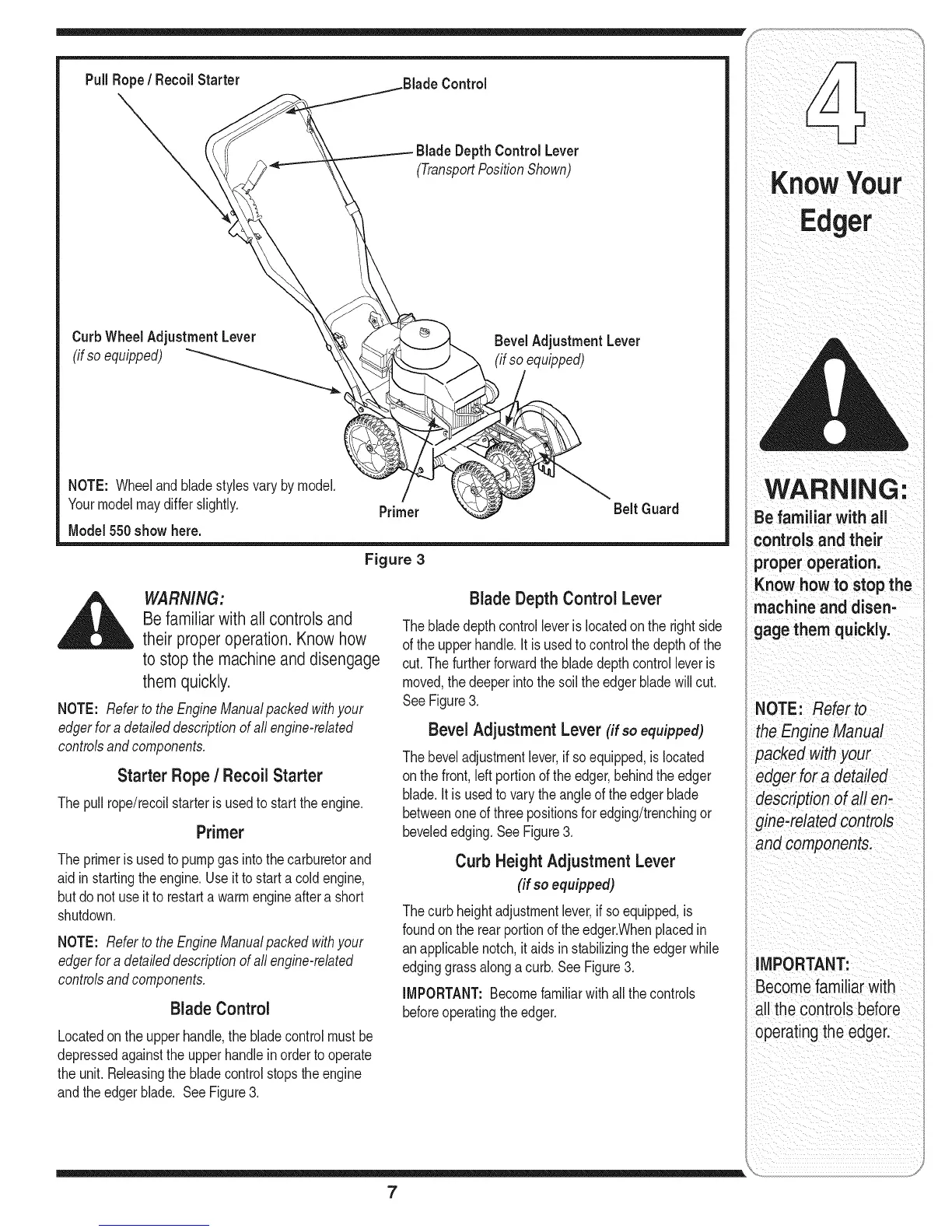

Pull Rope/ Recoil Starter
Depth Control Lever
(TransportPositionShown)
CurbWheelAdjustment Lever
(ifso equipped)
BevelAdjustmentLever
(ifsoequipped)
NOTE: Wheelandbladestylesvaryby model.
Yourmodelmaydifferslightly. Primer Belt Guard
Model550show here.
Figure 3
_ ARNING:
Be familiarwith all controls and
__ their properoperation. Know how
to stop the machine and disengage
them quickly.
NOTE: Referto theEngineManualpackedwithyour
edgerfora detaileddescriptionofall engine-related
controlsandcomponents,
Starter Rope / Recoil Starter
Thepullrope/recoilstarterisusedto starttheengine.
Primer
Theprimeris usedto pumpgas into thecarburetorand
aidin startingtheengine.Useit to start a coldengine,
butdonotuseit torestarta warmengineaftera short
shutdown.
NOTE: Referto theEngineManualpackedwithyour
edgerfora detaileddescriptionofall engine-related
controlsandcomponents.
Blade Control
Locatedon theupperhandle,the bladecontrolmustbe
depressedagainsttheupperhandlein ordertooperate
theunit.Releasingthebladecontrolstopstheengine
andtheedgerblade. SeeFigure3.
Blade Depth Control Lever
Thebladedepthcontrolleveris locatedon therightside
oftheupperhandle.It isusedtocontrolthedepthof the
cut.Thefurtherforwardthebladedepthcontrolleveris
moved,the deeperinto the soilthe edgerbladewill cut.
See Figure3.
Bevel Adjustment Lever (if soequipped)
Thebeveladjustmentlever,if soequipped,is located
on thefront,leftportionof theedger,behindtheedger
blade.It isusedtovarythe angleof theedgerblade
betweenoneofthreepositionsfor edging/trenchingor
bevelededging.SeeFigure3.
Curb Height Adjustment Lever
(if so equipped)
Thecurbheightadjustmentlever,ifsoequipped,is
foundon therearportionofthe edger.Whenplacedin
an applicablenotch,it aidsin stabilizingthe edgerwhile
edginggrassalonga curb.SeeFigure3.
IMPORTANT:Becomefamiliarwithallthe controls
beforeoperatingtheedger.
¸¸¸¸¸2
WARNING:
Be familiar with all
controls and their
proper operation.
Know how to stop the
machine and disen-
gage them quickly.
NOTE: Referto
the Engine Manual
packed withyour
edger for a detailed
descriptionof all en-
gine-related controls
and components.
IMPORTANT:
Becomefamiliar with
all the controls before
operatingthe edger.
7
