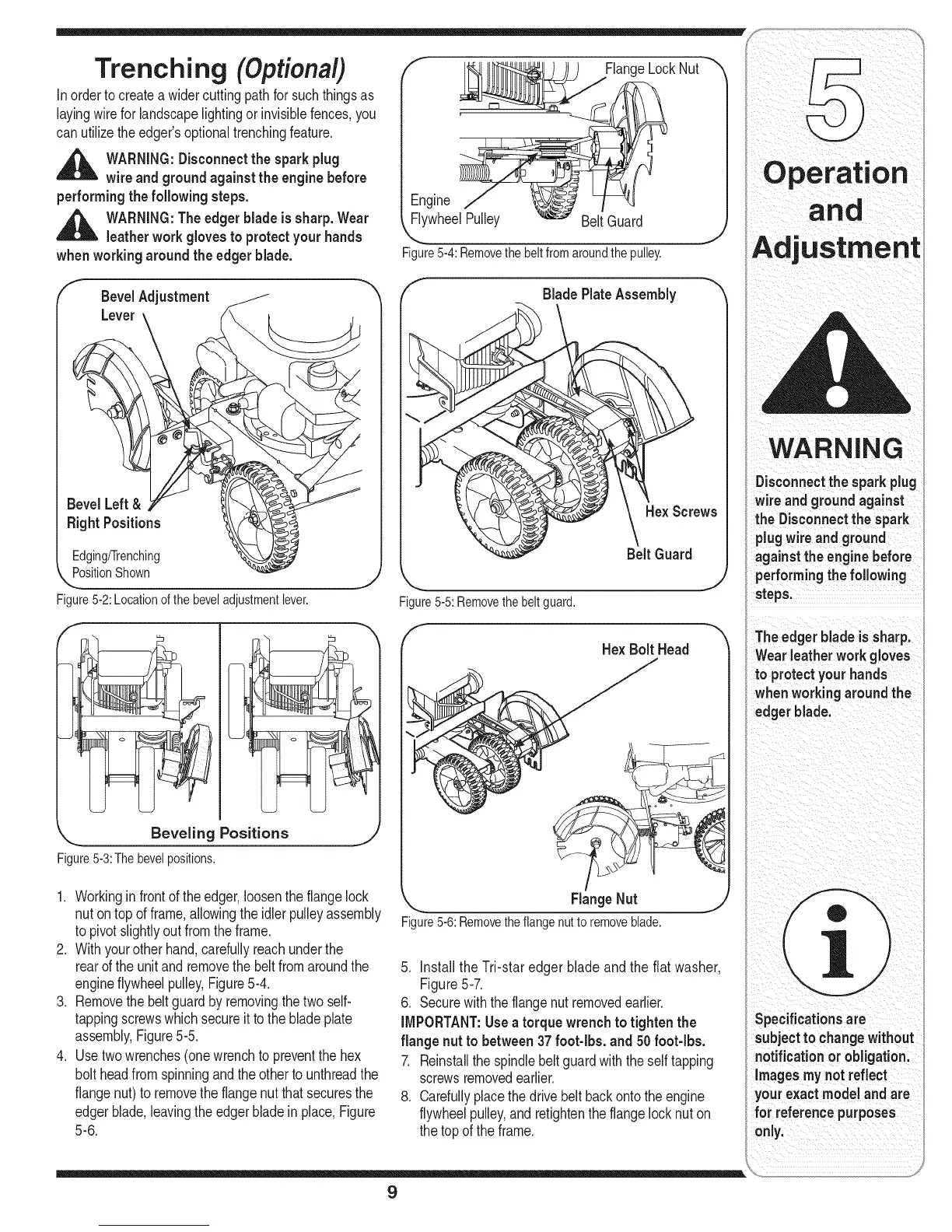

MTD 25B-551A700 - Trenching (Optional)

Trenching (Optional)
Inorderto createa widercuttingpathfor suchthingsas
layingwirefor landscapelightingor invisiblefences,you
canutilizetheedger'soptionaltrenchingfeature.
_ ARNING:Disconnectthe sparkplug
wire and ground against the engine before
performing the following steps.
_1 ARNING:Theedger blade is sharp. Wear
leatherwork gloves to protect your hands
whenworking around the edger blade.
f
Lever \
BevelLeft&
BevelAdjustment
Right Positions
Edging/Trenching
PositionShown
Figure5-2:Locationofthe beveladjustmentlever.
g Positions
Figure5-3:Thebevelpositions.
1. Workinginfrontoftheedger,loosenthe flangelock
nutontop of frame,allowingthe idlerpulleyassembly
topivotslightlyoutfromthe frame.
2. Withyourotherhand,carefullyreachunderthe
rearof the unitand removethe belt fromaroundthe
engineflywheelpulley,Figure5-4.
3. Removethe beltguardby removingthetwo self-
tappingscrewswhichsecureit to the bladeplate
assembly,Figure5-5.
4. Usetwowrenches(onewrenchtopreventthehex
boltheadfromspinningandthe otherto unthreadthe
flangenut) to removethe flangenut thatsecuresthe
edgerblade,leavingtheedgerbladeinplace,Figure
5-6.
Engine
k,,RywheelPulley BeltGuard
Figure5-4:Removethebeltfromaroundthepulley.
Blade PlateAssembly
J
Figure5-5:Removethe beltguard.
HexBolt Head
X
FlangeNut j
Figure5-6:Removetheflangenutto removeblade.
5. InstalltheTri-staredger blade andthe flat washer,
Figure5-7.
6. Securewiththeflangenutremovedearlier.
IMPORTANT:Usea torque wrenchto tighten the
flange nut to between 37foot-lbs, and 50 foot-lbs.
7. Reinstallthespindlebeltguardwiththe selftapping
screwsremovedearlier.
8. Carefullyplacethe drivebelt backonto theengine
flywheelpulley,and retightentheflangelocknuton
thetopoftheframe.
9
WARNING
Disconnectthe spark plug
wireand ground against
the Disconnectthe spark
plugwireand ground
against the engine before
performingthe following
steps.
The edgerblade is sharp.
Wearleatherworkgloves
to protectyour hands
when workingaround the
edgerblade.
Specifications are
subject to changewithout
notification or obligatiom
Images my not reflect
your exactmodel andare
for reference purposes
