Adjustments
Chute Assembly
The pitch of the chute assembly controls the angle at which the
snow is thrown.

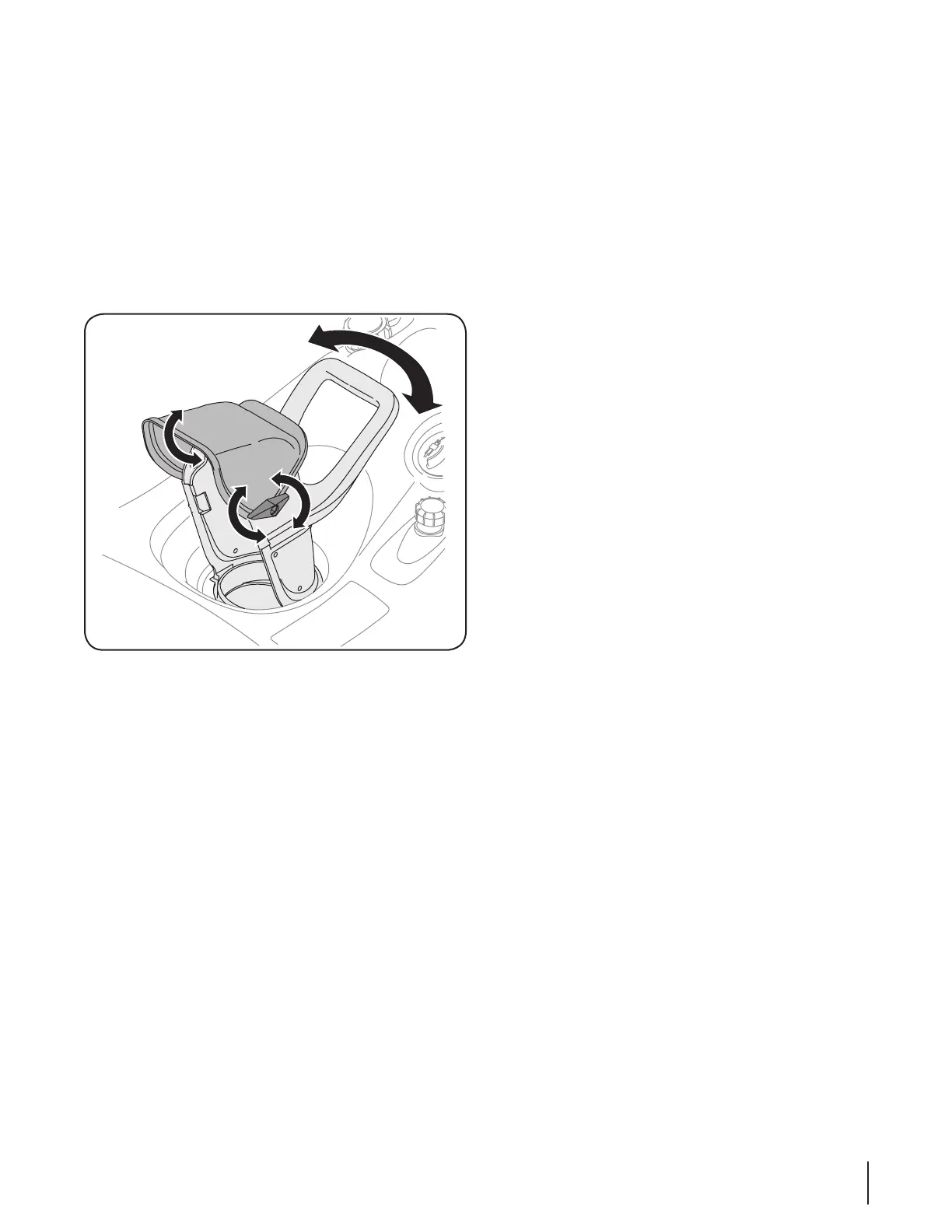

Loosen the wing knob found on the left side of the chute 1.
assembly and pivot the upper chute upward or downward
to the desired pitch. Retighten the wing knob before
operating the snow thrower.
2.
handle to throw the snow in the desired direction. See Fig.
3-5.
9se c t i O n 3 — as s e M b l y & se t -up
