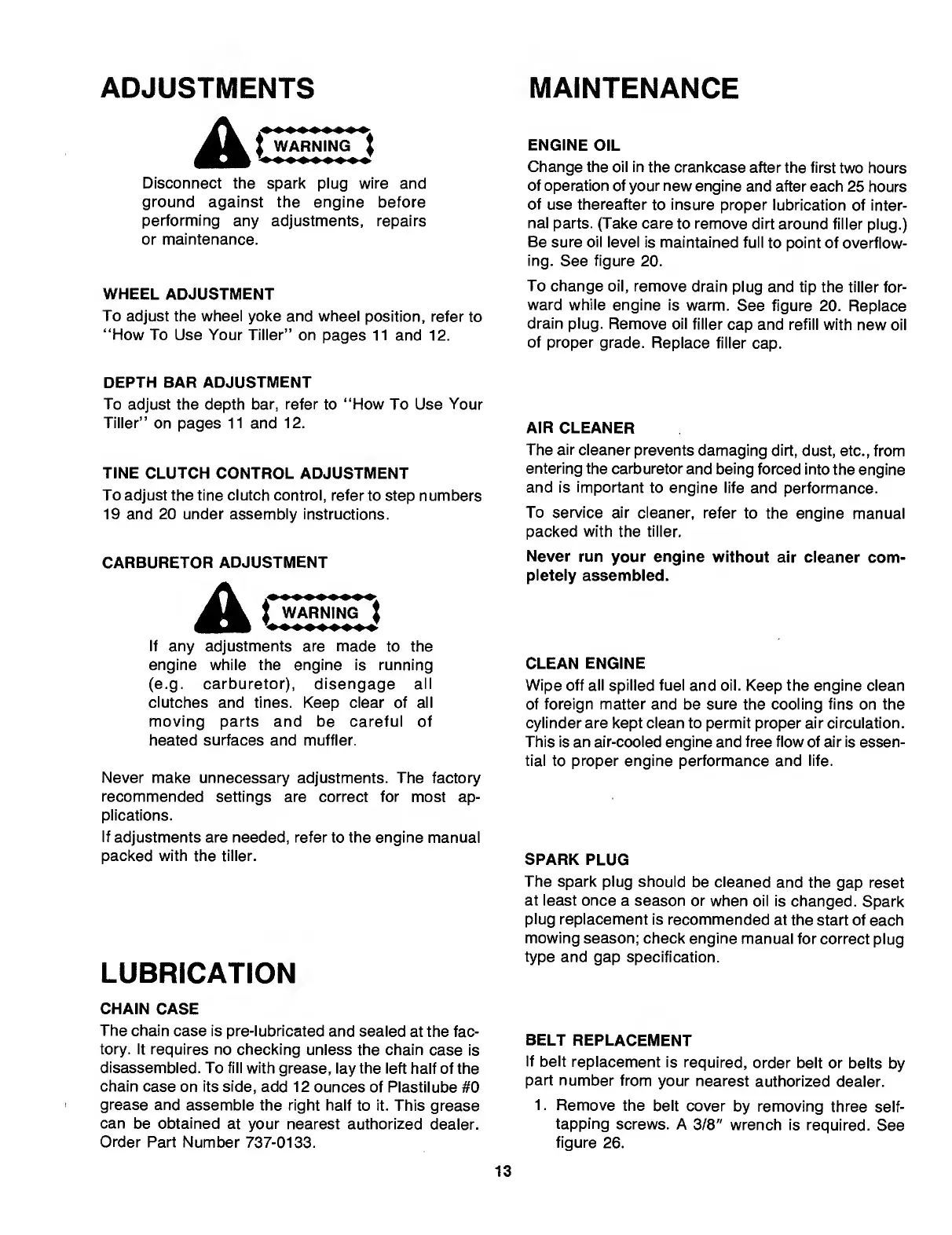

MTD 310 - Adjustments; Lubrication.13; Maintenance

ADJUSTMENTS
Ac WARNING l
Disconnect the spark plug wire and
ground against the engine before
performing any adjustments, repairs
or maintenance.
WHEEL ADJUSTMENT
To adjust the wheel yoke and wheel position, refer to
“How To Use Your Tiller” on pages 11 and 12.
DEPTH BAR ADJUSTMENT
To adjust the depth bar, refer to “How To Use Your
Tiller” on pages 11 and 12.
TINE CLUTCH CONTROL ADJUSTMENT
To adjust the tine clutch control, refer to step numbers
19 and 20 under assembly instructions.
CARBURETOR ADJUSTMENT
A f wYrnTnG
If any adjustments are made to the
engine while the engine is running
(e.g. carburetor), disengage all
clutches and tines. Keep clear of all
moving parts and be careful of
heated surfaces and muffler.
Never make unnecessary adjustments. The factory
recommended settings are correct for most ap¬
plications.
If adjustments are needed, refer to the engine manual
packed with the tiller.
LUBRICATION
CHAIN CASE
The chain case is pre-lubricated and sealed at the fac¬
tory. It requires no checking unless the chain case is
disassembled. To fill with grease, lay the left half of the
chain case on its side, add 12 ounces of Plastilube #0
grease and assemble the right half to it. This grease
can be obtained at your nearest authorized dealer.
Order Part Number 737-0133.
MAINTENANCE
ENGINE OIL
Change the oil in the crankcase after the first two hours
of operation of your new engine and after each 25 hours
of use thereafter to insure proper lubrication of inter¬
nal parts. (Take care to remove dirt around filler plug.)
Be sure oil level is maintained full to point of overflow¬
ing. See figure 20.
To change oil, remove drain plug and tip the tiller for¬
ward while engine is warm. See figure 20. Replace
drain plug. Remove oil filler cap and refill with new oil
of proper grade. Replace filler cap.
AIR CLEANER
The air cleaner prevents damaging dirt, dust, etc., from
entering the carburetor and being forced into the engine
and is important to engine life and performance.
To service air cleaner, refer to the engine manual
packed with the tiller.
Never run your engine without air cleaner com¬
pletely assembled.
CLEAN ENGINE
Wipe off all spilled fuel and oil. Keep the engine clean
of foreign matter and be sure the cooling fins on the
cylinder are kept clean to permit proper air circulation.
This is an air-cooled engine and free flow of air is essen¬
tial to proper engine performance and life.
SPARK PLUG
The spark plug should be cleaned and the gap reset
at least once a season or when oil is changed. Spark
plug replacement is recommended at the start of each
mowing season; check engine manual for correct plug
type and gap specification.
BELT REPLACEMENT
If belt replacement is required, order belt or belts by
part number from your nearest authorized dealer.
1. Remove the belt cover by removing three self¬
tapping screws. A 3/8" wrench is required. See
figure 26.
13
