I

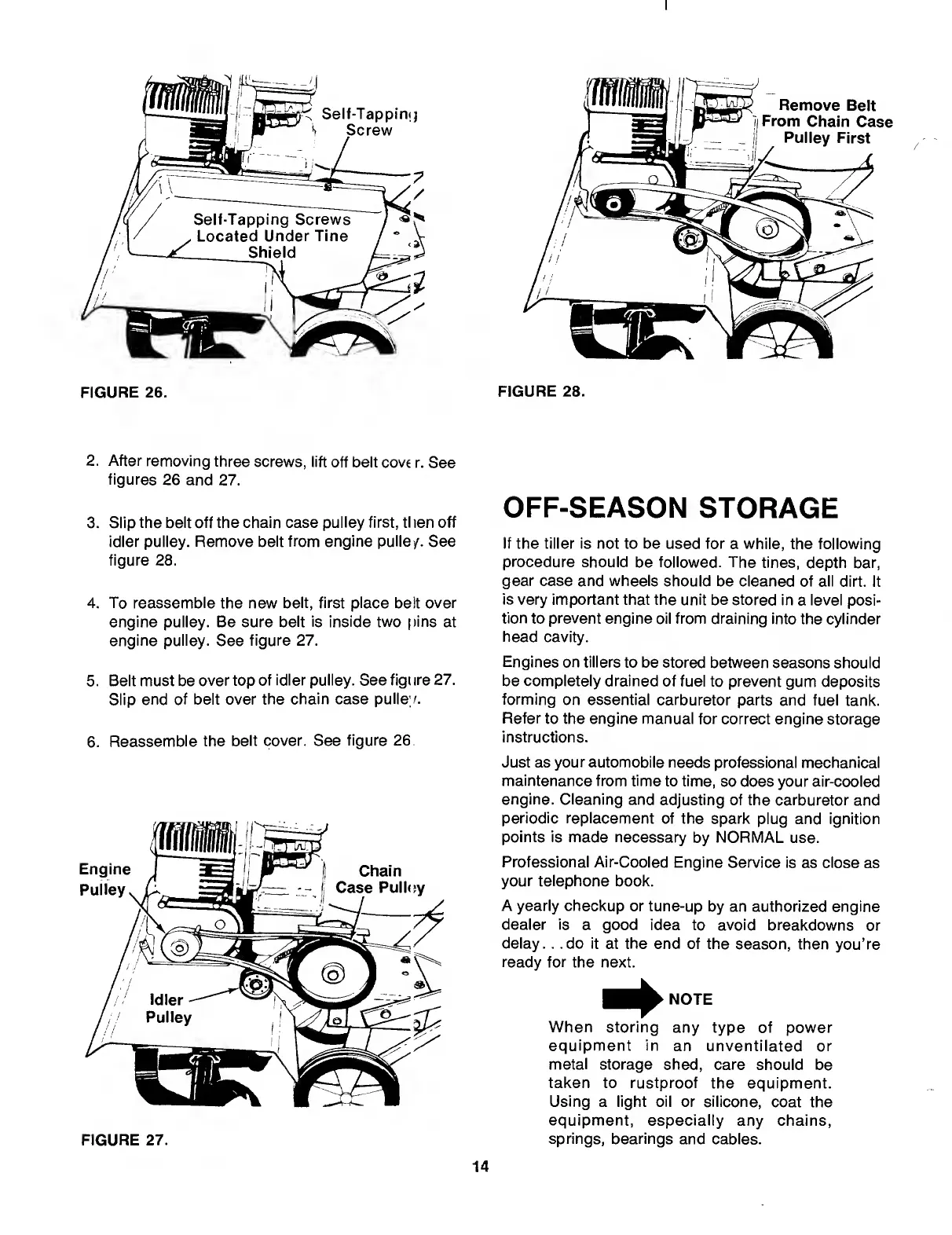

FIGURE 26. FIGURE 28.
2. After removing three screws, lift off belt cove r. See
figures 26 and 27.
3. Slip the belt off the chain case pulley first, then off
idler pulley. Remove belt from engine pulle/. See
figure 28.
4. To reassemble the new belt, first place belt over
engine pulley. Be sure belt is inside two pins at
engine pulley. See figure 27.
5. Belt must be over top of idler pulley. See figure 27.
Slip end of belt over the chain case pullev.
6. Reassemble the belt cover. See figure 26
FIGURE 27.
OFF-SEASON STORAGE
If the tiller is not to be used for a while, the following
procedure should be followed. The tines, depth bar,
gear case and wheels should be cleaned of all dirt. It
is very important that the unit be stored in a level posi¬
tion to prevent engine oil from draining into the cylinder
head cavity.
Engines on tillers to be stored between seasons should
be completely drained of fuel to prevent gum deposits
forming on essential carburetor parts and fuel tank.
Refer to the engine manual for correct engine storage
instructions.
Just as your automobile needs professional mechanical
maintenance from time to time, so does your air-cooled
engine. Cleaning and adjusting of the carburetor and
periodic replacement of the spark plug and ignition
points is made necessary by NORMAL use.
Professional Air-Cooled Engine Service is as close as
your telephone book.
A yearly checkup or tune-up by an authorized engine
dealer is a good idea to avoid breakdowns or
delay. . .do it at the end of the season, then you’re
ready for the next.
When storing any type of power
equipment in an unventilated or
metal storage shed, care should be
taken to rustproof the equipment.
Using a light oil or silicone, coat the
equipment, especially any chains,
springs, bearings and cables.
