I
NOTE
Reference to left or right side of the
tiller is determined from behind th€
unit in the operating position.
FIGURE 2.

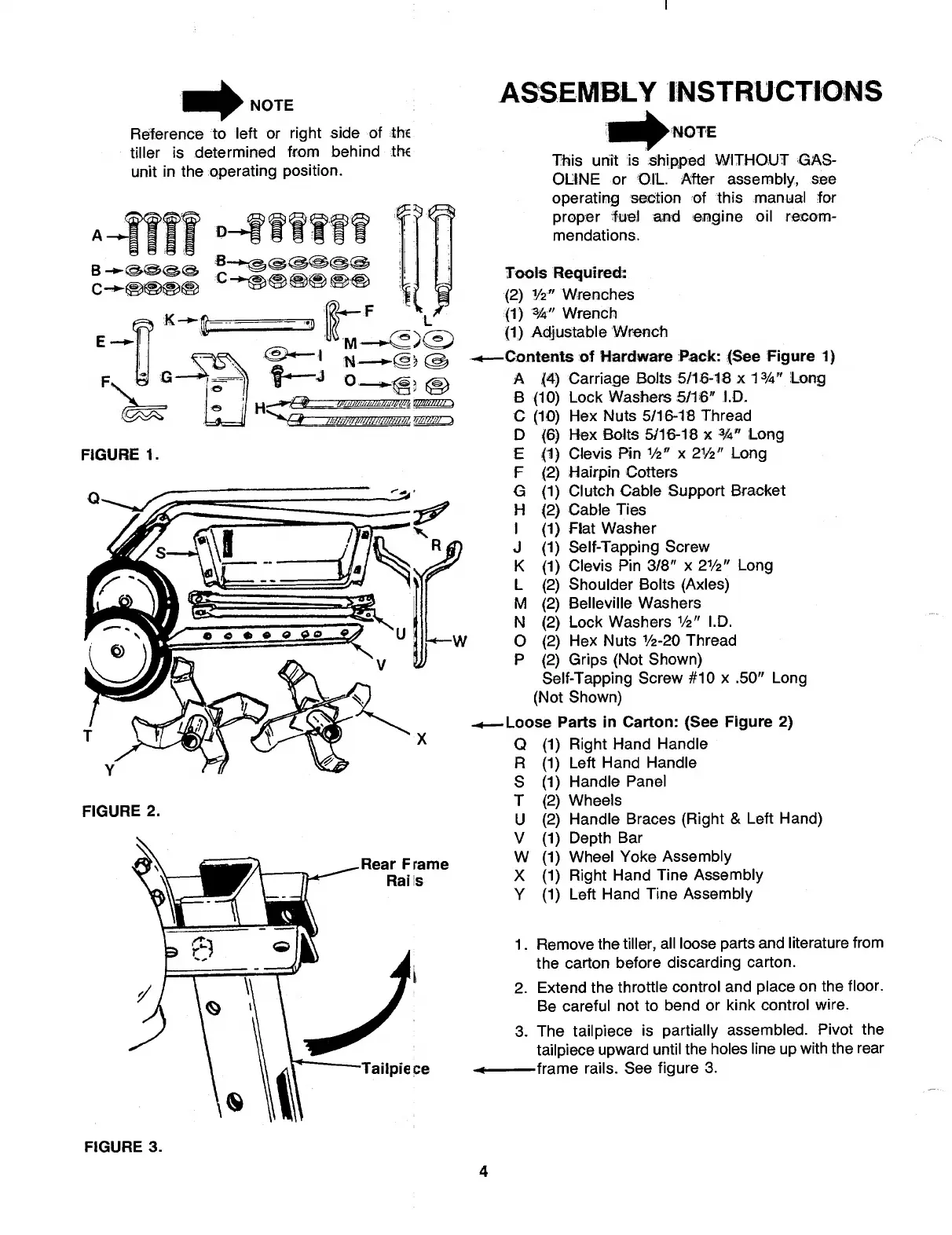

ASSEMBLY INSTRUCTIONS
This unit is Shipped WITHOUT GAS¬
OLINE or OIL. After assembly, see
operating section of this manual for
proper fuel and engine oil recom¬
mendations.
Tools Required:
(2) V 2 " Wrenches
(1) %" Wrench
(1) Adjustable Wrench
—Contents of Hardware Pack: (See Figure 1)
A (4) Carriage Bolts 5/16-18 x 1 %" Long
B (10) Lock Washers 5/16" ID.
C (10) Hex Nuts 5/16-18 Thread
D (6) Hex Bolts 5/16-18 x W Long
E (1) Clevis Pin W x 2 V 2 " Long
F (2) Hairpin Cotters
G (1) Clutch Cable Support Bracket
H (2) Cable Ties
I (1) Flat Washer
J (1) Self-Tapping Screw
K (1) Clevis Pin 3/8" x 2V 2 " Long
L (2) Shoulder Bolts (Axles)
M (2) Belleville Washers
N (2) Lock Washers V 2 " I.D.
O (2) Hex Nuts V 2-20 Thread
P (2) Grips (Not Shown)
Self-Tapping Screw #10 x .50" Long
(Not Shown)
—Loose Parts in Carton: (See Figure 2)
Q (1) Right Hand Handle
R (1) Left Hand Handle
S (1) Handle Panel
T (2) Wheels
U (2) Handle Braces (Right & Left Hand)
V (1) Depth Bar
W (1) Wheel Yoke Assembly
X (1) Right Hand Tine Assembly
Y (1) Left Hand Tine Assembly
1. Remove the tiller, all loose parts and literature from
the carton before discarding carton.
2. Extend the throttle control and place on the floor.
Be careful not to bend or kink control wire.
3. The tailpiece is partially assembled. Pivot the
tailpiece upward until the holes line up with the rear
-frame rails. See figure 3.
4
