Tailpiece

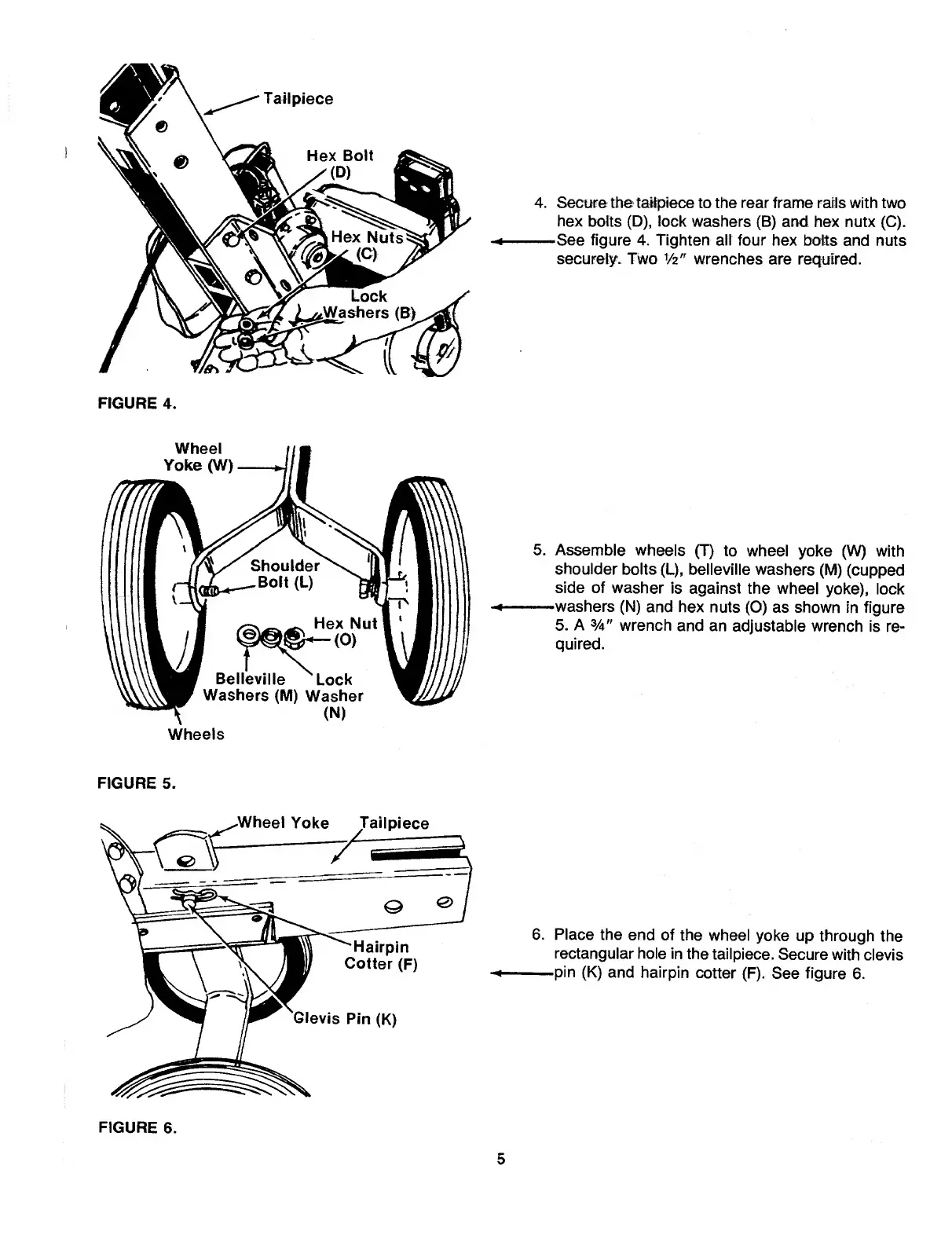

4. S ecure the tailpiece to the rear frame rails with two
hex bolts (D), lock washers (B) and hex nutx (C).
—See figure 4. Tighten all four hex bolts and nuts
securely. Two Vz" wrenches are required.
FIGURE 4.
5. A ssemble wheels (T) to wheel yoke (W) with
shoulder bolts (L), belleville washers (M) (cupped
side of washer is against the wheel yoke), lock
—washers (N) and hex nuts (O) as shown in figure
5. A %" wrench and an adjustable wrench is re¬
quired.
FIGURE 5.
6. P lace the end of the wheel yoke up through the
rectangular hole in the tailpiece. Secure with clevis
—pin (K) and hairpin cotter (F). See figure 6.
