Model 310

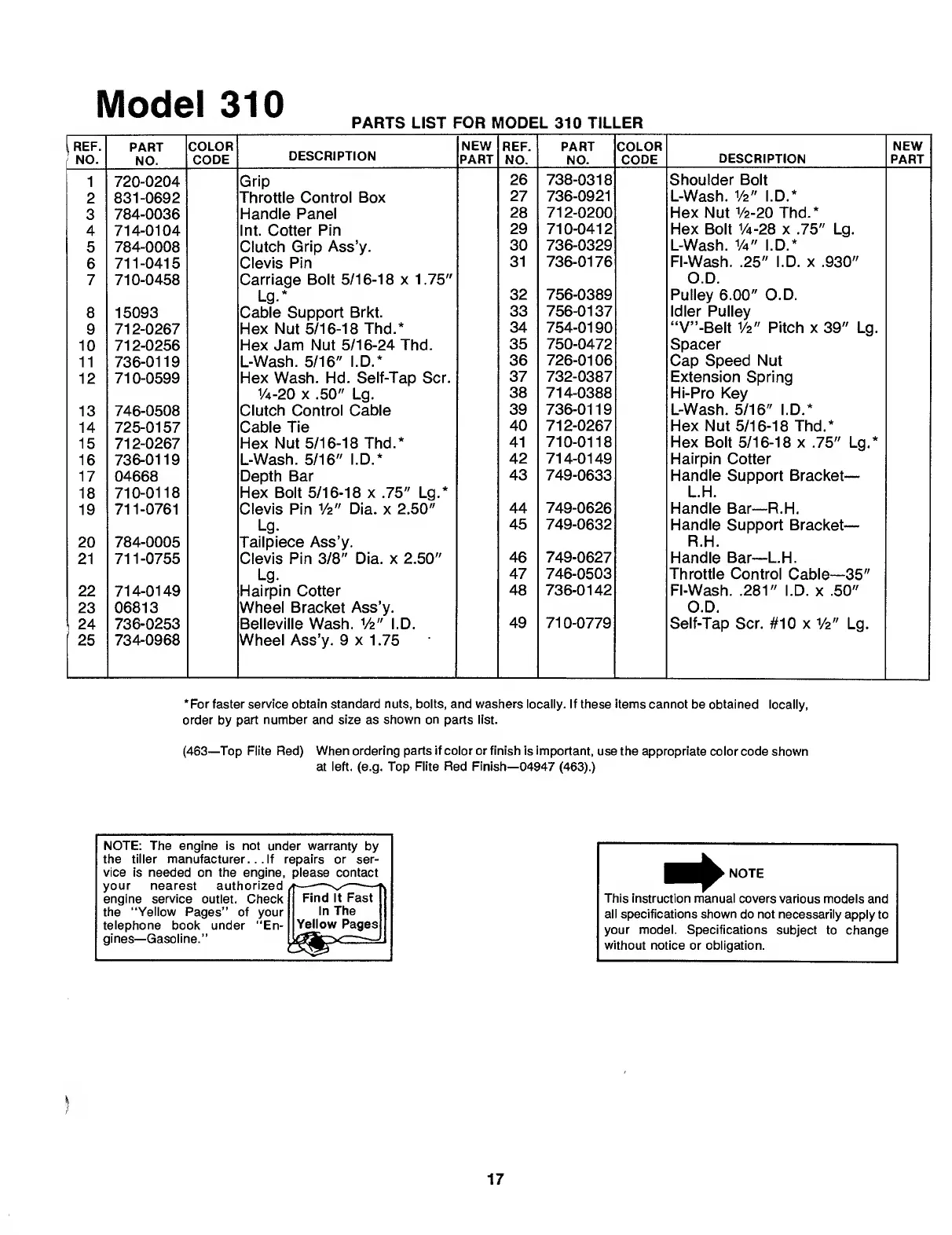

PARTS LIST FOR MODEL 310 TILLER
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1 720-0204
Grip
26
738-0318
Shoulder Bolt
2
831-0692 Throttle Control Box
27
736-0921 L-Wash. y 2 " I.D.*
3
784-0036
Handle Panel
28
712-0200 Hex Nut 1/2-20 Thd.*
4 714-0104
Int. Cotter Pin
29 710-0412
Hex Bolt 1/4-28 x .75" Lg.
5 784-0008
Clutch Grip Ass’y.
30 736-0329 L-Wash. 1 / 4 " I.D.*
6
711-0415 Clevis Pin
31 736-0176 FI-Wash. .25" I.D. x .930"
7 710-0458
Carriage Bolt 5/16-18 x 1.75"
O.D.
Lg.*
32
756-0389
Pulley 6.00" O.D.
8 15093
Cable Support Brkt.
33 756-0137
Idler Pulley
9
712-0267 Hex Nut 5/16-18 Thd.*
34
754-0190 “V”-Belt 1 / 2 " Pitch x 39" Lg.
10
712-0256
Hex Jam Nut 5/16-24 Thd.
35 750-0472 Spacer
11 736-0119
L-Wash. 5/16" I.D.*
36 726-0106
Cap Speed Nut
12
710-0599 Hex Wash. Hd. Self-Tap Scr.
37 732-0387
Extension Spring
1/4-20 x .50" Lg.
38
714-0388
Hi-Pro Key
13
746-0508
Clutch Control Cable
39 736-0119
L-Wash. 5/16" I.D.*
14
725-0157
Cable Tie
40 712-0267
Hex Nut 5/16-18 Thd.*
15
712-0267 Hex Nut 5/16-18 Thd.*
41
710-0118
Hex Bolt 5/16-18 x .75" Lg.*
16
736-0119
L-Wash. 5/16" I.D.*
42
714-0149 Hairpin Cotter
17 04668
Depth Bar
43
749-0633
Handle Support Bracket—
18
710-0118 Hex Bolt 5/16-18 x .75" Lg.*
L.H.
19
711-0761
Clevis Pin Vz" Dia. x 2.50"
44
749-0626
Handle Bar—R.H.
Lg-
45 749-0632
Handle Support Bracket—
20
784-0005
Tailpiece Ass’y-
R.H.
21 711-0755
Clevis Pin 3/8" Dia. x 2.50"
46 749-0627
Handle Bar—L.H.
Lg-
47
746-0503
Throttle Control Cable—35"
22 714-0149
Hairpin Cotter
48 736-0142
FI-Wash. .281" I.D. x .50"
23
06813 Wheel Bracket Ass’y.
O.D.
24 736-0253 Belleville Wash. V 2 " I.D.
49 710-0779
Self-Tap Scr. #10 x 1 / 2 " Lg.
25
734-0968 Wheel Ass’y. 9 x 1.75
*For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally,
order by part number and size as shown on parts list.
(463—Top Flite Red) When ordering parts if color or finish is important, use the appropriate color code shown
at left. (e.g. Top Flite Red Finish—04947 (463).)
NOTE: The engine is not under warranty by
the tiller manufacturer...If repairs or ser¬
vice is needed on the engine, please contact
your nearest authorized
engine service outlet. Check
the “Yellow Pages” of your
telephone book under “En¬
gines—Gasoline.”
Find It Fast
In The
Yellow Pages
This instruction manual covers various models and
all specifications shown do not necessarily apply to
your model. Specifications subject to change
without notice or obligation.
17
