Controlsand Features
4
Aug
Chute Control
Chute
Assembly
Auger
Primer
Throttle
Control
Choke
Control
OU Drain
Gasoline
Electric

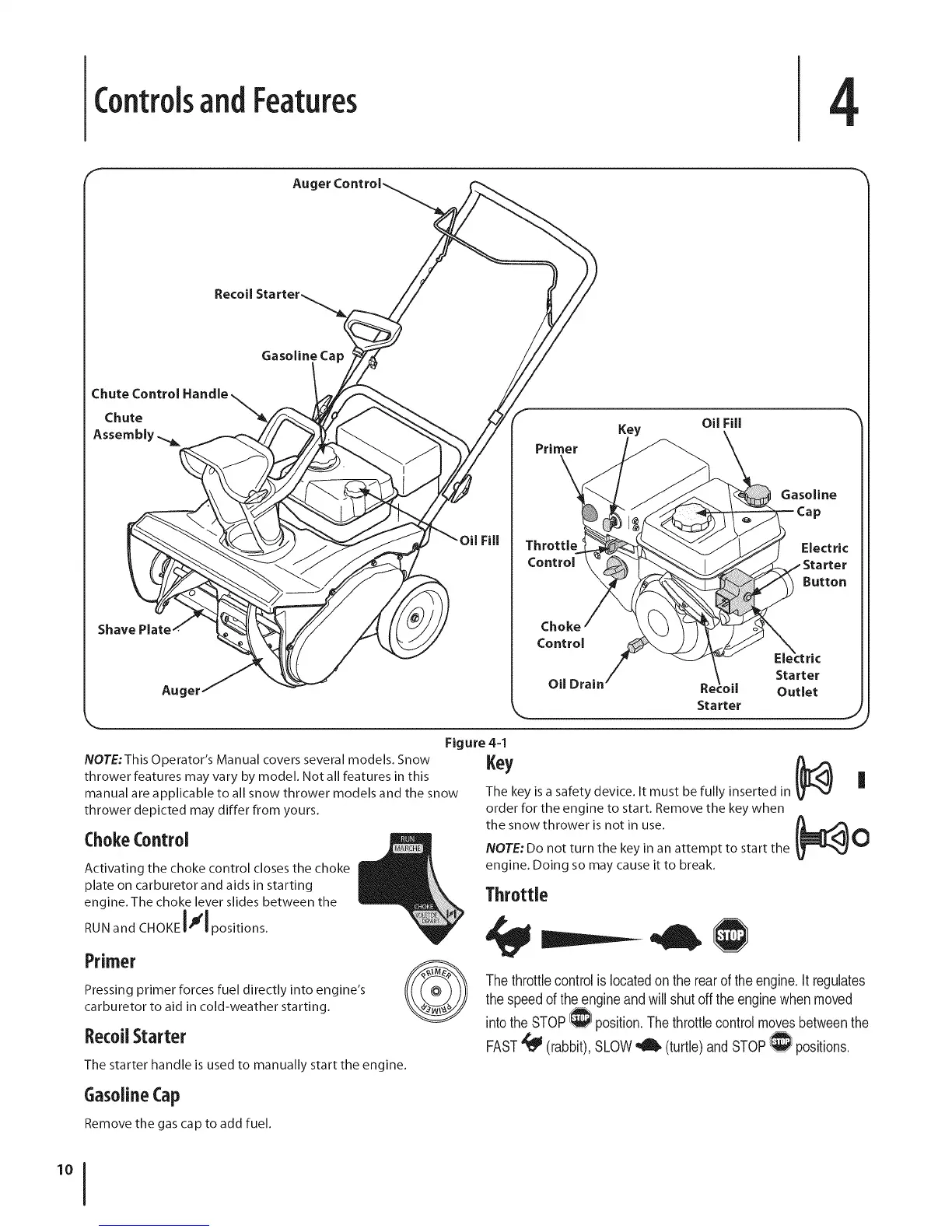

Figure 4=1
NOTE:This Operator's Manual covers several models. Snow
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
ChokeControl
Activating the choke control closes the choke
plate on carburetor and aids in starting
engine. The choke lever slides between the
RUN and CHOKE I °t_'1positions.
Primer
Pressing primer forces fuel directly into engine's
carburetor to aid in cold-weather starting.
RecoilStarter
The starter handle is used to manually start the engine.
The key is a safety device. It must be fully inserted in
order for the engine to start. Remove the key when
the snow thrower is not in use. I_ 0
NOTE: Do not turn the key in an attempt to start the
engine. Doing so may cause it to break.
Throttle
Thethrottlecontrolis locatedon therearof theengine.It regulates
thespeedof theengineandwill shutoff theenginewhenmoved
intotheSTOP_ position.Thethrottlecontrolmovesbetweenthe
FAST_ (rabbit),SLOW_ (turtle)andSTOP_i_ positions.
6asoline Cap
Remove the gas cap to add fuel.
'°1
