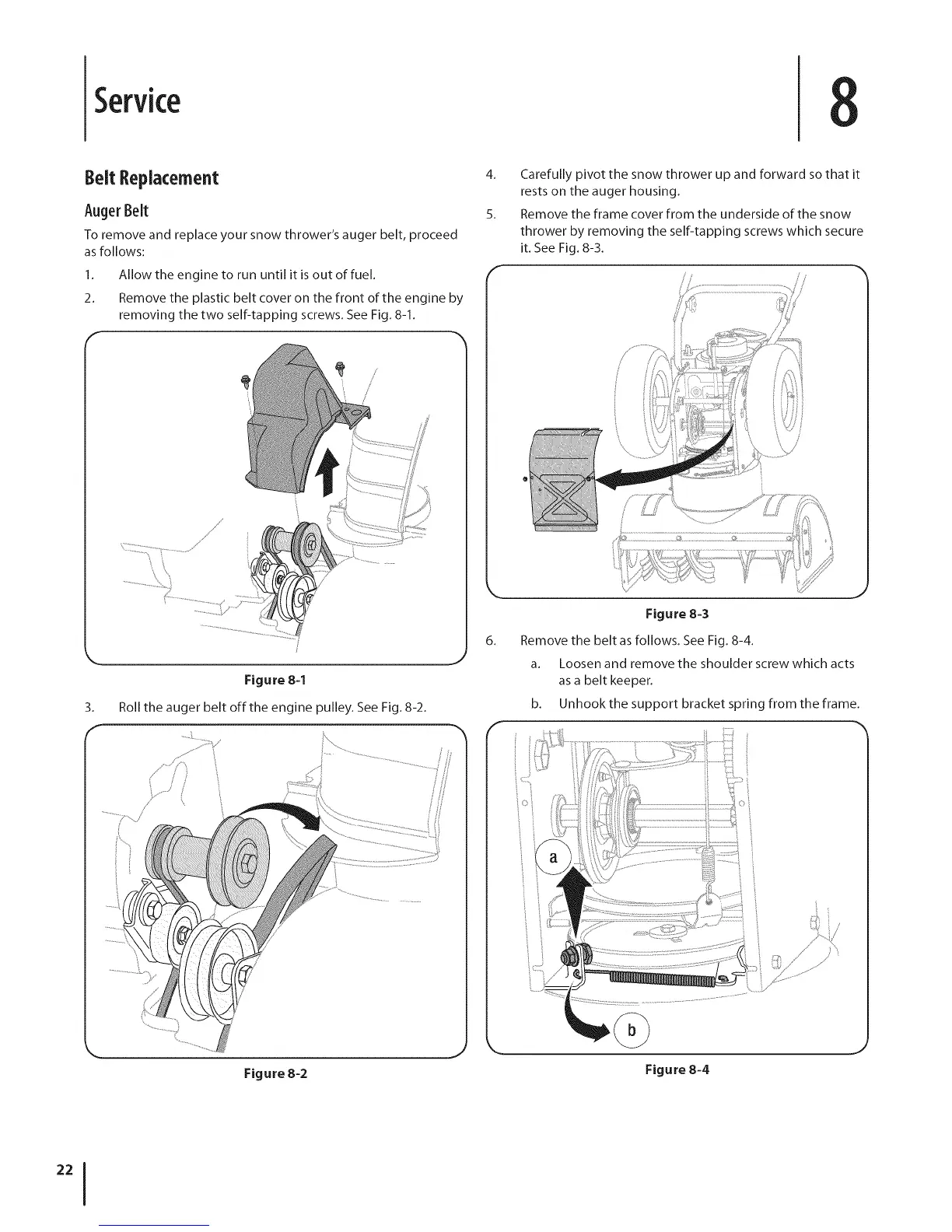

Service
Belt Replacement
Auger Belt
To remove and replace your snow thrower's auger belt, proceed
as follows:
1. Allow the engine to run until it is out of fuel.
2. Remove the plastic belt cover on the front of the engine by
removing the two self-tapping screws. See Fig. 8-1.
\ x
4. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.
5. Remove the frame cover from the underside of the snow
thrower by removing the self-tapping screws which secure
it. See Fig. 8-3.
6,
Figure 8-3
Remove the belt as follows. See Fig. 8-4.
a. Loosen and remove the shoulder screw which acts
as a belt keeper.
b. Unhook the support bracket spring from the frame.
Figure 8-2
Figure 8-4
