7Section 2 — ASSembly & Set-Up
Chute Control Cable Routing
(If Equipped)
For units equipped with chute cables, ensure
they are routed properly. Chute control cables
are routed through a single wire guide (a) on
top of the engine and/or through two wire
guides (b) located on the left side of the unit.
NOTE: For smoothest operation, cables should
all be to the left of the chute directional control
rod.
NOTE: The number of cables routed through
the wire guides will depend on your model.
1. Locate cable guide(s) and perform the
following:
• Units with Top Mounted Wire Guide
(a) - Check that all cables are properly
routed through cable guide on top of
engine. See Figure 2-8.
• Units with Side Mounted Wire Guides
(b) - Check that all cables are properly
routed through the wire guide below
the left side of the engine and the wire
guide below the chute control head.
See Figure 2-8.
(b)
(a)
(c)
(c)

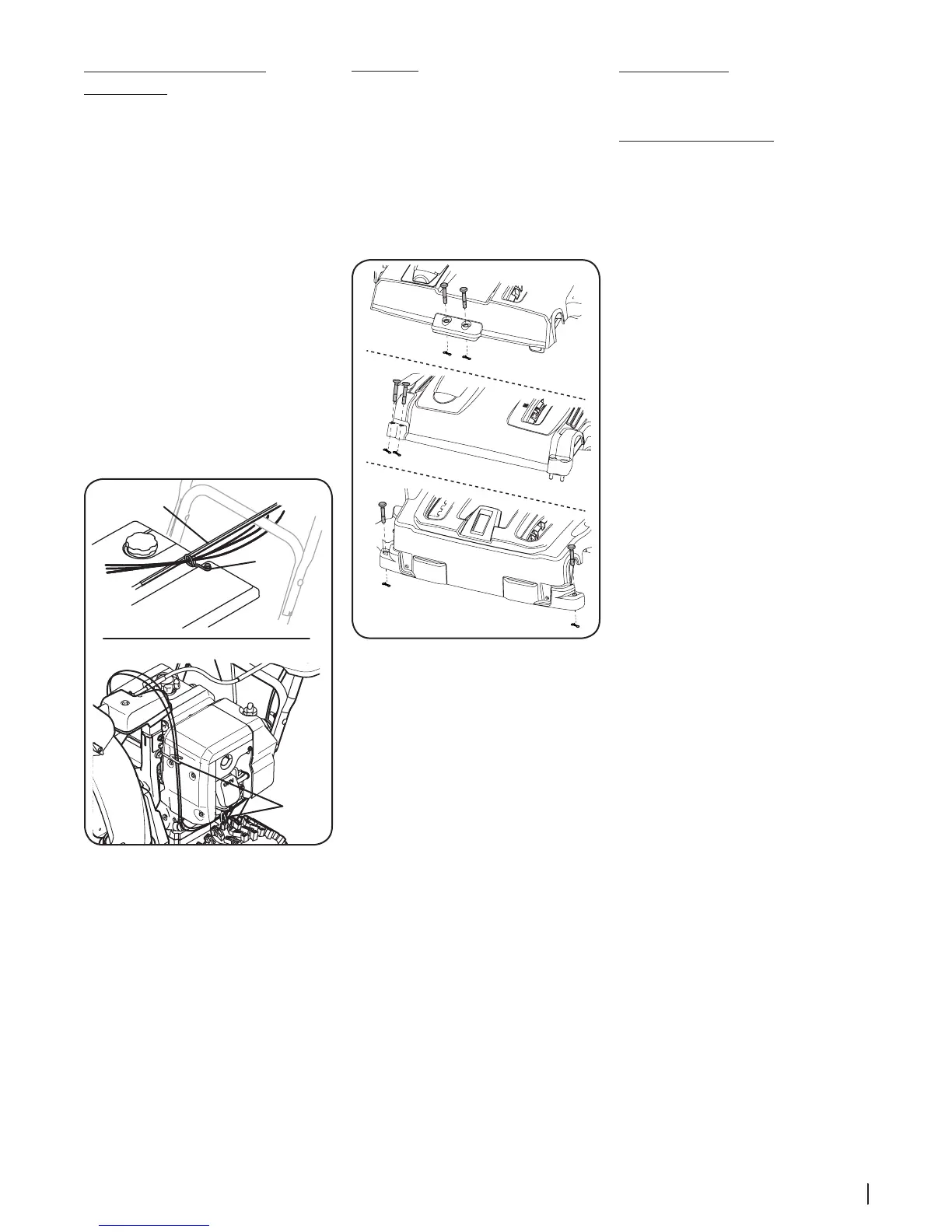

Figure 2-8
Shear Pins
Replacement auger shear pins and cotter pins
are included with this manual.
On select units, holes are provided in the rear
of the handle panel for shear pin (a) and bow-
tie cotter pin (b) storage as shown in Figure 2-9.
If not provided, make sure to store them in a
safe place until needed.
Refer to Controls and Operation Section
for more information regarding shear pin
replacement.
(a)
(b)
(a)
(b)
(a)
(b)
Figure 2-9
NOTE: Three stage units come with four (4)
shear pins and bow-tie cotter pins.
Adding Fuel & Oil
Refer to the Engine Operator’s Manual for
information on adding fuel and oil.
Chute Assembly Options
Refer to Figure 2-1 and proceed to your
applicable Chute Control Style on pages 8-13.
