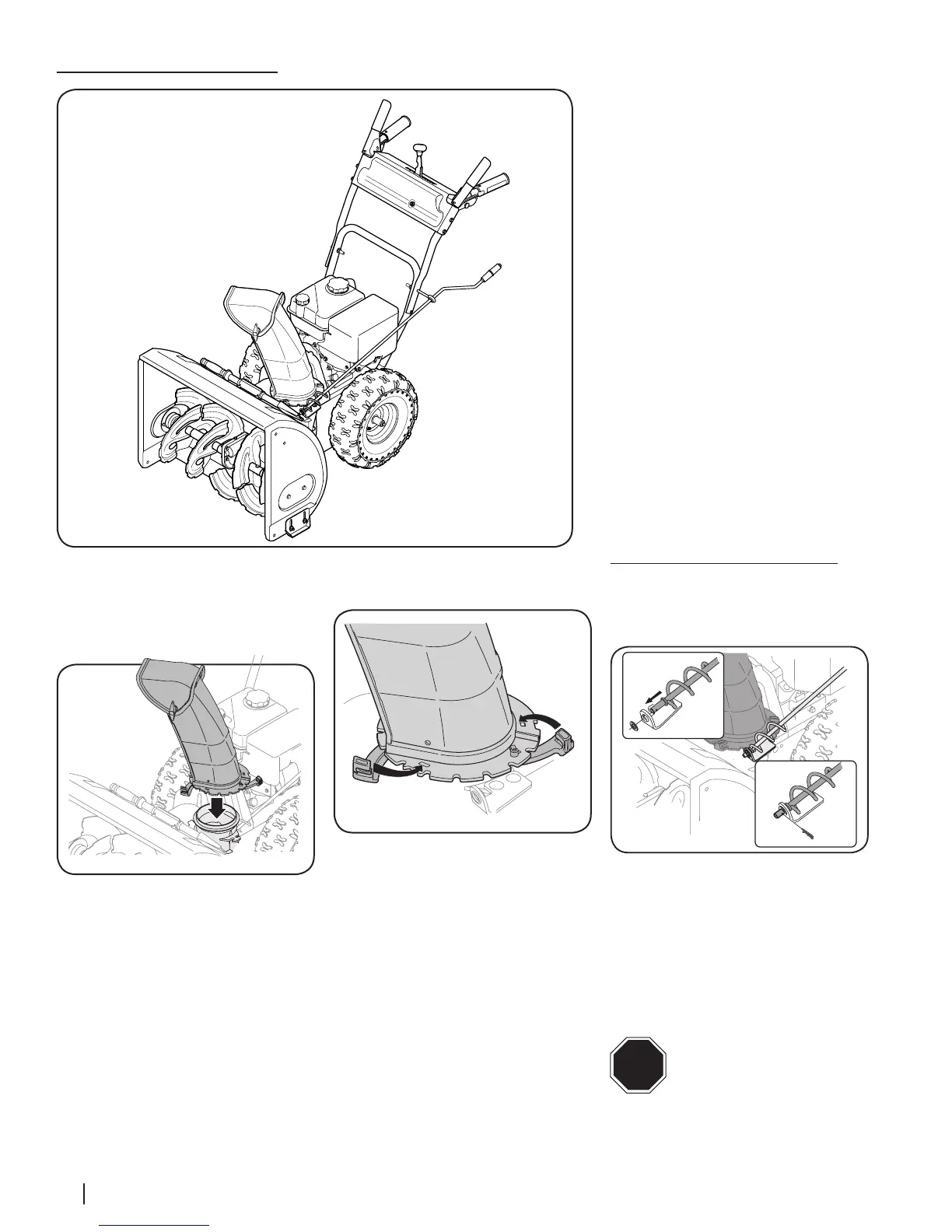

8 Section 2 — ASSembly & Set-Up
1. Position the chute assembly over the base,
seated securely on adapter. See Figure
2-11.
Figure 2-11
2. Close flange keepers to secure chute
assembly to chute base. Flange keepers
will click into place when properly secure.
See Figure 2-12.
Figure 2-12
NOTE: Ensure the lower chute is secured
to the flange on the chute base. The
lower edge of the chute keeper should
be positioned below the flange on the
chute base after being clicked into place.
If flange keepers will not easily click into
place, use palm of your hand to apply
swift, firm pressure to the back of each.
Chute Directional Control Assembly
1. Remove plastic cap (if present), flat washer
(a) and hairpin clip (b) from end of chute
directional control assembly.
See Figure 2-13.
Figure 2-13
2. Insert end of chute directional control
assembly into lower bracket and secure
chute directional control assembly with
flat washer (a) and hairpin clip (b) removed
in Step 1. If necessary, lower bracket
can be adjusted. Refer to Chute Bracket
Adjustment in Service section
on page 13.
STOP
STOP! Continue to Adjustments -
(page 13).
Standard Side Crank Chute Control
Figure 2-10
