MTD 615 - Page 23

23

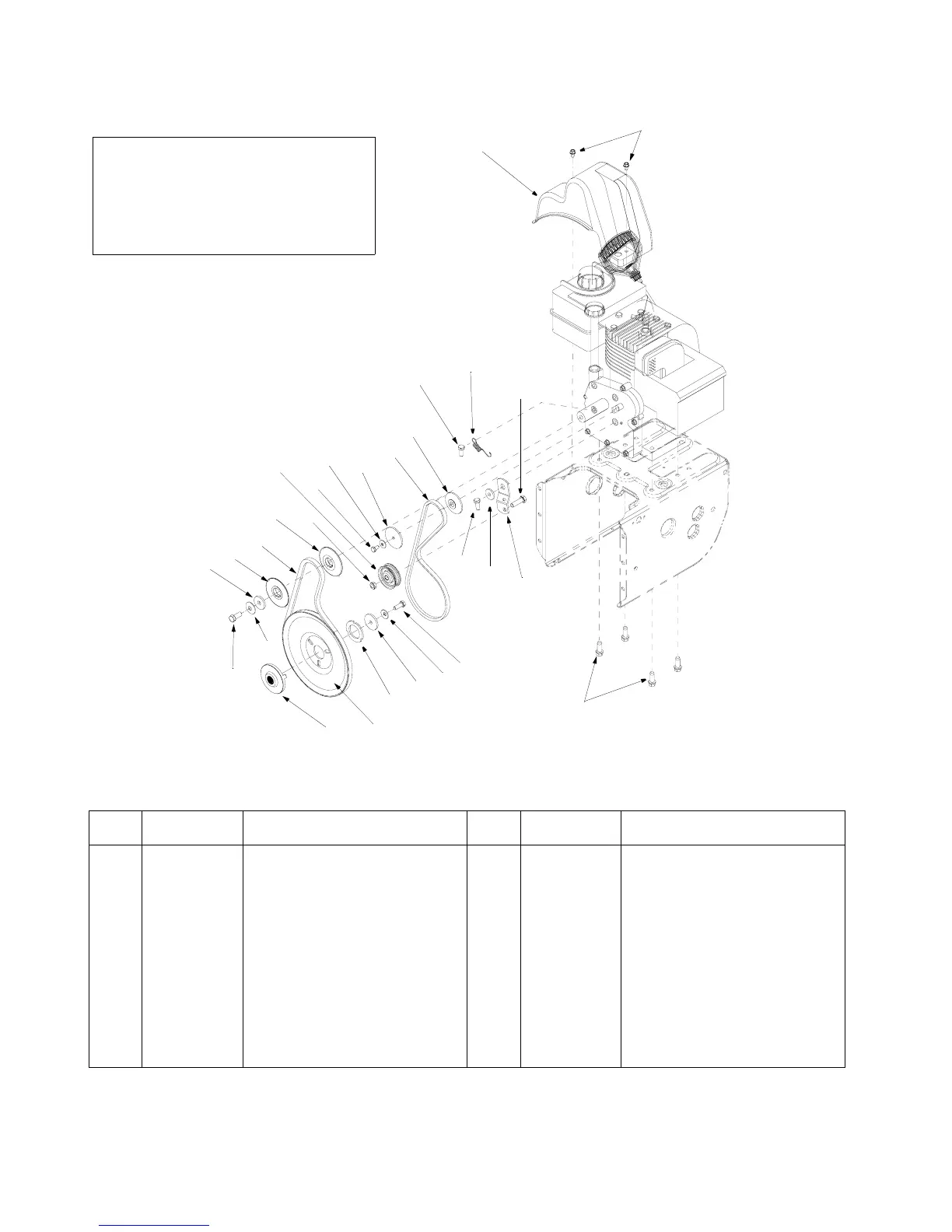

Model Series 615
1
2
3
4
5
6
7
4
8
9
10
11
12
13
14
15
16
17
18
19
20
16
21
22
23
24
25
26
Ref.
No.
Part
No.
Description
1. 710-1652 Hex Washer Screw 1/4-20 x.5
2. 731-1324 Belt Cover
3. 732-0339 Extension Spring
4. 710-0627 Hex Screw 5/16-24 x .75
5. 710-3005 Hex Cap Screw 3/8-16 x 1.25
6. 05896A Drive Clutch Bracket
7. 748-0234 Shoulder Spacer
8. 756-0985 Pulley Half
9. 754-0343 V-Belt
10. 756-0984 Pulley Half
11. 736-0270 Bell Washer
12. 710-0230 Hex Cap Screw 1/4-28 x .50
13. 756-0313 Flat Idler
14. 710-1245B Lock Cap Screw 5/16-24
15. 712-0181 Lock Jam Nut 3/8-16
16. 756-0569 Pulley Half
17. 736-0242 Bell Washer
18. 736-0505 Flat Washer
19. 736-0507 Washer
20. 754-0430B Belt
21. 756-0967 Auger Pulley
22. 736-0247 Flat Washer
23. 736-0331 Bell Washer
24. 710-0696 Hex Cap Screw 3/8-24
25. 748-0360 Pulley
26. 710-0654A Hex Washer Screw 3/8-16 x 1.0
Ref.
No.
Part
No.
Description
IMPORTANT: For a proper working
machine, use Factory Approved Parts.
V-BELTS are specially designed to engage
and disengage safely. A substitute (non
OEM) V-Belt can be dangerous by not
disengaging completely.
