5

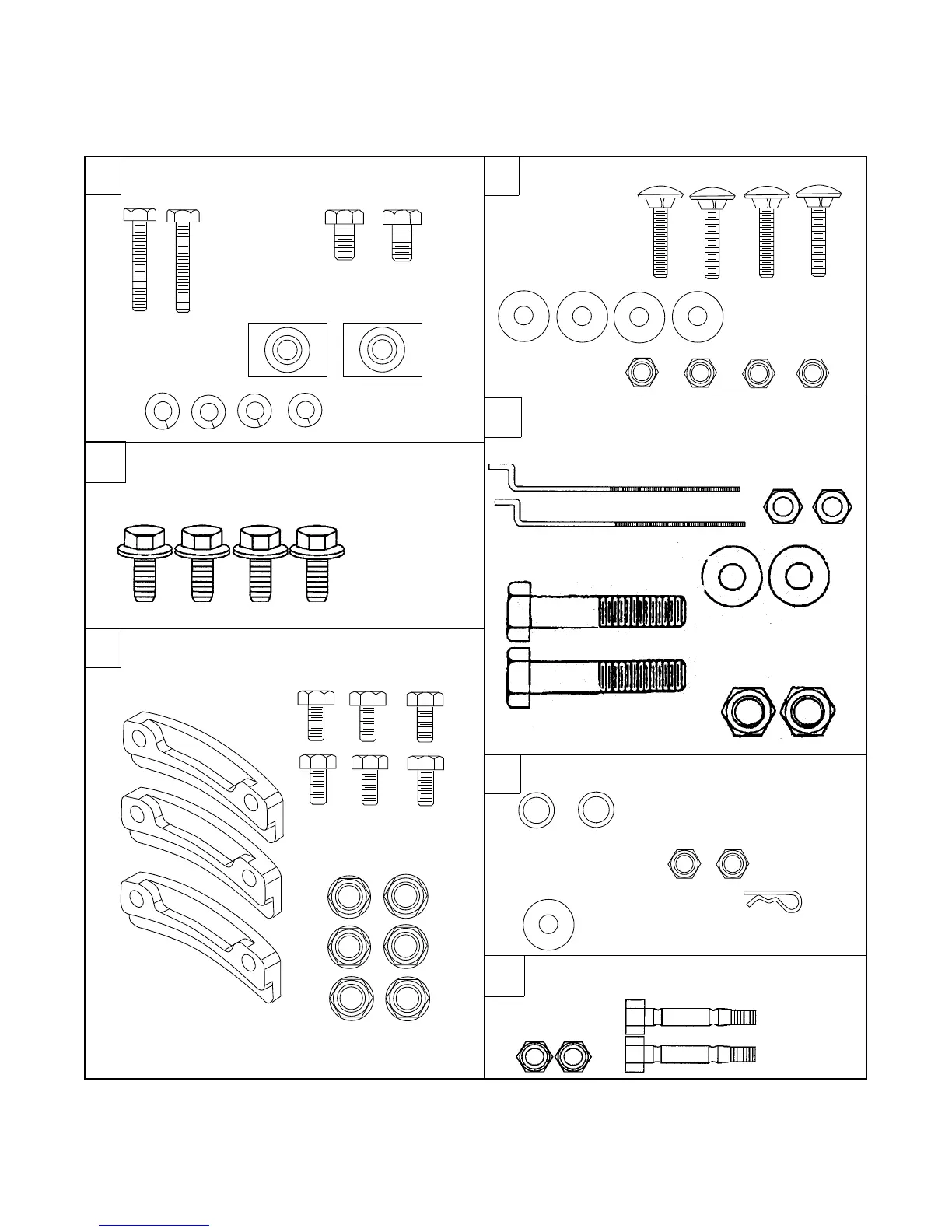

Contents Of Hardware Pack
Lay out the hardware according to the illustration below for identification purposes. Part numbers are shown in
parentheses. (Hardware pack may contain extra items which are not used on your unit.)
NOTE: The augers are secured to the spiral shaft with two shear bolts and hex lock nuts. If you hit a hard foreign
object or an ice jam, the snow thrower is designed so that the bolts may shear. Two replacement shear bolts and
nuts are provided for your convenience. Store in a safe place until needed.
A
B
ATTACHING HANDLE PANEL
C
ATTACHING SPEED SELECTOR PLATE
Self-Tapping Screws
710-0599 (4)
D
ATTACHING CONTROL CABLES AND
Z Fitting
746-0778 (2)
Hex Nuts
712-0121 (2)
F
ATTACHING CHUTE DIRECTIONAL CONTROL
G
Hex Lock Nuts
712-0429 (2)
REPLACEMENT SHEAR BOLTS
Hex Bolts
710-0890A (2)
Hex Bolts
(710-04039)
5/16-18 x 2”
Handle Tabs
(784-5599)
ATTACHING THE HANDLES
Hex Bolts
(710-1880)
5/16-18 x 3/4”
Carriage Bolts
(710-0262)
Cupped Washers
(736-0242)
5/16” I.D.
5/16-18 x 1-1/2”
5/16” Thread
Hex Patch Nuts
(712-3068)
ATTACHING CHUTE ASSEMBLY
Hex Bolts
(710-3015)
Chute Flange
(731-0851A)
Keepers
Hex Lock Nuts
1/4-20 x 3/4”
1/4-20 Thread
(712-3027)
E
Flat Washers
(736-0185)
3/8” I.D. x 5/8” O.D.
Hex Nut
(712-3010)
5/16” Thread
Hair Pin Clip
(714-0104)
Cupped Washers
(736-0242)
5/16” I.D.
Lock Washers
(736-0119)
5/16” I.D.
Hex Screws
710-3103 (2)
Spacer
750-1032 (2)
Hex Top L-Nut
712-0429 (2)
CLUTCH GRIPS
To Next Page
