AIR INTAKE SYSTEMS
24
2b. Disconnect the throttle linkage and return
spring.
See Figure 3.16.
NOTE: The carburetors are not inter-changeable
from one engine model to another. To help pre
-
vent carburetor mix-ups, the engine model num-
ber is stamped on the carburetor by the fuel
nipple.
See Figure 3.17.
3. Unhook the spark plug wire from the clip molded
into the insulator plate.
See Figure 3.18.

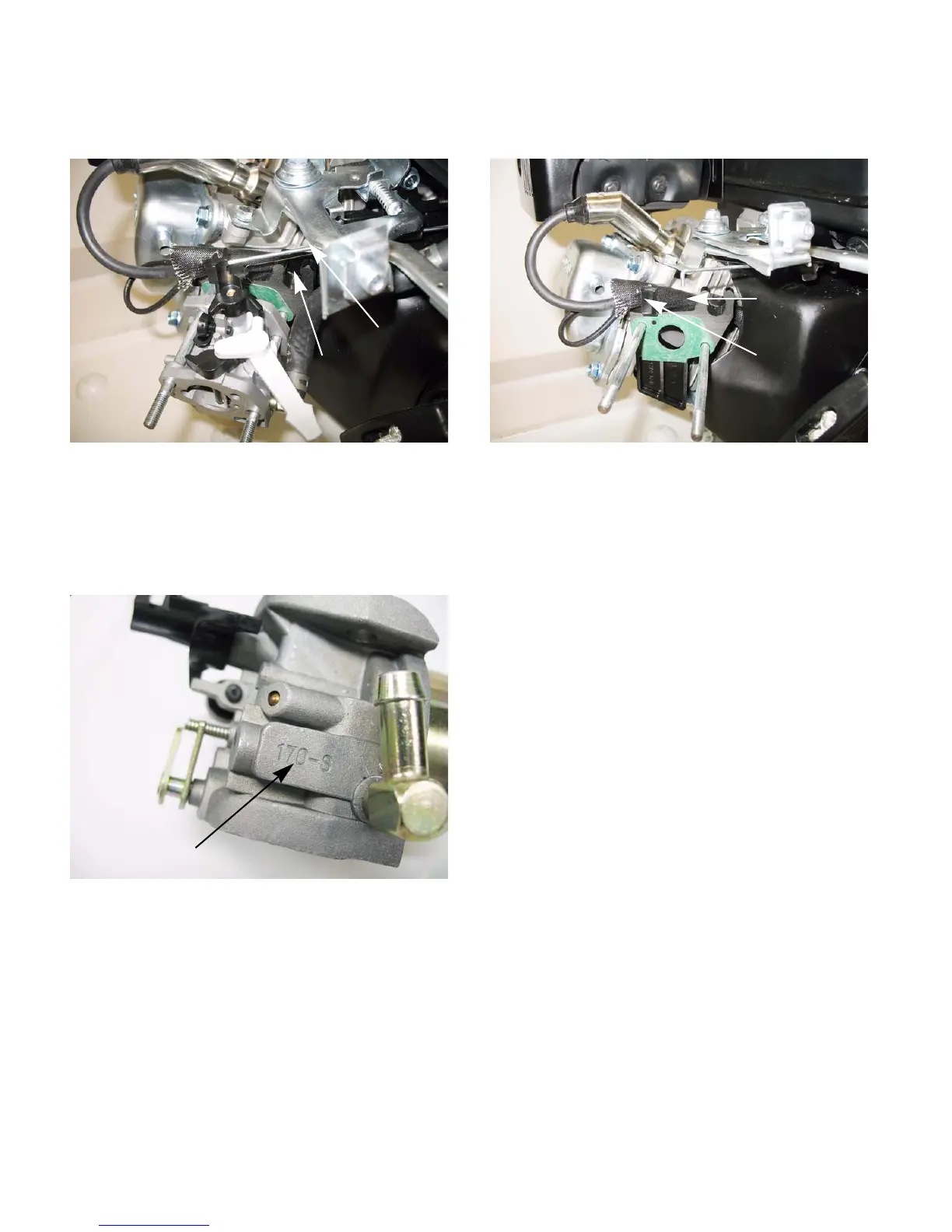

Figure 3.16
Throttle linkage
Return spring
Figure 3.17
Engine model number
Spark plug wire
Clip
Figure 3.18
