AIR INTAKE SYSTEMS
33
NOTE: All summer engines built on or after January 1,
2011 will have a hose from the evaporative emis
-
sions (EVAP) system attached to the control panel
above the breather hose.
See Figure 3.10.
9. Pull the control panel straight off the front of the
engine.
10. Install the control panel by following the previous
steps in reverse order.
NOTE: tighten the carburetor nuts to a torque of 80 - 106
in lbs (9 - 12 Nm).
11. Test run the engine before returning it to service.

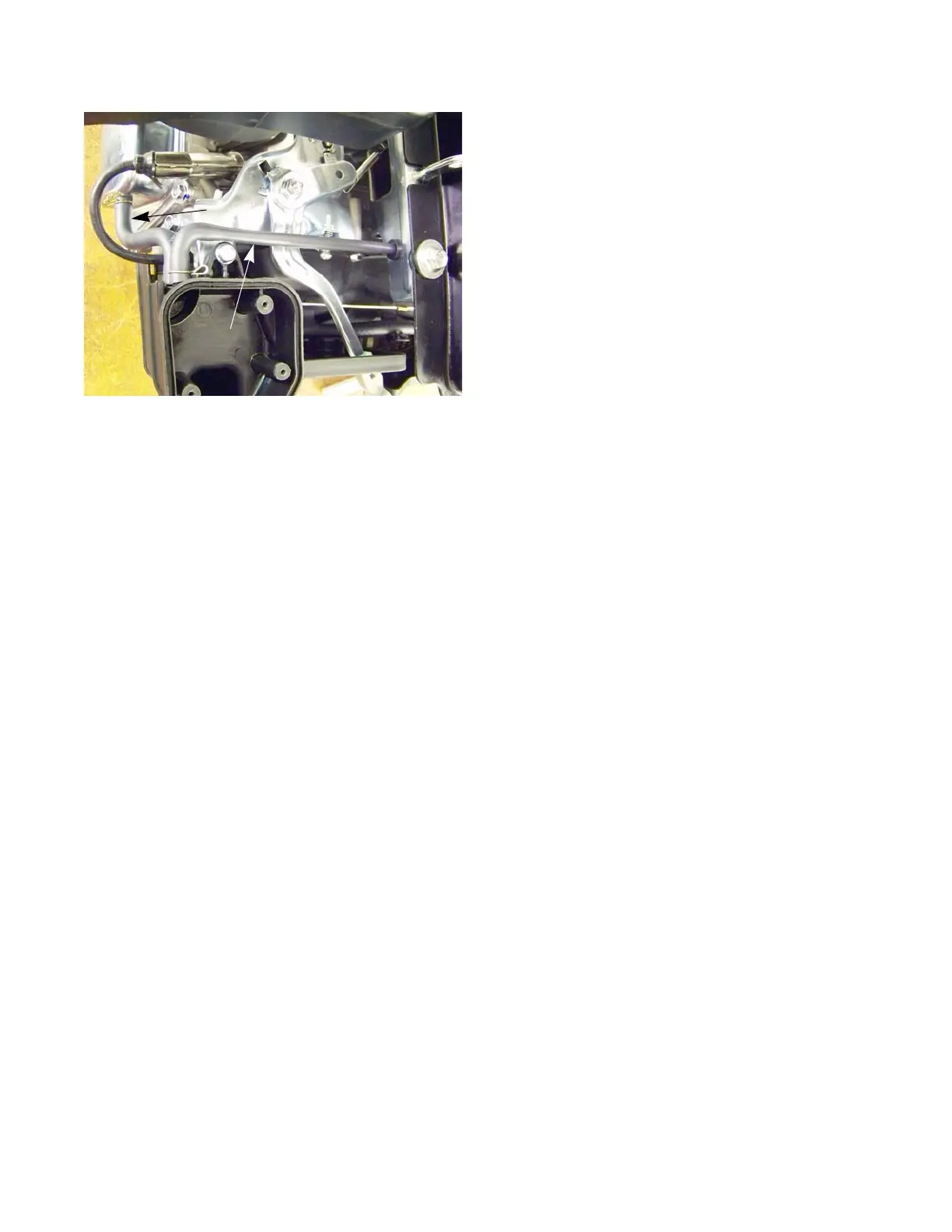

Figure 3.10
Breather hose
EVAP hose
