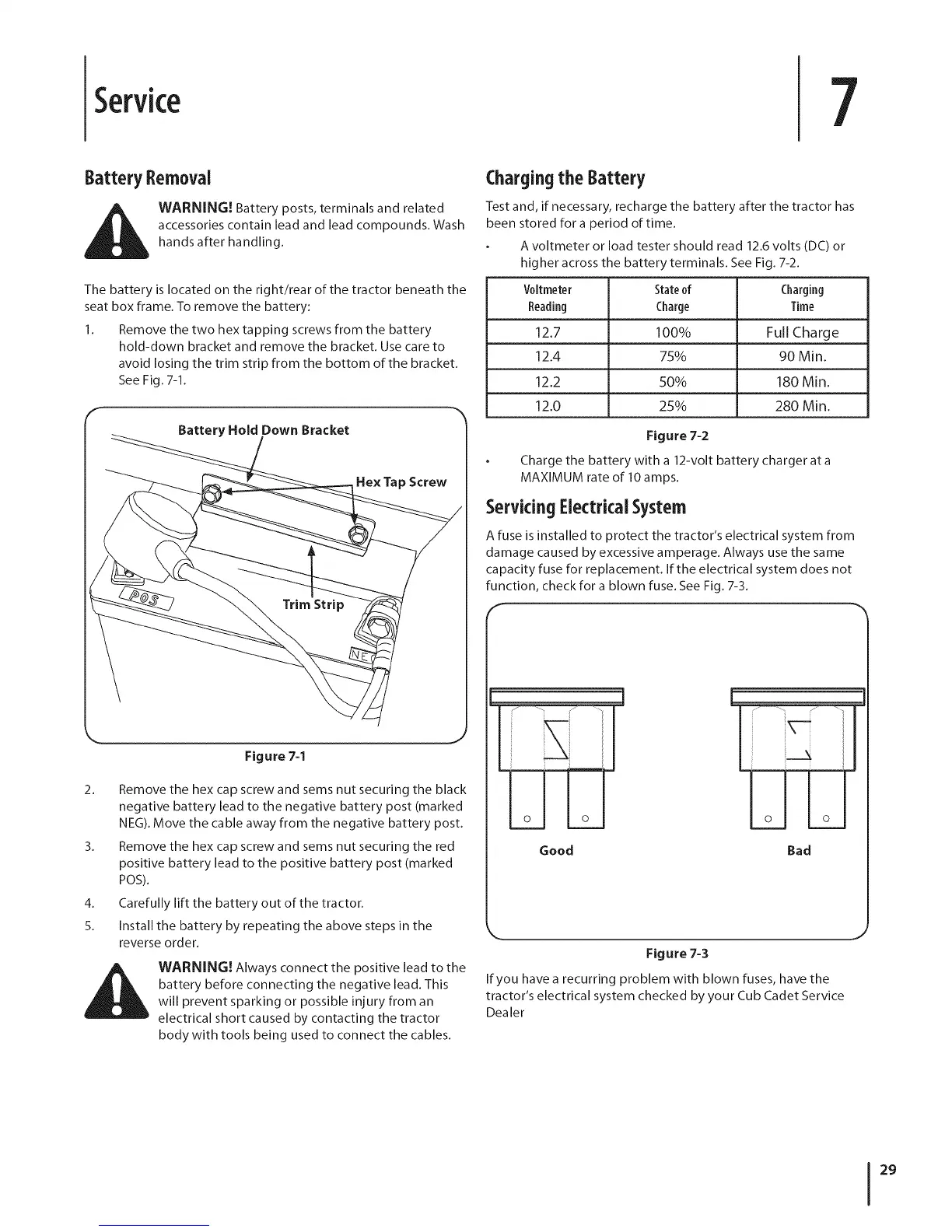

Service
7
Battery Removal
i_ WARNING! Battery posts, terminals and related
accessories contain lead and lead compounds. Wash
hands after handling.
The battery is located on the right/rear of the tractor beneath the
seat box frame. To remove the battery:
1. Remove the two hex tapping screws from the battery
hold-down bracket and remove the bracket. Use care to
avoid losing the trim strip from the bottom of the bracket.
See Fig. 7-1.
He× Tap Screw
Figure 7-1
2. Remove the hex cap screw and sems nut securing the black
negative battery lead to the negative battery post (marked
NEG). Move the cable away from the negative battery post.
3. Remove the hex cap screw and seres nut securing the red
positive battery lead to the positive battery post (marked
POS).
4. Carefully lift the battery out of the tractor.
5. Install the battery by repeating the above steps in the
reverse order.
WARNING! Always connect the positive lead to the
battery before connecting the negative lead. This
will prevent sparking or possible injury from an
electrical short caused by contacting the tractor
body with tools being used to connect the cables.
Chargingthe Battery
Test and, if necessary, recharge the battery after the tractor has
been stored for a period of time.
A voltmeter or load tester should read 12.6 volts (DC) or
higher across the battery terminals. See Fig. 7-2.
Voltmeter Stateof Charging
Reading Charge Time
12.7 100% Full Charge
12.4 75% 90 Min.
12.2 50% 180 Min.
12.0 25% 280 Min.
Figure 7-2
Charge the battery with a 12-volt battery charger at a
MAXIMUM rate of 10 amps.
ServicingElectricalSystem
A fuse is installed to protect the tractor's electrical system from
damage caused by excessive amperage. Always use the same
capacity fuse for replacement. If the electrical system does not
function, check for a blown fuse. See Fig. 7-3.
I O I O
Good Bad
\
Figure 7-3
If you have a recurring problem with blown fuses, have the
tractor's electrical system checked by your Cub Cadet Service
Dealer
J
29
