T65 Series Vertical Shaft Engines
32
Air Filter Housing
To remove the air filter housing:
1. Remove the air filter by following the steps
described in the previous section.

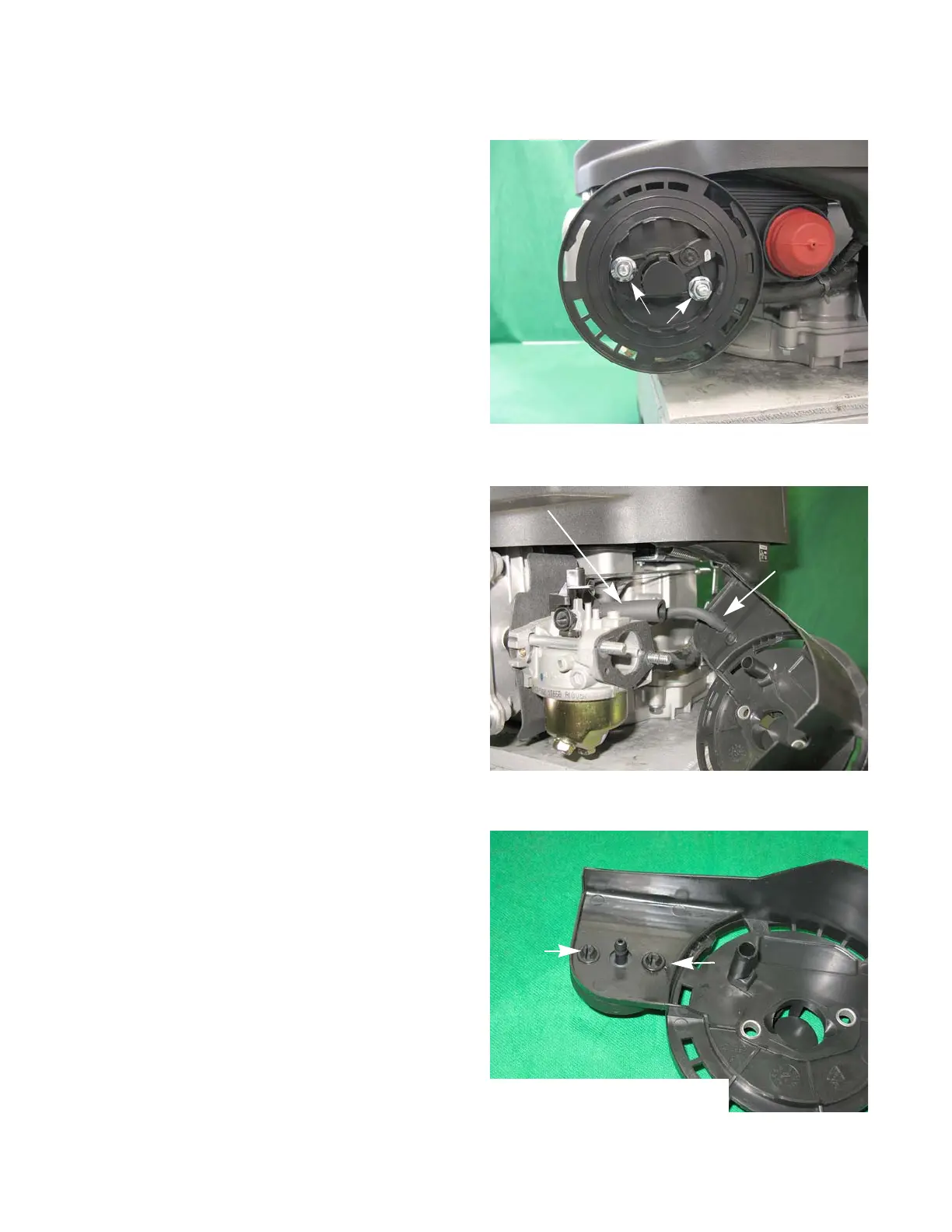

2. Remove the two nuts that hold the air filter body to
the carburetor mounting studs. See Figure 3.3.
3. Disconnect the breather hose. See Figure 3.4.
4. Disconnect the primer line, if equipped. See Figure
3.4.
5. Lift away the filter housing.
6. The primer can be removed from the air filter hous-
ing by squeezing together the two sets of barbs
while pushing the primer out of the housing. See
Figure 3.5.
Figure 3.4
Primer line
Breather hose
Figure 3.5
Squeeze the barbs together,
then push
