MTD T65 Series User Manual

T65 Series Vertical Shaft Engines
50
NOTE: For mower applications, the idle speed is
not normally critical because the operator is
not provided with a throttle control.
15. Check the top no load speed of the engine. See
Figure 4.31.
NOTE: The top no load speed should be 3200 */-
100 rpm.
16. Adjust the top no-load speed by slightly bending the
tab that the governor spring connects to. See Figure
4.32.

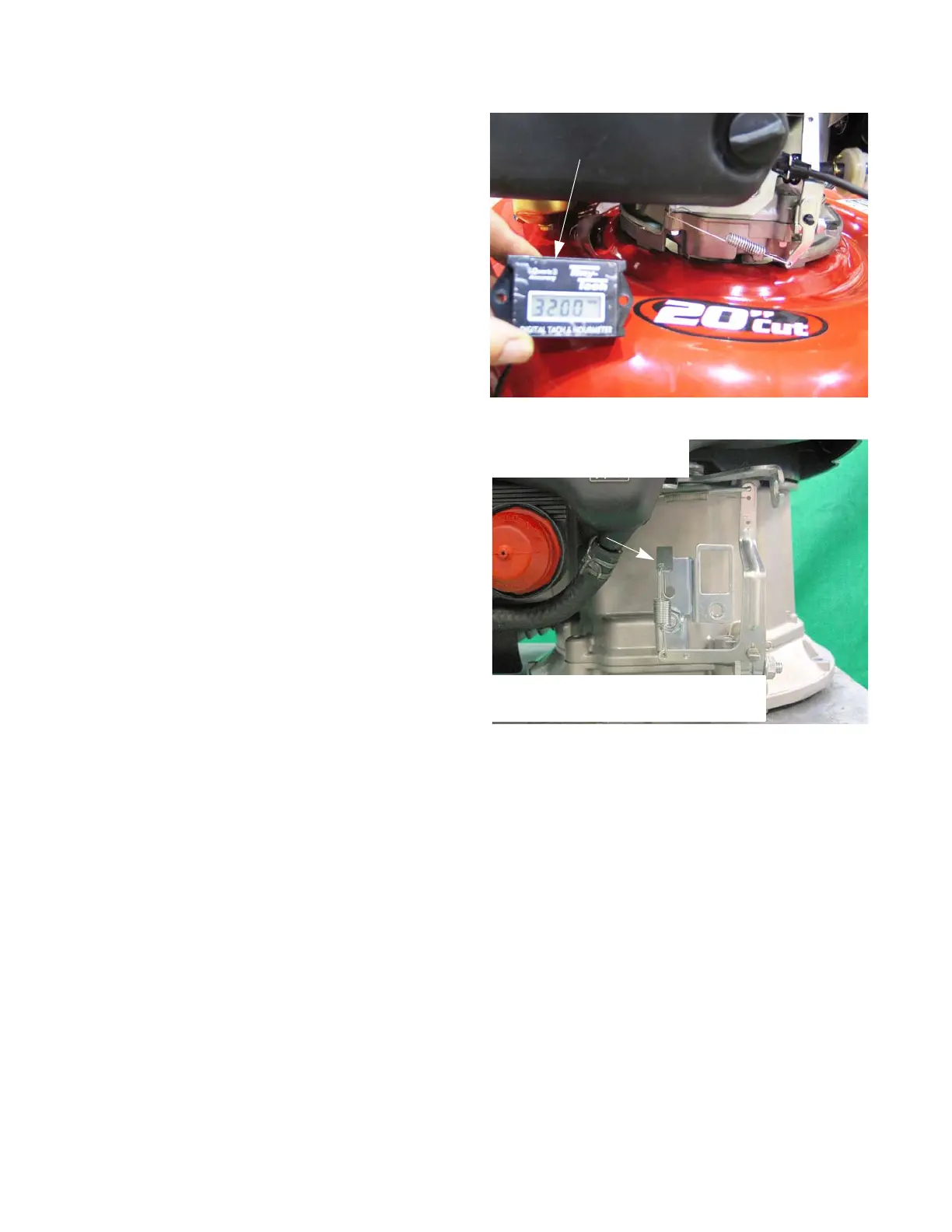

Figure 4.31
Digital tachometer confirms safe
operating speed
Figure 4.32
Increase spring tension to
increase engine speed
Decrease spring tension to decrease
engine speed.
Tab
