Sine Wave 2-8 kHz Series A Filter
19 Part No. INSTR-020 REL. 080310

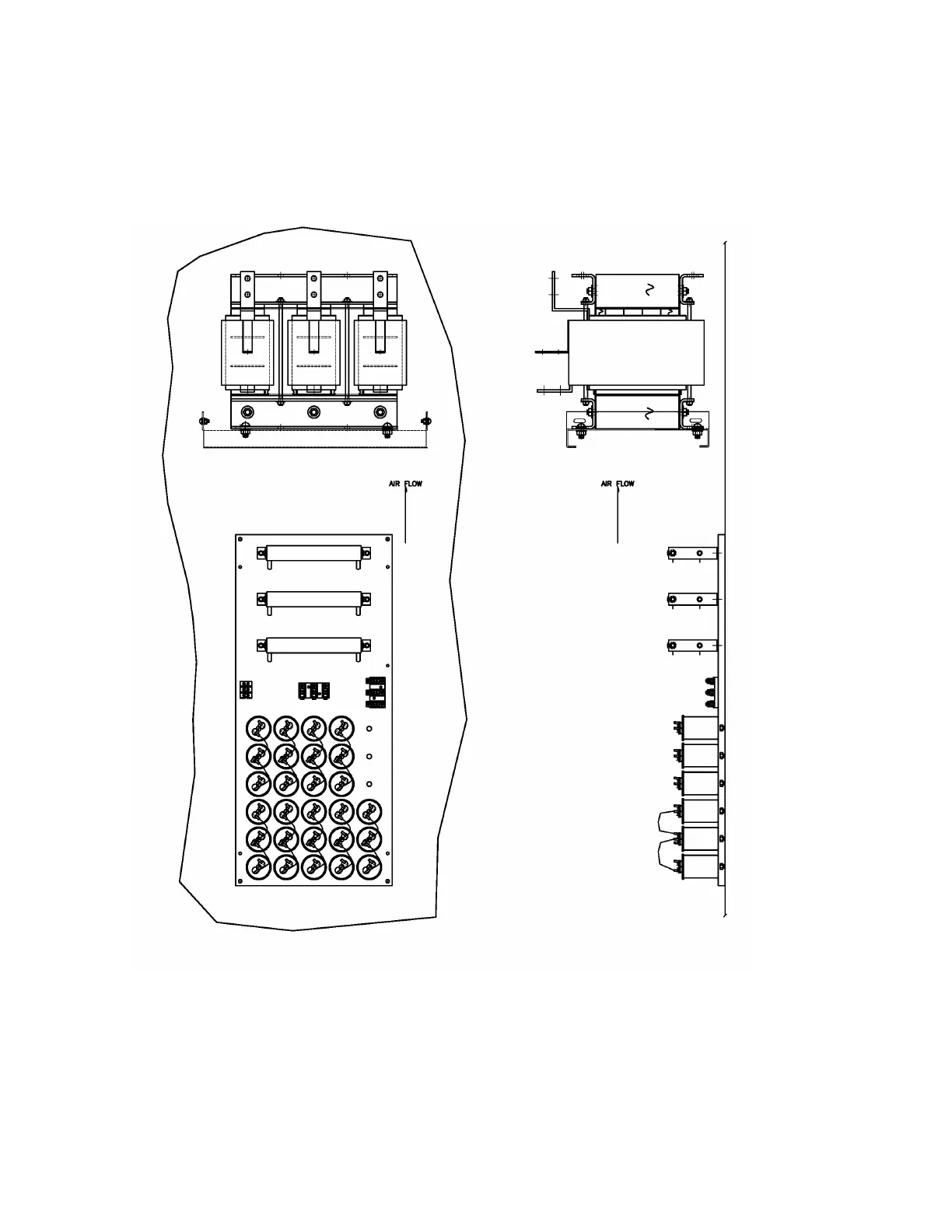

Fig. 6
Vertical MOUNTING OF OPEN REACTOR & RC Panel
600 amp open reactor & RC panel shown in customer provided enclosure and mounting
hardware.
NOTE: Maintain orientation as shown for proper component cooling. Do not place RC panel above
reactor or position capacitors above resistors. RC panel may be mounted horizontally.
