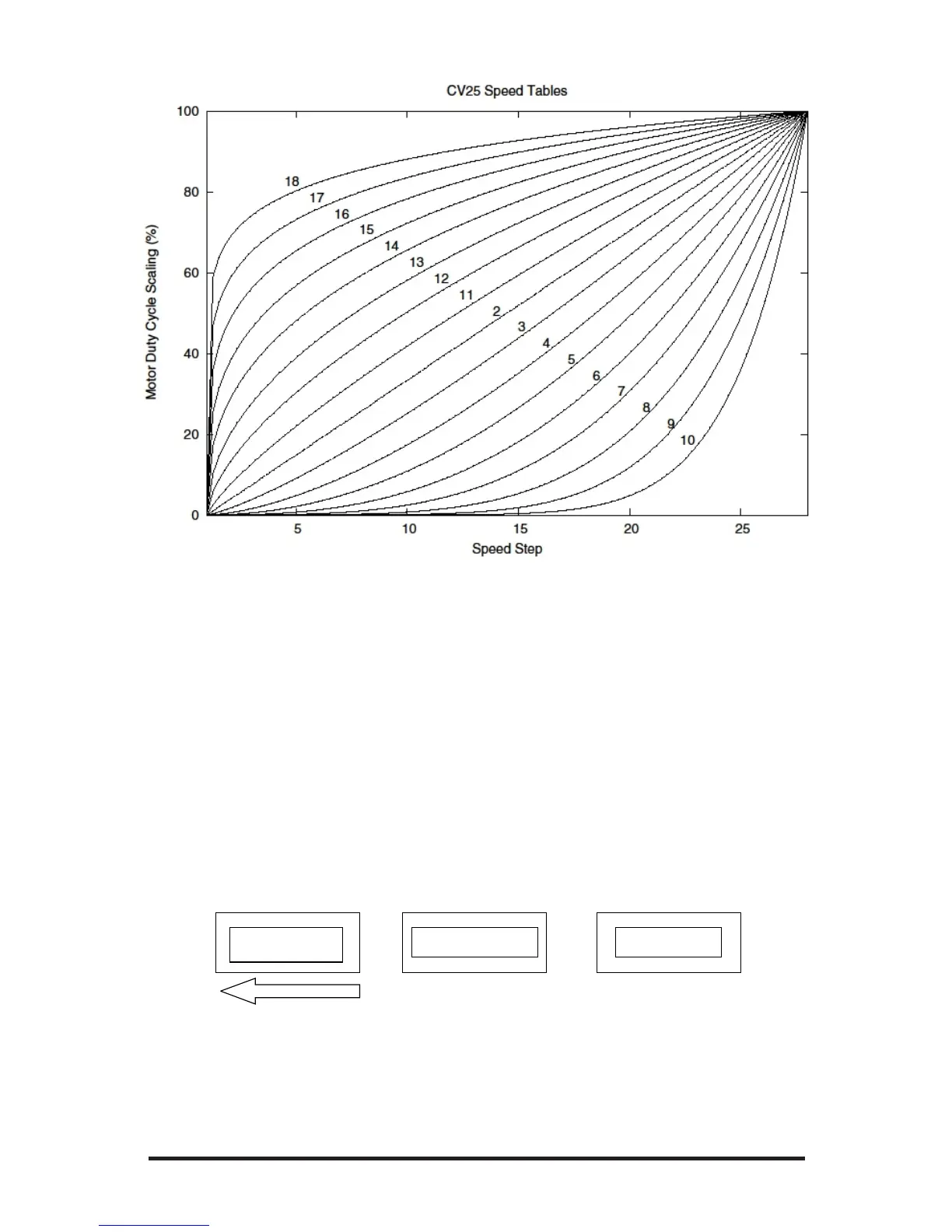

Advanced Consisting

Advanced Consisting follows the NMRA standards. Any values assigned to CV's

21-24 are ignored once the consist is removed (CV19 set to 0).

• Setting the MSB (Bit 7) of CV19 tells the engine that it is facing reverse in

the consist

• Setting CV21 and CV22 determine which F Functions the consist

responds to

• See diagram below for example

Normal Forward Direction of Travel

Engine 1 -

Front

Engine 2 -

Middle

Engine 3 -

Rear

F R F R F R

M.T.H. HO ES44AC PS3E+ Diesel Engine
