Maintenance
104 MTS Landmark™ Tabletop Load Units - Product Information

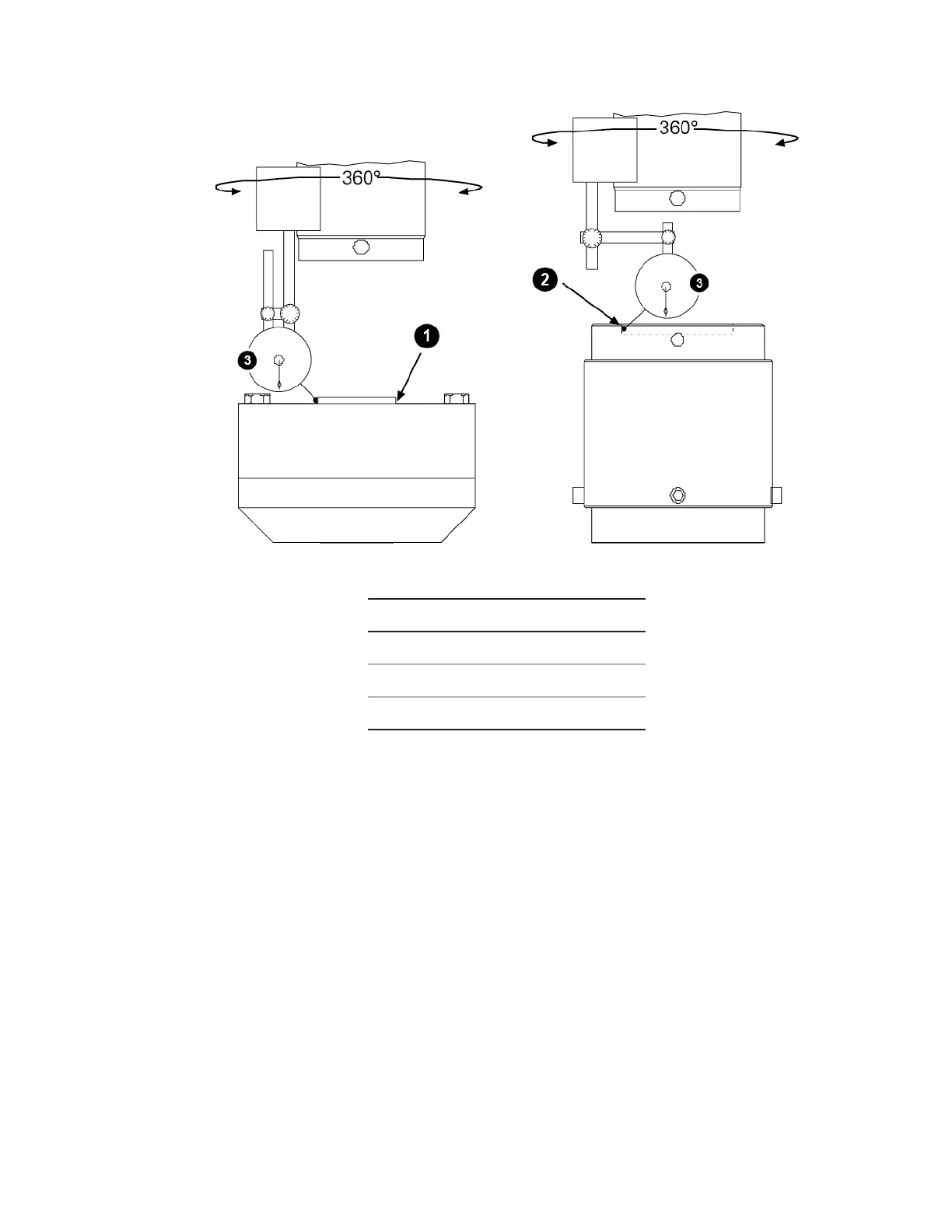

Item Description
1 Read along the outside edge.
2 Read along the inside edge.
3 Zero
Attach and Zero the Indicator
A. Attach the dial indicator to the actuator.
On a low profile force transducer, adjust the indicator to take the reading along the
edge of the loading surface.
On cylindrical style force transducers, adjust the indicator so that its stylus just
touches the inside edge of the pilot.
Zero the dial indicator.
B. Slowly turn the actuator to rotate the indicator 360° around the force transducer.
Stop frequently to take dial indicator readings. Keep your hands off the actuator and
indicator when taking the readings. Recording the TIR readings maps the direction
the transducer is off center.
