Introduction

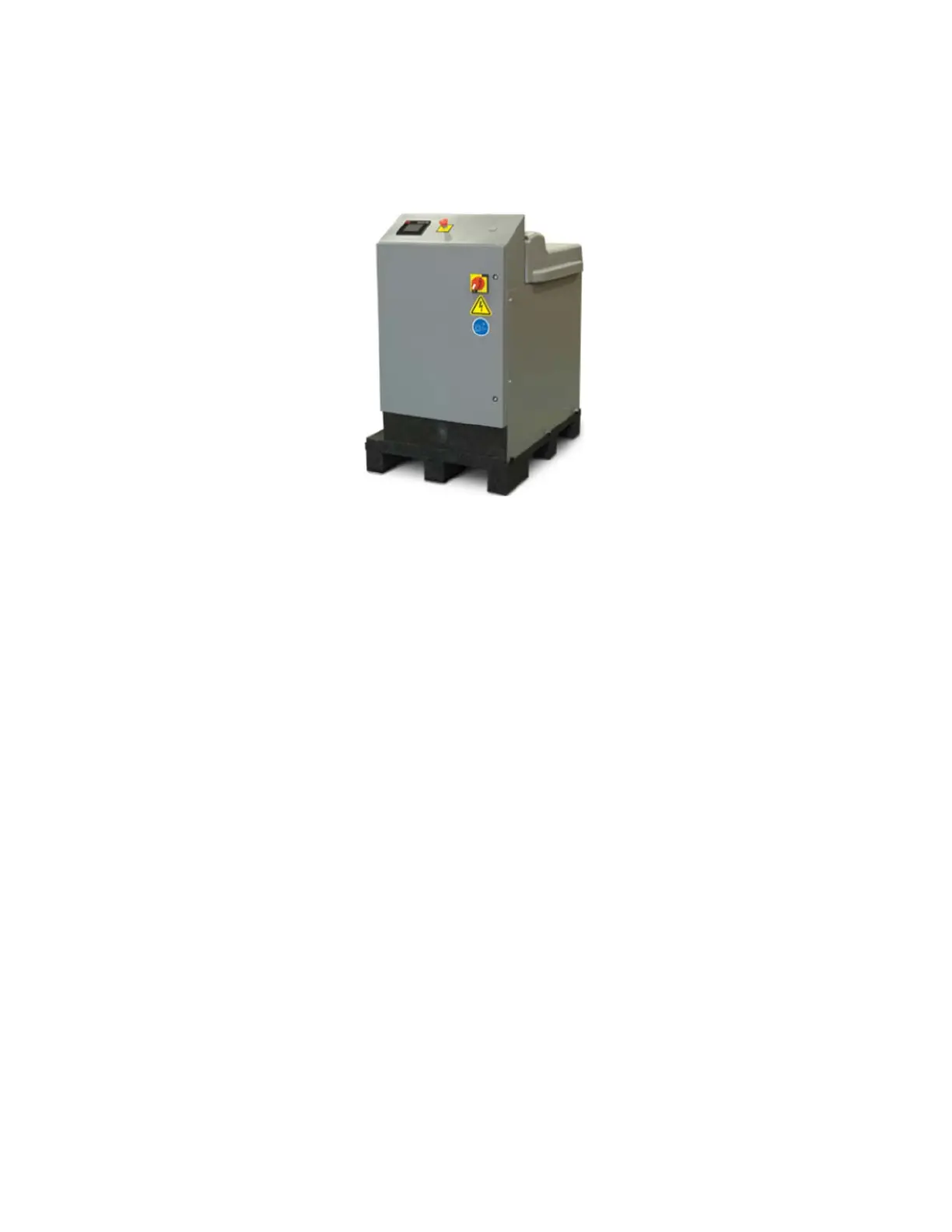

14 Series 505G2 SilentFlo™ Hydraulic Power Unit
Overview
The MTS Model 505.07 Hydraulic Power Unit (HPU) and Model 505.11 HPU provide high-pressure
hydraulic fluid for test system operation. This section contains general information about the HPU.
EU Declarations
EC Declaration of Conformity (Machinery Directive 2006/42/EC Annex II 1A)
If applicable, a Declaration of Conformity is supplied with the machinery; an example of the Declaration
of Conformity is provided at the end of this manual.
Intended Use
The intended use of the Hydraulic Power Unit (HPU) is:
l Hydraulic supply for servohydraulic testing systems.
l Power supply for other hydraulically operated machinery, presses, or test systems.
Product Information CD
A Product Information CD is supplied with the HPU (MTS part number 100-227-354). The Product
Information CD includes the electrical and hydraulic schematics along with the configuration drawings.
The Product Information CD also contains the product specifications and other reference documents
to aid MTS qualified service personnel. These documents include:
