MTS Systems Temposonics R V Series - Setting Output Value for Set Point One (Start); Setting Output Value for Set Point Two (End)

Temposonics
®
R-Series V Analog
Operation Manual
I 30 I

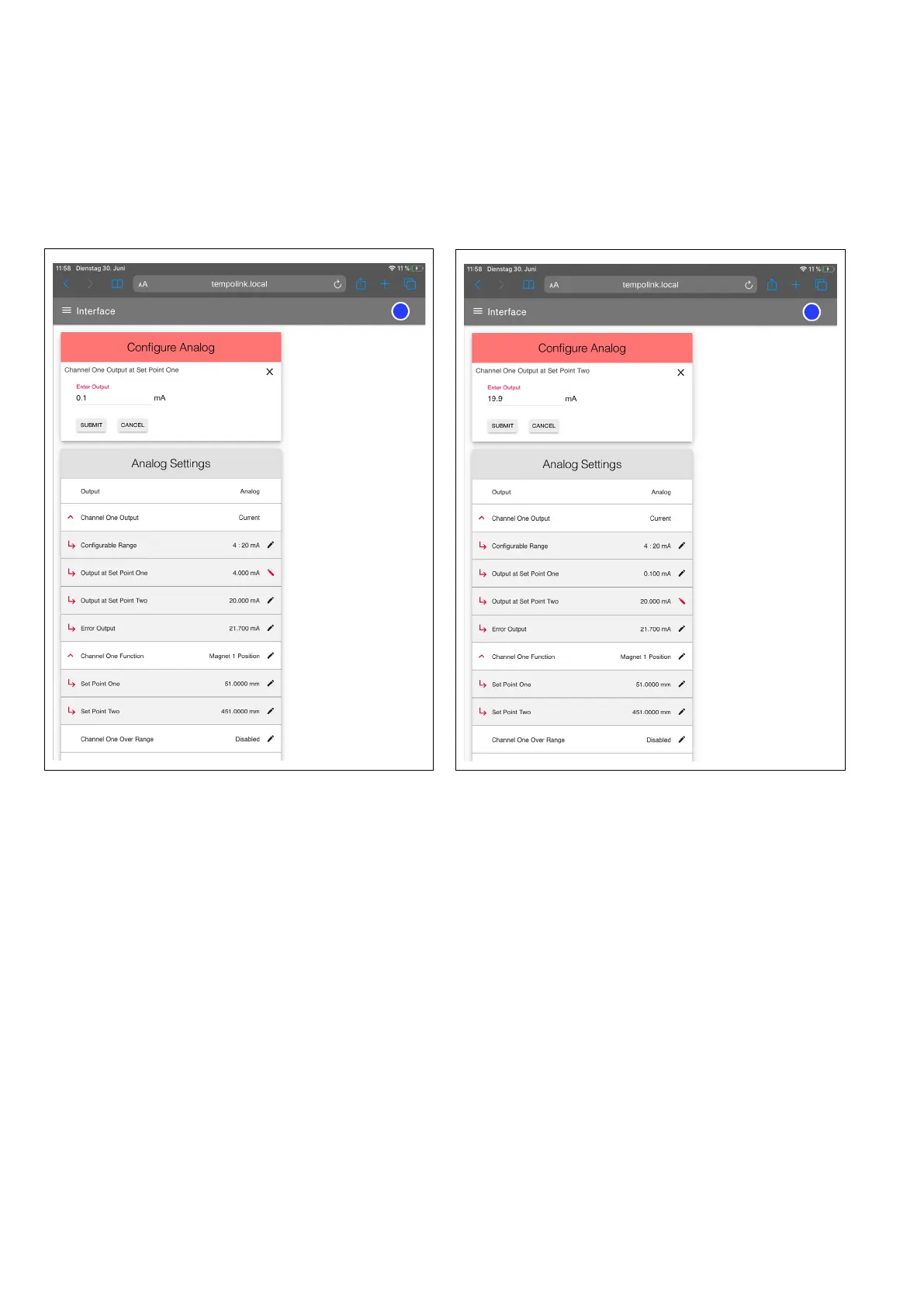

Fig. 44: Adjusting the output value for set point one Fig. 45: Adjusting the output value for set point two
5. The next setting is for output at set point one (start of stroke).
For this example, the new value is 0.1 mA, as shown in the drop-
down box. Confirm your changes by clicking the SUBMIT button.
6. The next setting is for output at set point two (end of stroke).
The new value entered in the drop-down box is 19.9 mA.
Confirm your changes by clicking the SUBMIT button.
