7.10.2 Air filter – Removal and installation
Preconditions
☑Engine is stopped and starting disabled.

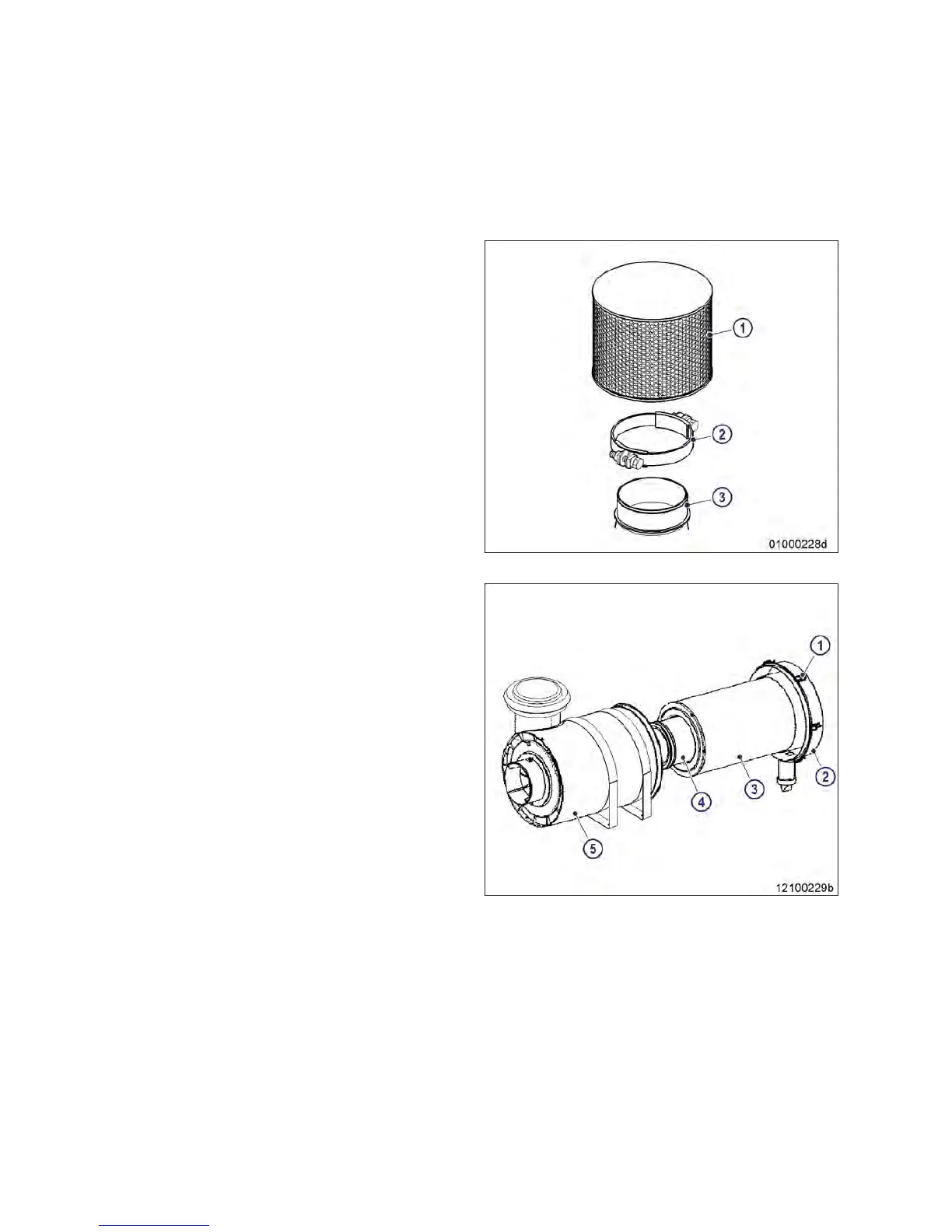

Variant A
1.
Loosen clamp (2).
2. Remove air filter (1) and clamp (2) from
connecting flange of intake housing (3).
3. Verify that there are no objects in the
flange of the intake housing (3) and clean
it.
4. Fit air filter (1) and clamp (2) on connecting
flange of intake housing (3).
5. Tighten clamp (2).
Variant B
1.
Release latches (1).
2. Take off cover (2).
3. Remove filter insert (3) and filter ele-
ment (4).
4. Wipe out filter housing (5) and cover (2)
with moist cloth.
5. Insert new filter element (4) and filter in-
sert (3).
6. For installation, follow reverse sequence of
working steps.
106 | Task Description | MS15018/02E 2013-09
