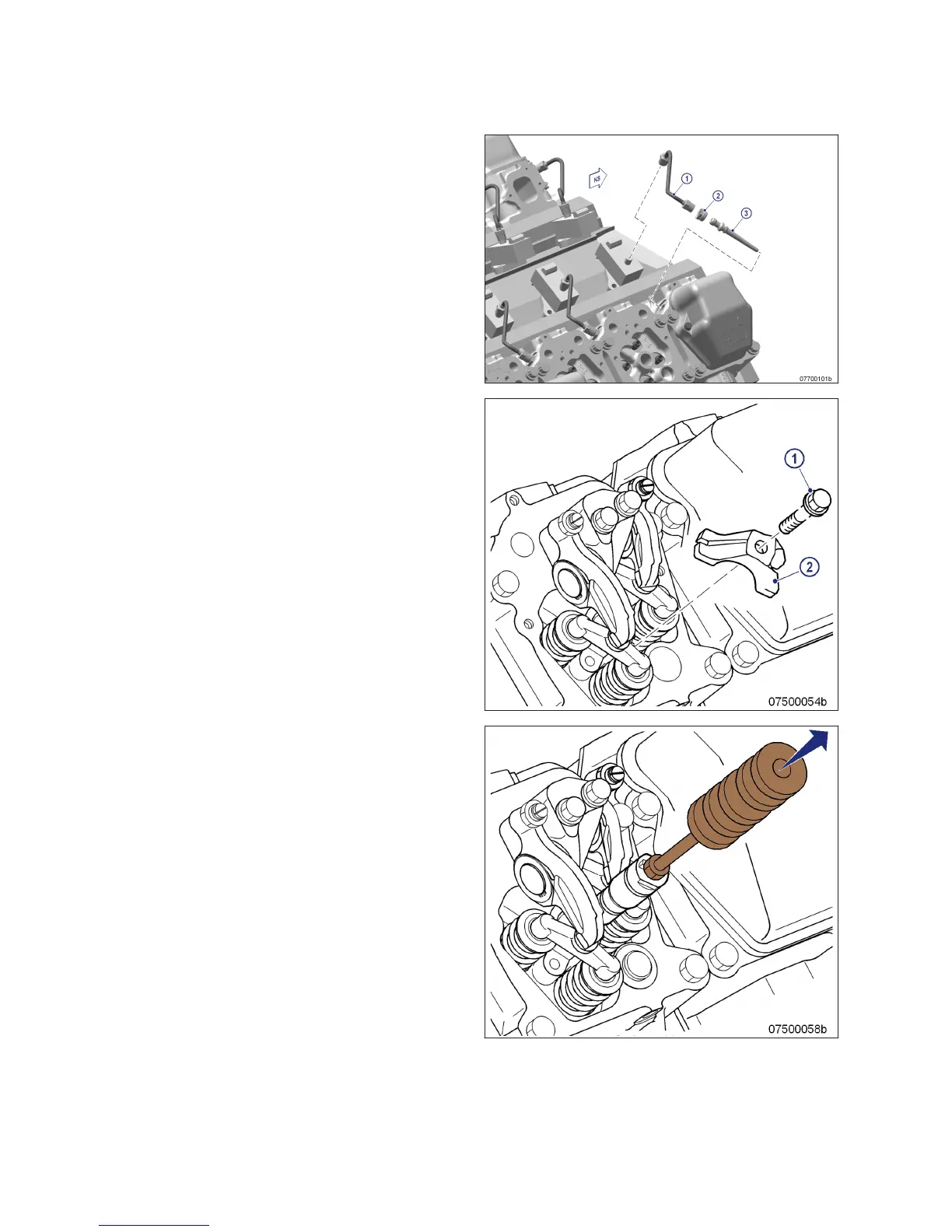

Removing injector
1. Disconnect leak-off fuel line from cylinder
head.
2. Disconnect fuel line (1).
3. Remove thrust screw (2).
4. Pull off pressure pipe neck (3).
5. Extract fuel from the exposed bores using the
suction device.
6. Remove sealing ring from pressure pipe
neck (3).
7. Remove screw (1).
8. Take off clamp (2).
9. Screw puller into injector.
10. Remove injector with puller.
90 | Injection Valve / Injector | MS15018/03E 2016-02
TIM-ID: 0000000023 - 005
