MTU 12V2000M91 - Exhaust Flap with Actuator

8.13 Exhaust Flap with Actuator
8.13.1 Exhaust flap – Check ease of movement
Preconditions
☑ Engine is stopped and starting disabled.
Checking exhaust flap for ease
of movement

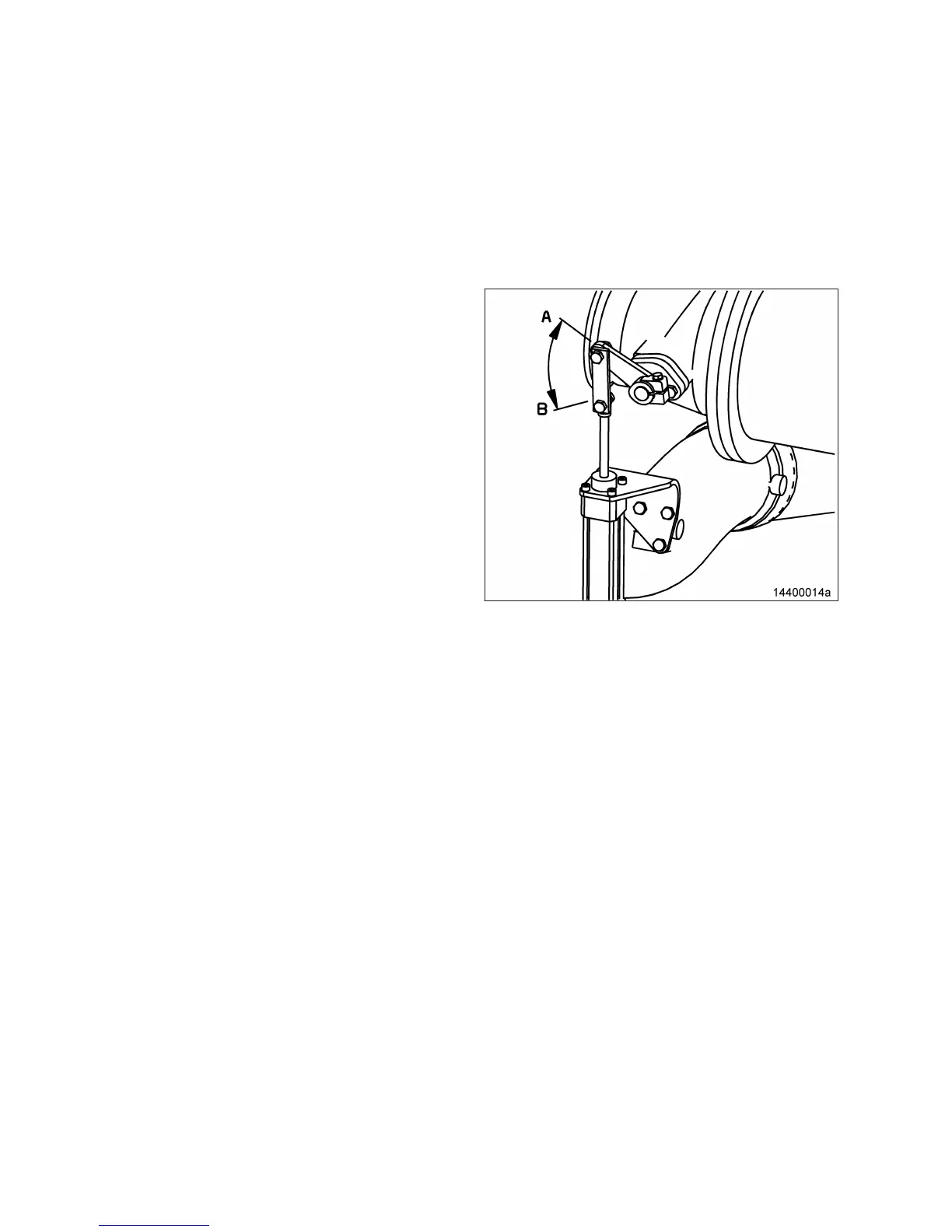

1. Repeatedly shift linkage and actuating cylin-
der between “A” and “B” positions by hand
and check ease of movement.
2. Contact Service if the mechanism does not
move easily.
