8 Task Description
8.1 Engine
8.1.1 Engine – Barring manually
Preconditions
☑ Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Ratchet
F30006212 1
Socket
F30005655 1
DANGER
Rotating and moving engine parts.
Risk of crushing, danger of parts of the body being caught or pulled in!
• Before barring the engine, make sure that there are no persons in the engine's danger zone.
• After finishing work on the engine, make sure that all safety devices are put back in place and all
tools are removed from the engine.

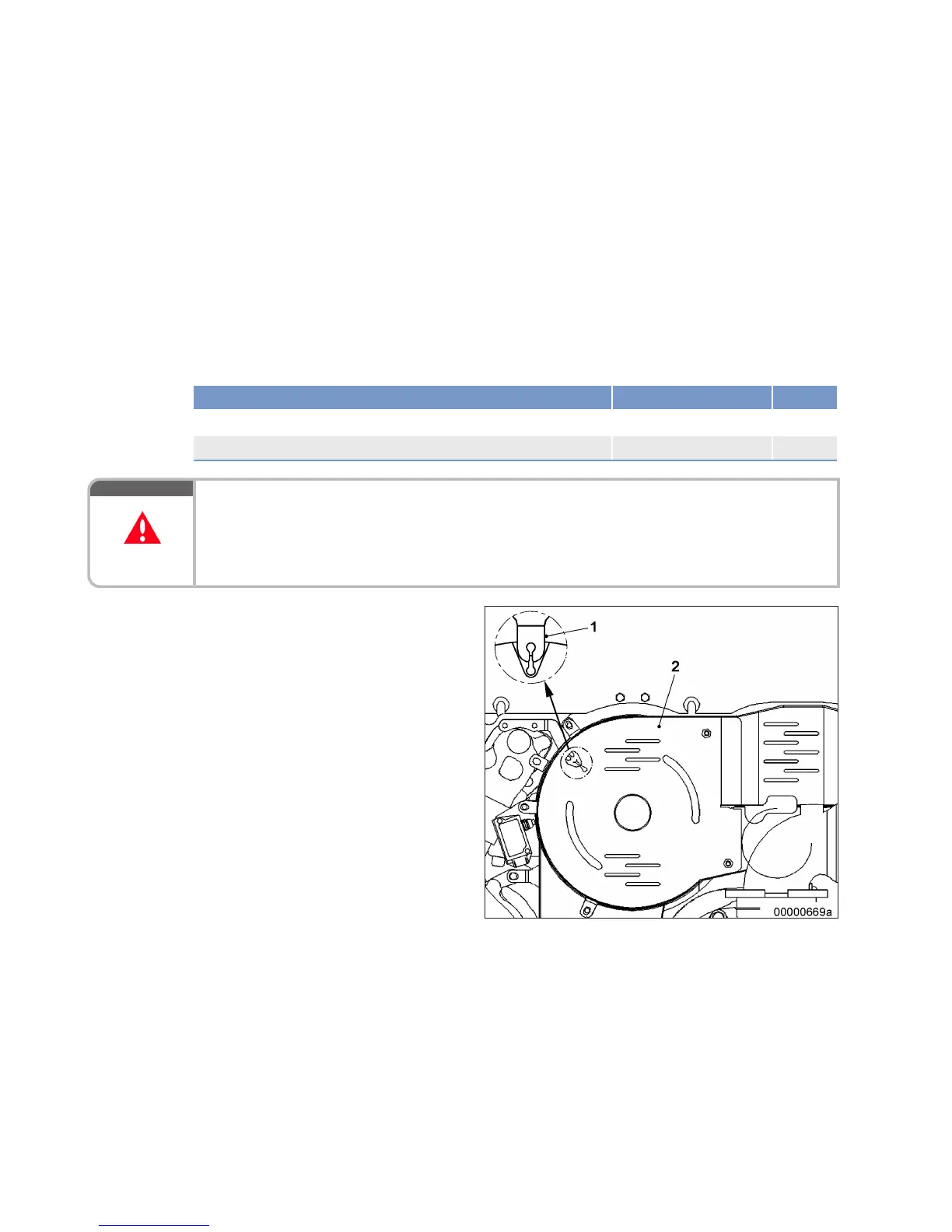

Barring engine manually
1. Remove cover plate (2).
2. Attach ratchet with socket to barring tool.
3. Rotate crankshaft in engine direction of rota-
tion. No resistance other than compression
resistance may be encountered.
Result: Contact Service, if the resistance exceeds
the normal compression resistance.
4. For barring tool removal follow reverse se-
quence of working steps.
64 | Task Description | MW15409/04E 2015-08
TIM-ID: 0000002525 - 005
