Cleaning centrifugal oil filter
and replacing filter sleeve

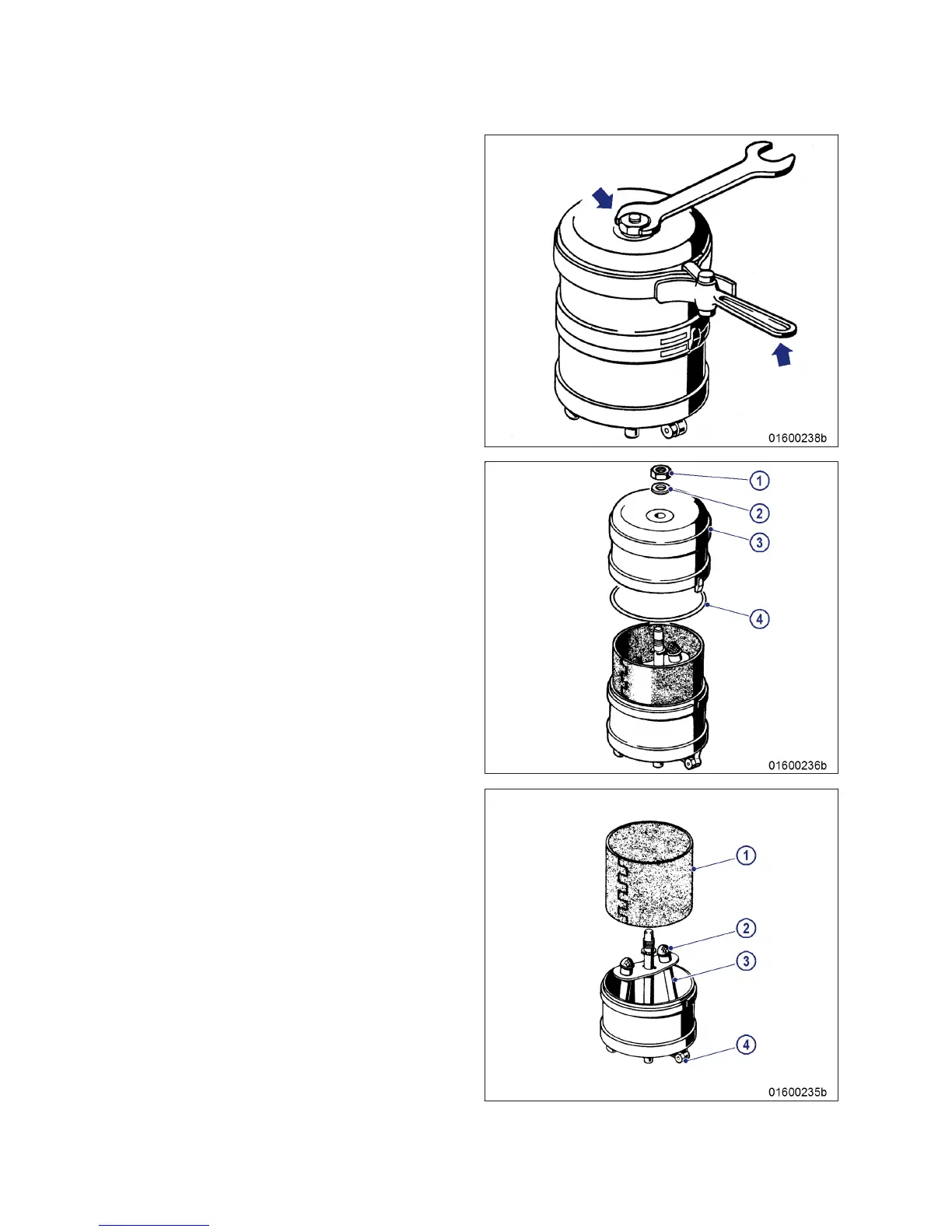

1. Remove nut, holding the rotor with an oil fil-
ter wrench.
2. Remove nut (1), washer (2), rotor cap (3) and
O-ring (4).
3. Remove filter sleeve (1).
4. Measure the layer thickness of the oil resi-
due.
5. If maximum layer thickness (25 mm) is ex-
ceeded, shorten maintenance interval.
6. Clean rotor components and remove strain-
ers (2).
7. Wash standpipes (3) and nozzles (4) with
cleaner, blow out with compressed air.
8. Insert the new filter sleeve with the smooth
surface facing the rotor cap.
