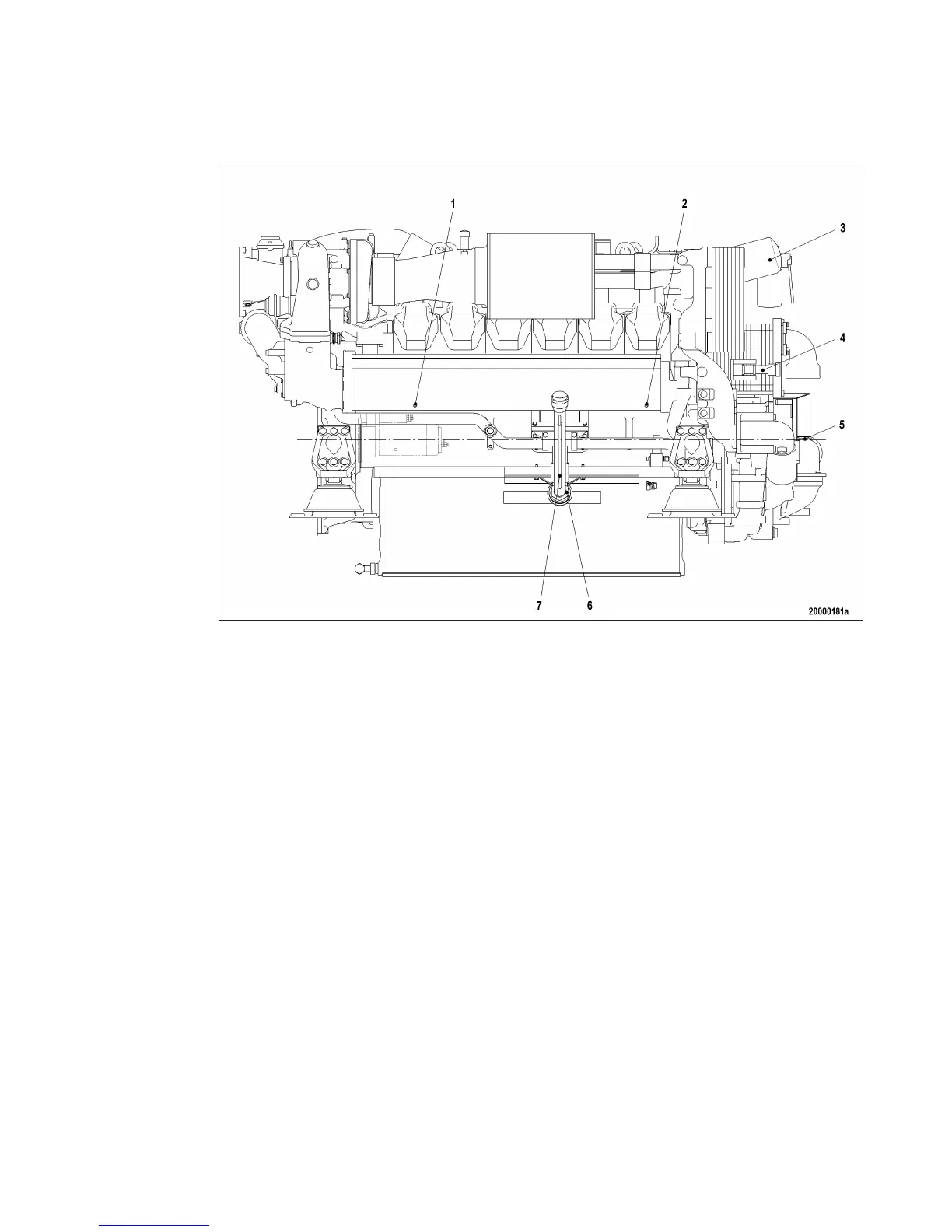

Right side
1 Engine coolant drain plug
2 Engine coolant drain plug
3 Engine oil filter
4 Fuel priming pump
5 Raw water pump filling plug
6 Oil filler neck (connection
left or right engine side op-
tional)
7 Oil dipstick (connection left
or right engine side option-
al)
4 Leak-fuel tank
MW15409/04E 2015-08 | Task Description | 127
TIM-ID: 0000006697 - 003
