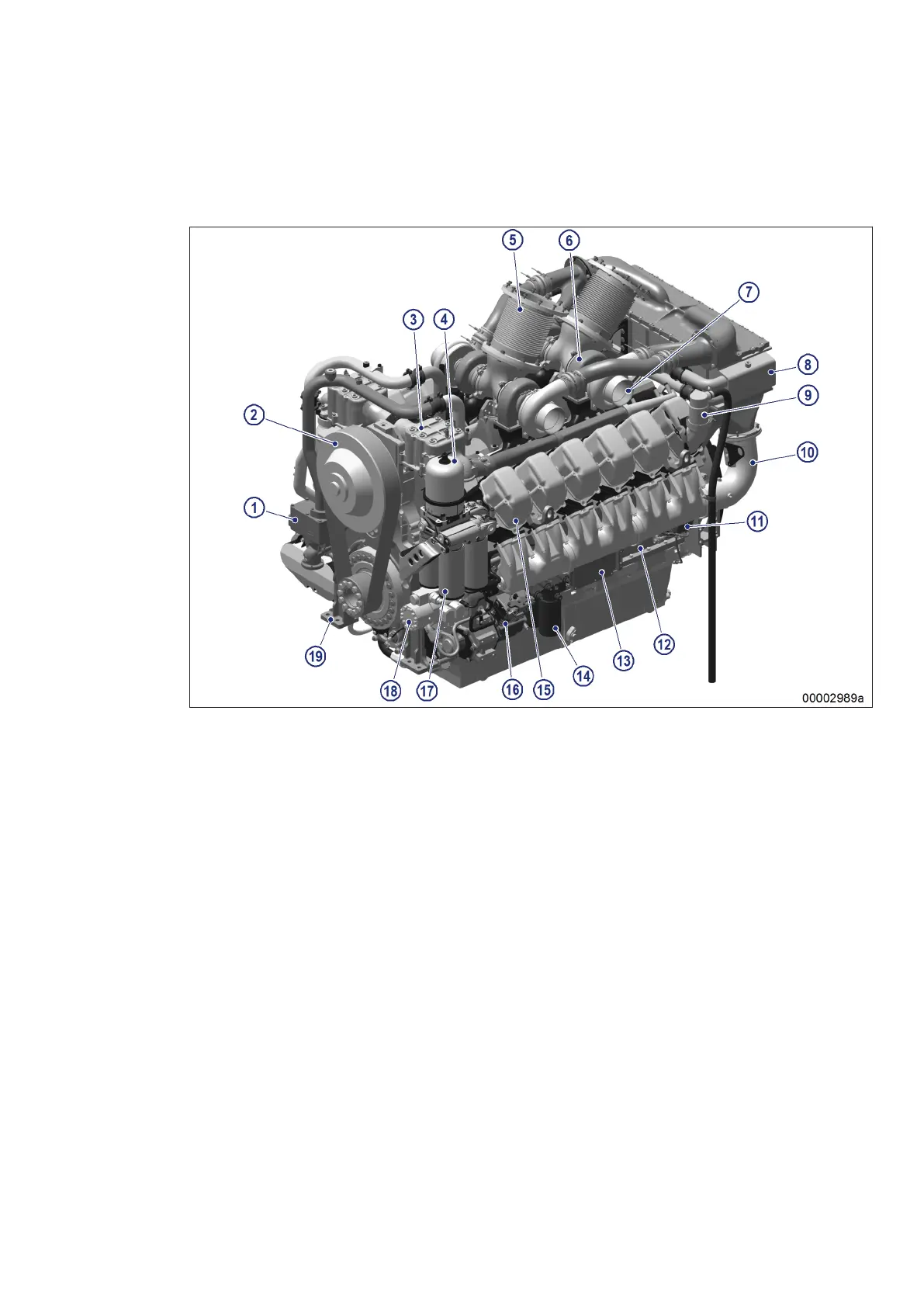

3.2 Engine – Overview
Image also applies to 16V4000Cxyz
1 Intercooler thermostat
2 Fan coupling
3 Engine oil heat exchanger
4 Centrifugal oil filter
5 Exhaust pipe bellows
6 Turbocharger
7 Combustion-air inlet
8 Intercooler
9 Crankcase breather
10 Charge-air line
11 Electric starter
12 Crankcase
13 Engine governor
14 Easy-change fuel filter
15 Cylinder head
16 Air conditioning compressor
drive
17 Oil filter
18 HP fuel pump
19 Engine mounting
MS150049/04E 2017-04 | General Information | 25
TIM-ID: 0000002071 - 004
