8.1.2 Engine – Cranking on starting system
DANGER
Rotating/moving engine parts.
Risk of crushing, danger of body parts being caught up or drawn in!
• Ensure that all personnel is clear of the danger zone before cranking the engine on the starter.
Cranking engine on starting sys-
tem

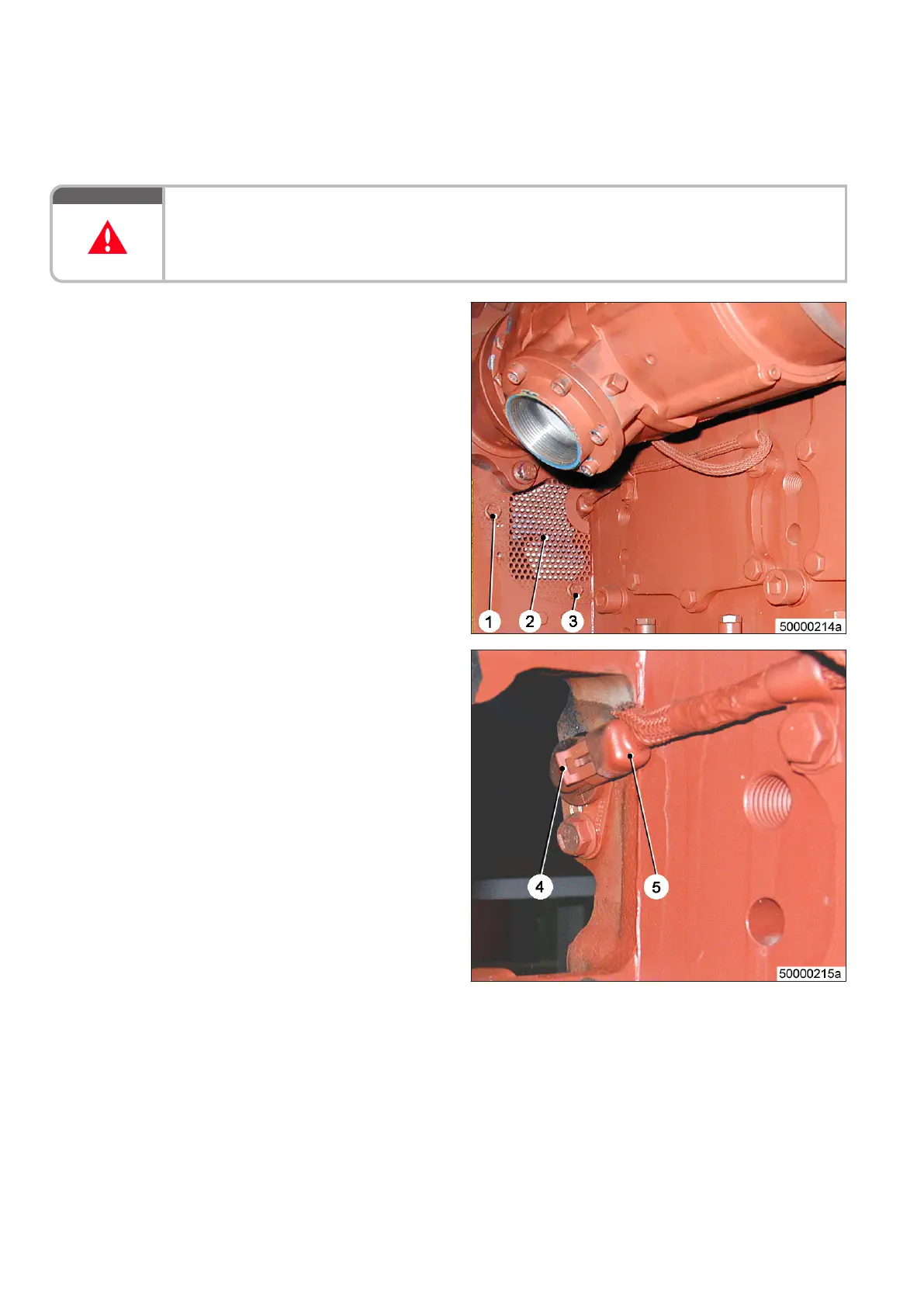

1. Remove screws (1, 3) and take off perforated
plate (2).
2. Disconnect connector (5) from crank angle
sensor for injection timing of any cylinder
(→ Page 27). For this purpose, unlock
latch (4).
3. Crank engine in unloaded state: Press START
pushbutton.
Note: Interrupt engine start after maximum ten sec-
onds for thirty seconds to prevent starter
from overheating.
4. Let the crankshaft rotate until oil pressure is
indicated.
Note: Contact Service if no oil pressure is indicated
after three start cycles.
5. Slide connector (5) until lock (4) latches into
position.
6. Fit perforated plate (2) and secure with two
screws (1, 3).
76 | Engine | MS150049/04E 2017-04
